M26 Camera Manual: Product Overview
Note
Note on fastening cables leading into the camera:
Cables passing in to the back of the camera (patch cable
for the network connection and for Mini USB) are secured
using a special cable retainer with bayonet catch.
When replacing this cable, ensure that the cable is prop
-
erly seated in the port and that the retainer with the blue
bayonet catch is locked (short clockwise turn until it clicks
into place).
Removing the Cable Retainer
Rotate the bayonet catch anti-clockwise to the “open circle” symbol (see gure). The catch
may be removed from the side. The cable can now be pulled out of the camera.

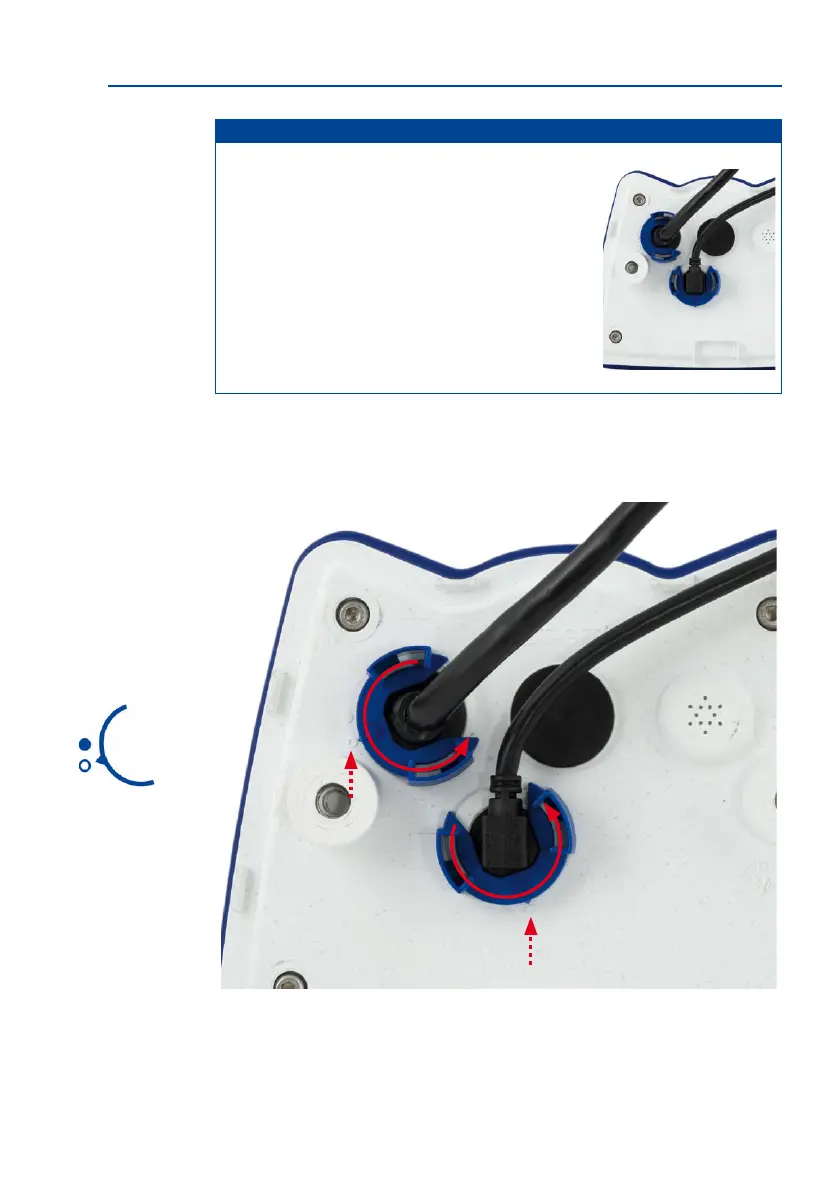

Open the cable retainer by
rotating the bayonet catch
to the marked position
Bayonet catch
open
