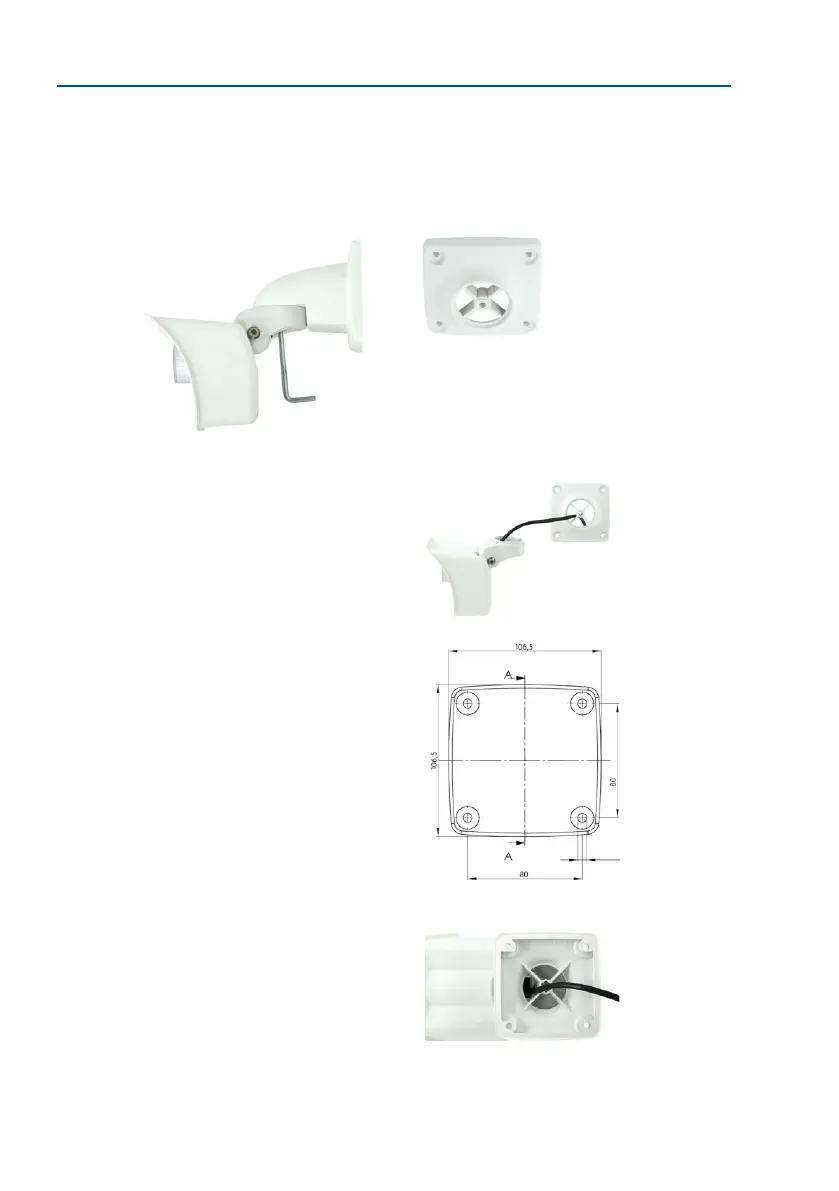

Mounting the Camera with Ceiling Mount*
Procedure
1.
Convert to ceiling mount: Simply remove the lock screw on the central joint and exchange
the wall mount for the supplied ceiling mount. Before fastening the ceiling mount to
the central joint (using the screw of the wall mount), the patch cable is guided through
one of the four openings.
2. Install and prepare the network connection: Guide
the pre-installed camera patch cable through one
of the four openings in the ceiling mount. This will
be connected later with the network cable using
a suitable adapter, for example, in a pre-installed
cavity socket.
3.
Drill the holes: Use the drilling template for the cam-
era (available from www.mobotix.com, Support >
Download Center > Documentation > Drilling
Templates). Drill the holes for the supplied screw
anchors. Screw anchors do not have to be tted if
the surface is made of wood. To secure the mount,
the supplied stainless steel hex head screws will
later be screwed directly into the surface. In order
to facilitate screwing in wood, the positions should
rst be predrilled using a 2 mm drill bit, for example
(drilling depth just slightly less than screw length).
4. Attach ceiling seal: Place the white rubber seal with
the groove on the edge of the ceiling mount.
No screw anchors are
required in wooden surfaces
