M26 Camera Manual: Installation
Procedure

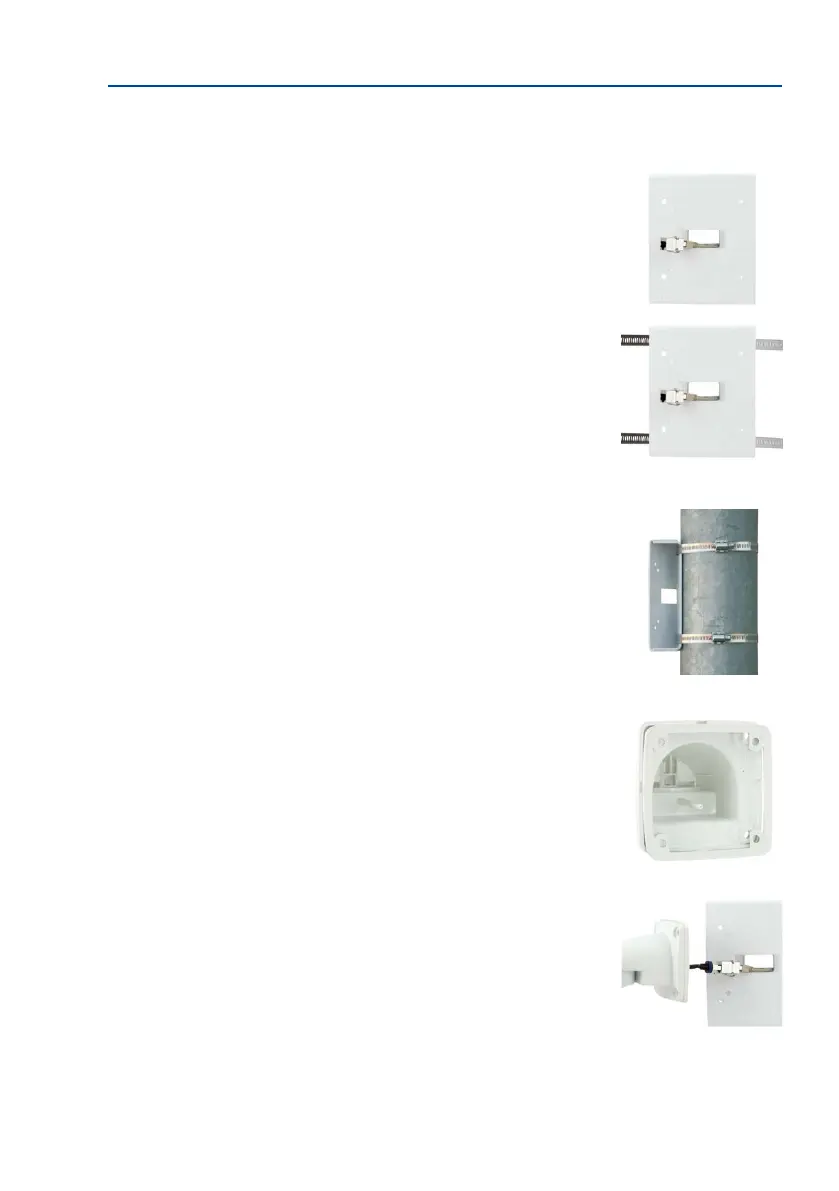

1. Prepare the cable: Guide the on-site network cable from
behind through the middle opening of the pole mount.
Ideally, the cable should be guided directly from the pole
into the cavity socket of the VarioFlex Wall Mount, where it is
connected with the camera patch cable via an adapter (e.g.,
the MX-Overvoltage-Protection-Box) to conceal the cabling.
2. Prepare the straps: Guide the two stainless steel straps
through the pole mount. The pole must have a diameter
between 60 mm and 180 mm.
3. Attach pole mount: Place the straps around the pole and
tighten them using the screwdriver. If required, clip the
ends of the stainless steel straps.
4. Apply rubber seal: Place the white rubber seal with the
groove on the edge of the wall mount.
5. Connect the cable: Connect the on-site network cable
to the camera patch cable using an adapter or insert
the patch cable into the RJ45 outlet. When using a
MX-Overvoltage-Protection-Box, follow the installation
instructions supplied with the product. You can download
the PDF le from the MOBOTIX website www.mobotix.com
in the Support > Download Center > Documentation >
Manuals section. Make sure that the cables are not bent
or squashed.
