B CLASSIC / B FUTURA / S CLASSIC - TECHNICAL MANUAL

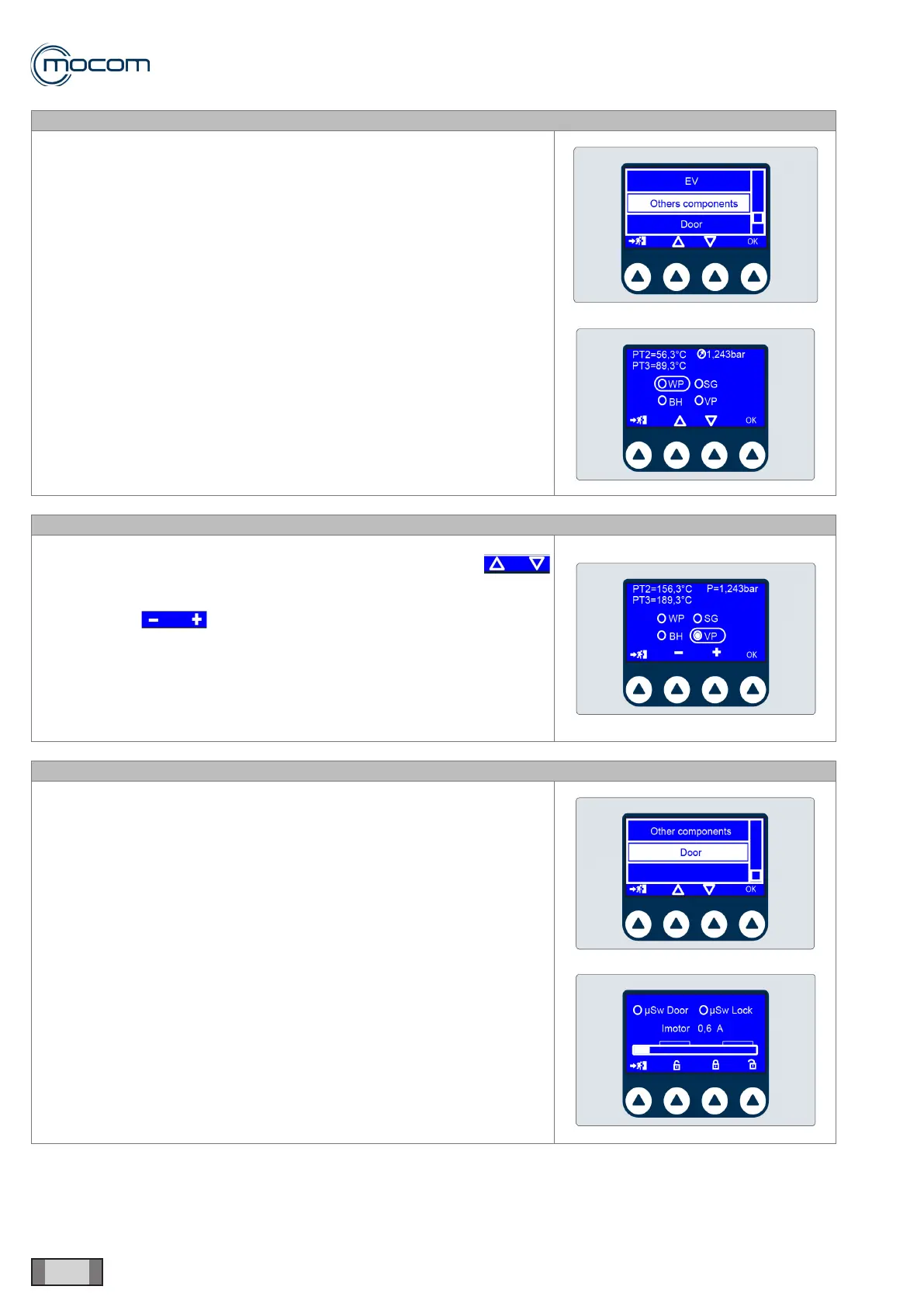

SERVICE MENU
SQ8
Select the OTHER COMPONENTS menu and press OK to conrm.
The screen shows the following components:
- BH – chamber tube bundle heating element
- SG – generator heating element
- VP – vacuum pump
- WP – water injection pump/EV6
The following values are also displayed:
- PT2 – steam generator temperature
- PT3 – chamber tube bundle heating element temperature
- chamber pressure
SQ9
From the OTHER COMPONENTS menu, you can establish the state of
individual components, which may selected using the commands
and pressing OK to conrm you selection.
After the desired function has been conrmed, it can turned on/off using
the commands .
The BH-tube bundle heating element activating is indicated by value PT3-
tube bundle heating element temperature increasing.
The SG-generator heating element activating is indicated by value PT2-
steam generator temperature increasing.
A safety timeout is provided for the BH and SG functions, so that the
relevant component is turned off after 120”.
SQ10
Select the DOOR menu and press OK to conrm.
The following indicators are displayed:
- μSw Door – manual door closing microswitch
- μSw Lock – door lock enable microswitch
- I motor – motor current draw
During the door closing and locking phases, the variations in parameter I
motor are shown by the digital bar at the bottom of the DOOR screen.
