TECHNICAL MANUAL - B CLASSIC / B FUTURA / S CLASSIC
SERVICE MENU

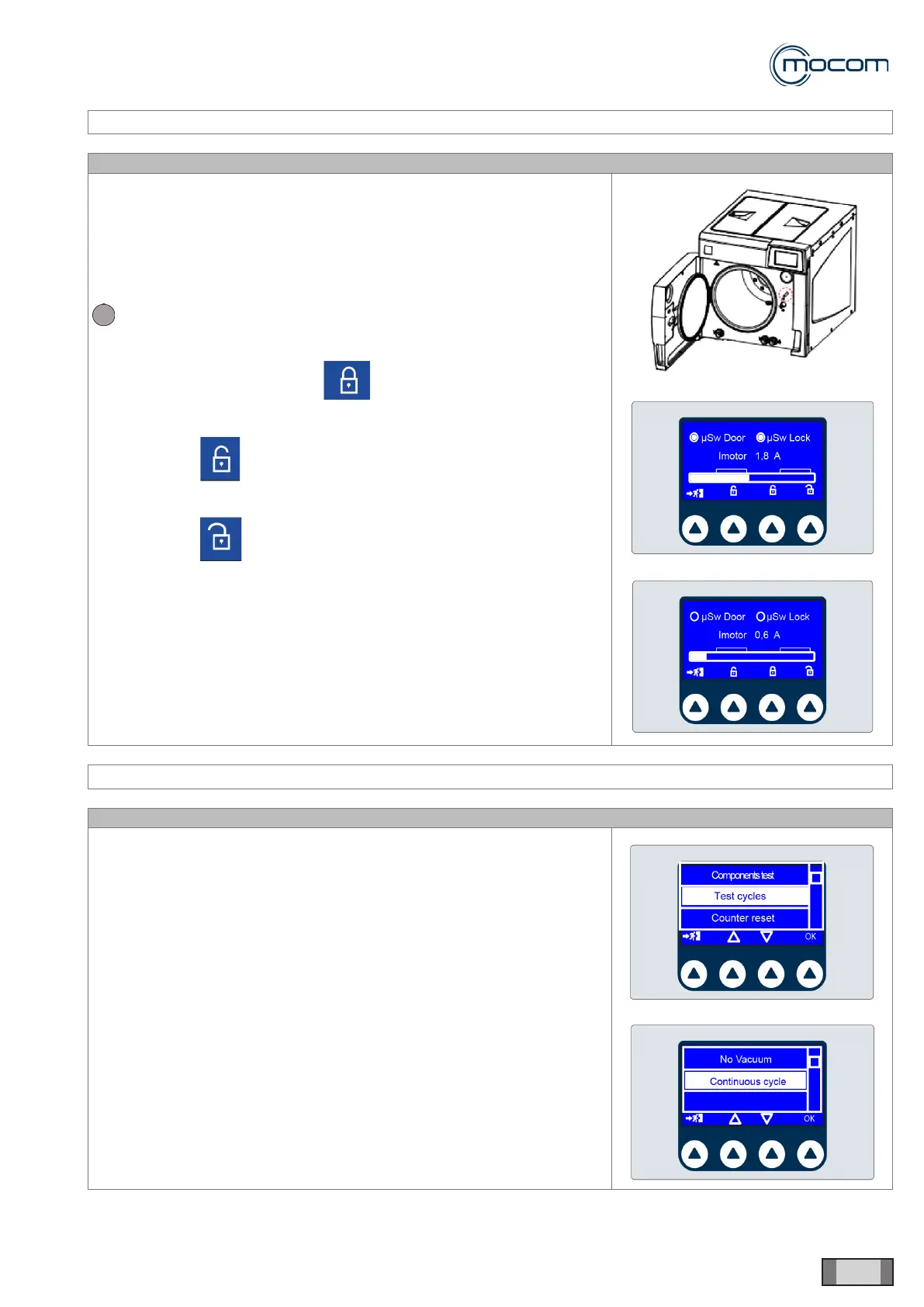

COMPONENT TEST – FUNCTIONAL CHECKS – DOOR
SQ21 - CHECK FOR DOOR MICROSWITCH ACTIVATION
From the DOOR menu, manually press the operating pin of the manual
door closing microswitch, and conrm that the μSw door indicator is
activated.
Close the door and conrm that μSw door and μSw lock indicators are
activated.
The indication for both microswitches is as follows:
microswitch closed/enable active
After closing, the I motor indicator should read 1.4/1.8 A.
Activate door lock with command .
After locking, the I motor indicator should read 3.4/3.8 A.
With command , you can unlock the door and bring it into closed
position while keeping both microswitches activated.
With command , you can open the door and release both
microswitches.
With the door open, μSw door and μSw lock must be de-activated and
indicator I motor = 0.5A.
SERVICE MENU – TEST CYCLES
SQ22
Selecting TEST CYCLES displays a vertical scroll menu with the following
options:
- No vacuum
- Continuous cycle
