Mocom SUPREME 17 - Technical Sheet ST02 - Manifold

Sterilizers SUPREME - FUTURA - CLASSIC (17-22-28)
- TECHNICAL MANUAL
110
TECHNICAL SHEETS
EN

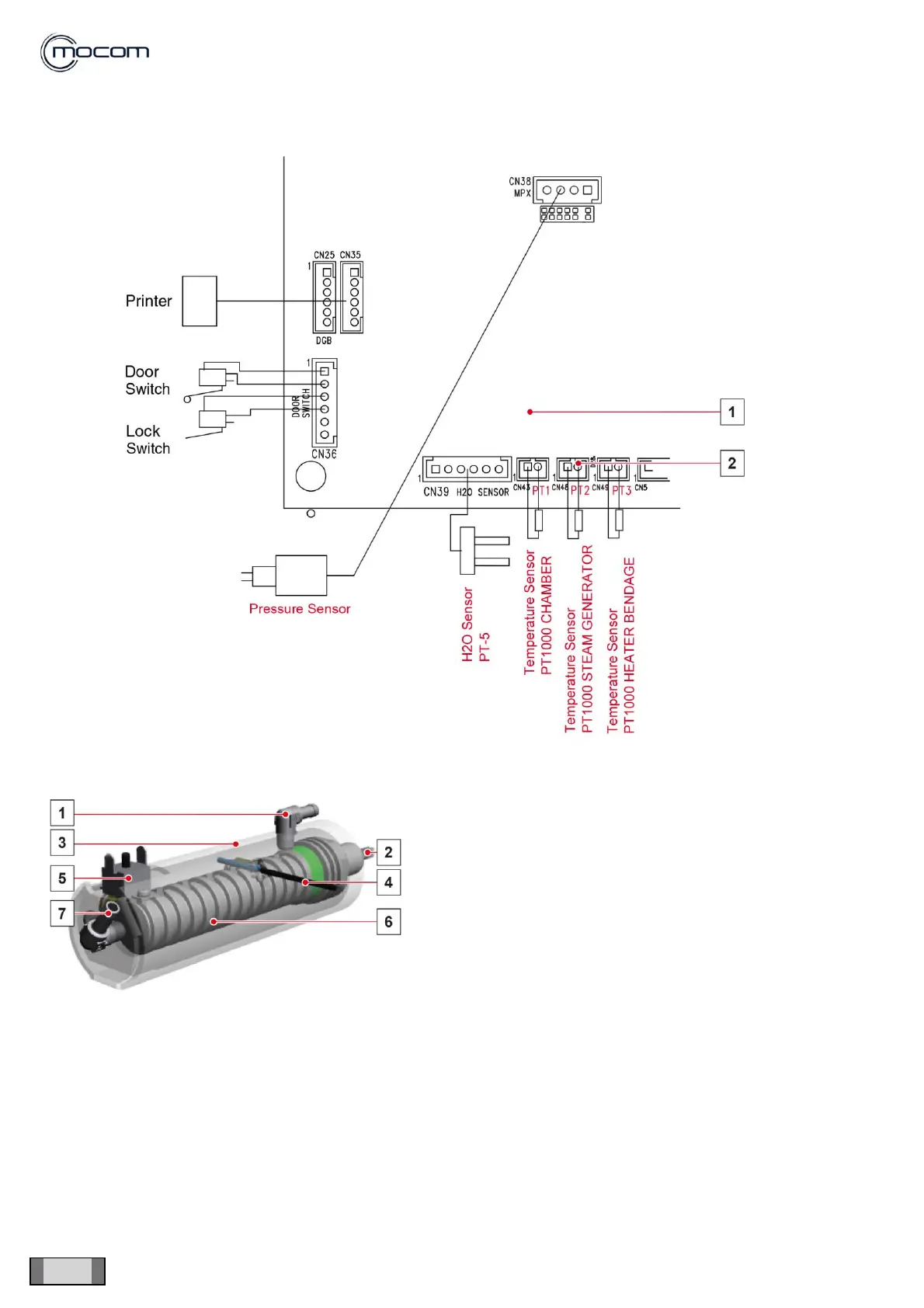

PT2 PROBE TO GENERAL CARD CONNECTION
1 PCB
2 PT2 wiring connection
1 Water inlet
2 Heating element
3 Cylindrical outer body
4 PT2 probe
5 Safety thermostat
6 Inner core
7 Steam outlet
