Mocom SUPREME 17 - 2 nd Vacuum Phase

Sterilizers SUPREME - FUTURA - CLASSIC (17-22-28)
- TECHNICAL MANUAL
22
FUNCTIONING
EN

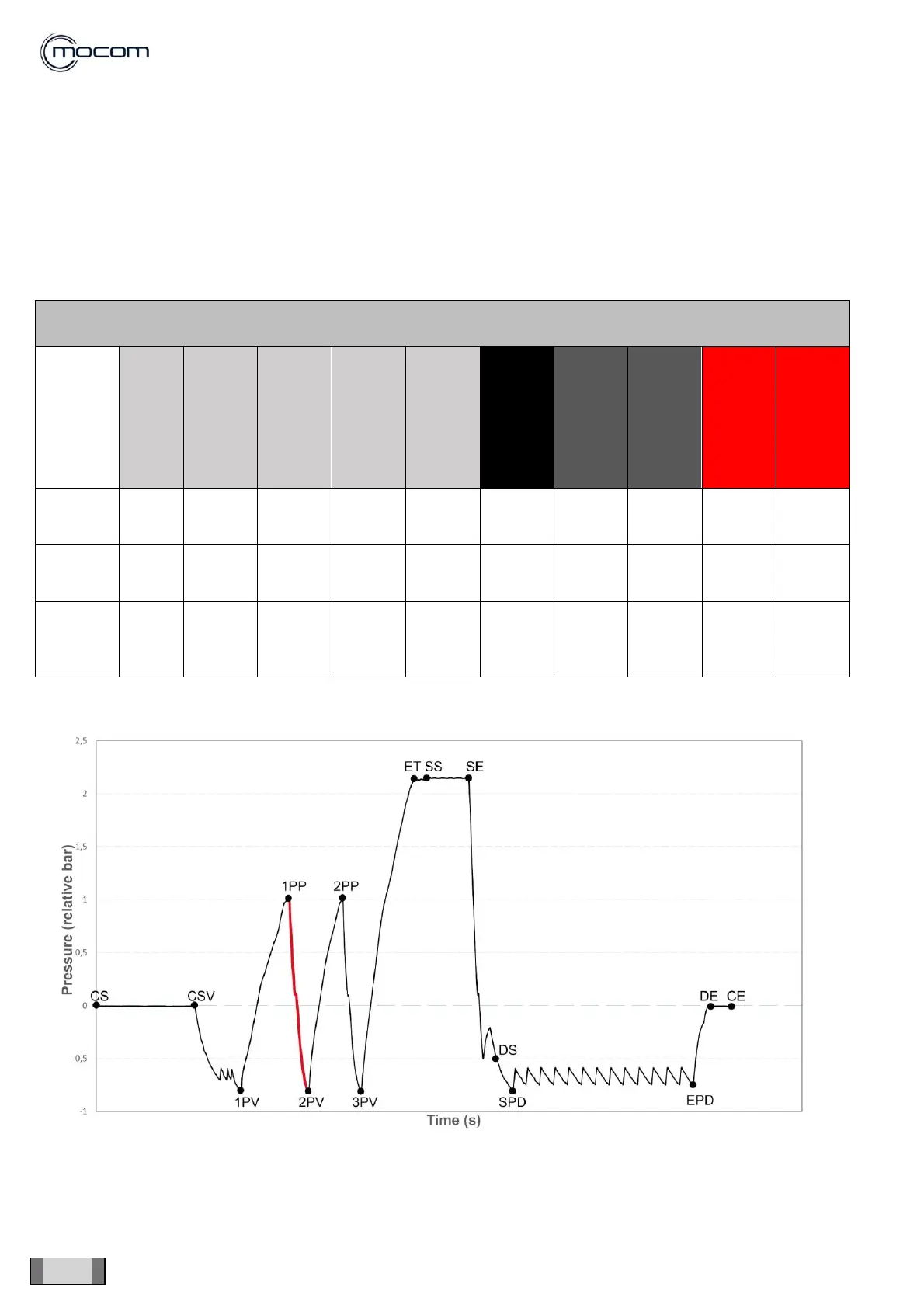

4.5. 2nd VACUUM PHASE
This phase of the cycle allows the chamber pressure to drop below the value of 1.00 bar reached during the 1
st
PRESSURE RISE, by discharging steam through solenoid valve EV1 and draining condensate through the solenoid
valve EV3 connected to the chamber filter.
When the value of 0.10 bar is reached, with the activation of solenoid valve EV4, the pressure continues dropping
until reaching the value of - 0.80, by means of the vacuum pump, already activated at the beginning of the 2
nd
VACUUM PHASE.
In order to make it easier to reach the value of - 0.80 bar, also solenoid valve EV2 is activated for 5”.
2
st
VACUUM PHASE - component activation status
STATUS
EV1
High
drain
(N.O.)
EV2
Air inlet
(N.C.)
EV3
Low drain
(N.C.)
EV4
Drain
deflector
(3V)
EV5
Chamber
air inlet
(N.C.)
FAN
WATER
PUMP
- EV6
VACUUM
PUMP
CHAMBER TUBE
BUNDLE
HEATING ELEMENT
GENERATOR
HEATING ELEMENT
Direct
steam
drainage
Off
open
Off
closed
Off
closed
Off (2)
Off
closed
ON
OFF
ON
ON
ON
Direct
condensate
drain
On
closed
Off
closed
On
open
Off (2)
Off
closed
ON
OFF
ON
ON
ON
Decrease
from 0.10
to - 0.80
bar
On
closed
On
open
On
open
On (1)
Off
closed
ON
OFF
ON
ON
ON
134° C B Cycle - 4’00’’
