Sterilizers SUPREME - FUTURA - CLASSIC (17-22-28)
- TECHNICAL MANUAL
For EV4 only, proceed as follows:
- disconnect the power wiring (2 wires) from the coil (note down the colours before disconnecting them)
- remove the locking clamp to disconnect the pipe fixed to the upper fitting
- unscrew the upper pipe holder fitting complete with intermediate fitting
- unscrew the coil retaining nut and slide it out from the slider-holder unit
- using the hexagonal wrench, unscrew the slider-holder unit
WARNING:
do not act on the cylindrical body of the slider-holder unit.
For the reassembly, follow the operations described in reverse order. Use a new stainless steel clamp.

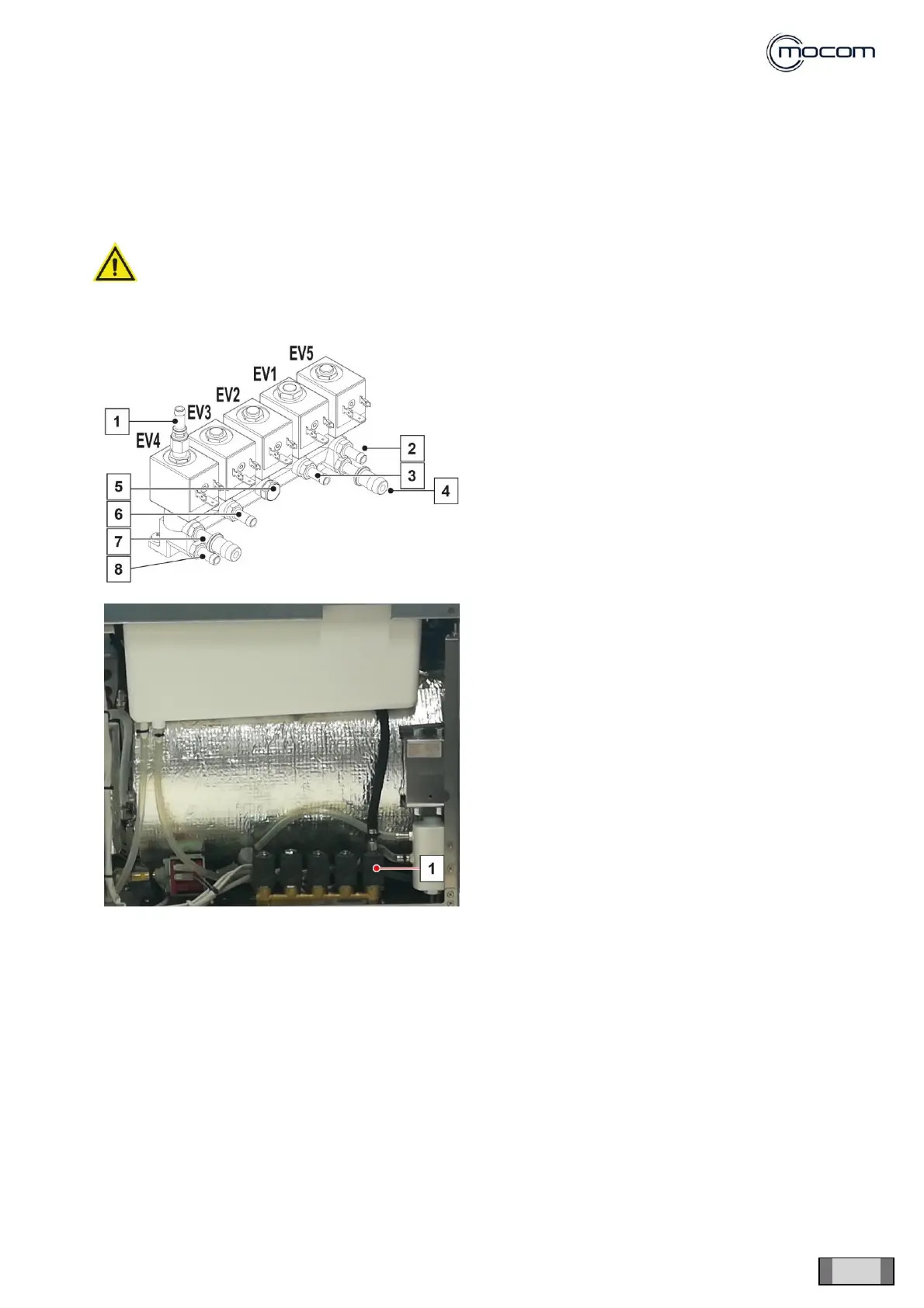

1 EV4 - discharge towards used water tank
2 EV5 - bacteriological filter inlet air
3 EV1 / EV3 - outlet towards heat exchanger
4 EV1 - steam drainage inlet - upper outlet
EV1 – bal. air outlet Chamber pressure from
EV5/bacteriological filter
5 Air Inlet
6 EV3 - chamber discharge inlet - chamber filter
7 EV4 - capacitor steam inlet from heat exchanger
8 EV4 - outlet towards vacuum pump
