POWER CONNECTIONS
Wiring Safety
WARNING
AT INSTALLATION, BE SURE TO COMPLY WITH THE FOLLOWING REQUIREMENTS:
• Disconnect power to the unit before attempting any connection or service to the unit.
• Do not bundle or route signal lines with power lines.
• Keep all lines as short as possible.
• Use twisted pair shielded wire for all output wiring.
• Observe all applicable local electrical codes.
AVERTISSEMENT
LORS DE L'INSTALLATION, ASSUREZVOUS DE RESPECTER LES EXIGENCES SUIVANTES :
• Débranchez l'appareil avant d'essayer toute connexion ou tout service à l'appareil.
• Ne par regrouper ou acheminer les lignes de signaux aux lignes électriques.
• Gardez toutes les lignes aussi courtes que possible.
• Utilisez un câble blindé à paire torsadée pour tout le câblage de sortie.
• Respectez tous les codes locaux applicables en matière d'électricité.

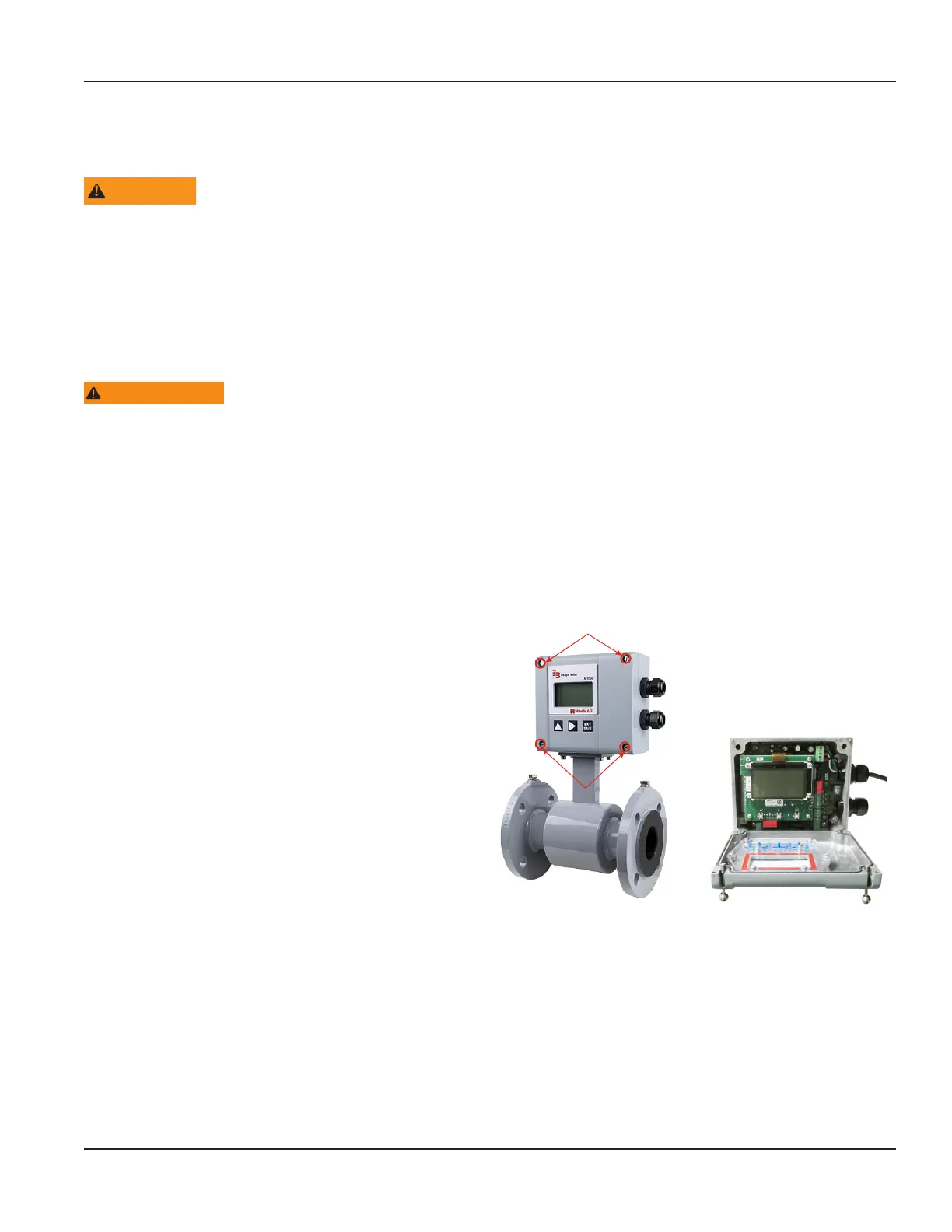

Opening the M1000 Cover
The M1000 amplifier design lets you open the cover
without completely removing it.
Follow these steps:
1. Completely remove the top two screws from the
amplier using a blade/slotted screwdriver.
2. Loosen both of the bottom screws so that the round
head of each screw clears the top face of the cover.
3. Pull down the cover to the open position.
• For the 2 × M20 cable inlets, use only flexible
electriccables.
• Use separate cable inlets for auxiliary power, signal and
input/output cables.
Top screws
Bottom screws
Figure 23: Remove two screws Figure 24: Open the cover
Power Connections
Page 17 March 2020 MAG-UM-00379-EN-07
