ModMAG M1000 - Signal Cable Specification; Cable Requirements and Length; Cable Length vs. Temperature Graph

Signal Cable Specication
OTE: N Only use signal cables delivered by Badger Meter or corresponding cable in accordance with the
followingspecification. Take maximum signal cable length between detector and amplifier into account (keep
distance as low as possible).
Distance With electrode idle Loop resistance
0…164 ft (0…50 m) 3 × (2 × 0.25 mm²) =< 160 Ω/km
PVC cable with pair and total shield
Capacity: wire/wire < 120 nF/km, wire/shield < 160 nF/km
Temperature range –22…158° F (–30…70° C)
white (45)
brown (46
)
pink (40
)
black (44
)
black (44
)
yellow (12
)
green (11
)
(5 . . . 50 m)
green
(11)
yellow
(12)
p
ink (40)
white (45)
brown
(46)
black
(44)
black
(44)
yellow/
green (13) yellow/green (13
)
16…164 ft

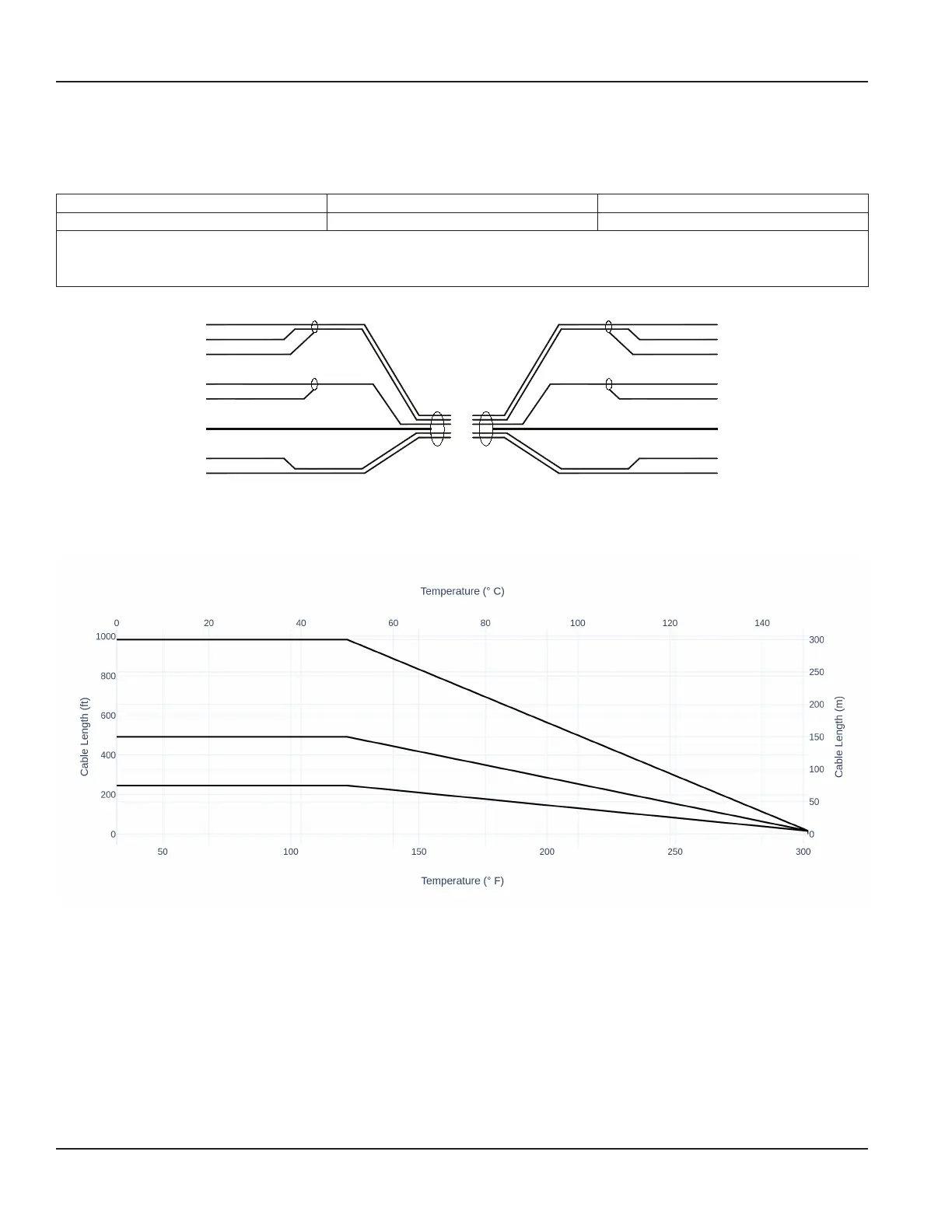

Figure 27: Signal cable specification
Maximum Cable Length at Dierent Fluid Temperatures
