ModMAG M1000 - Detector Type III Specifications (Wafer); Wafer Connection Type III Specs; Wafer Connection Dimensions

Detector Type III Specications
Size 1…4 in. (DN 25…100)
Process Connections Sandwich connection, (intermediate flange mounting)
Nominal Pressure 580 psi (40 bar)
Protective Class IP 67, IP 68 optional
Minimum Conductivity 5 μS/cm(20 μS/cm demineralized water)
Liner PTFE –40…302° F (–40…150° C)
Electrodes
Hastelloy C (Standard)
Tantalum
Platinum/Gold platinized
Platinum/Rhodium
Body Steel/stainless steel optional
Grounding Rings Stainless steel
Overall Length
1…2 in. (DN 25…50) 3.94 in. (100 mm)
2-1/2…4 in. (DN 65…100) 5.91 in. (150 mm)

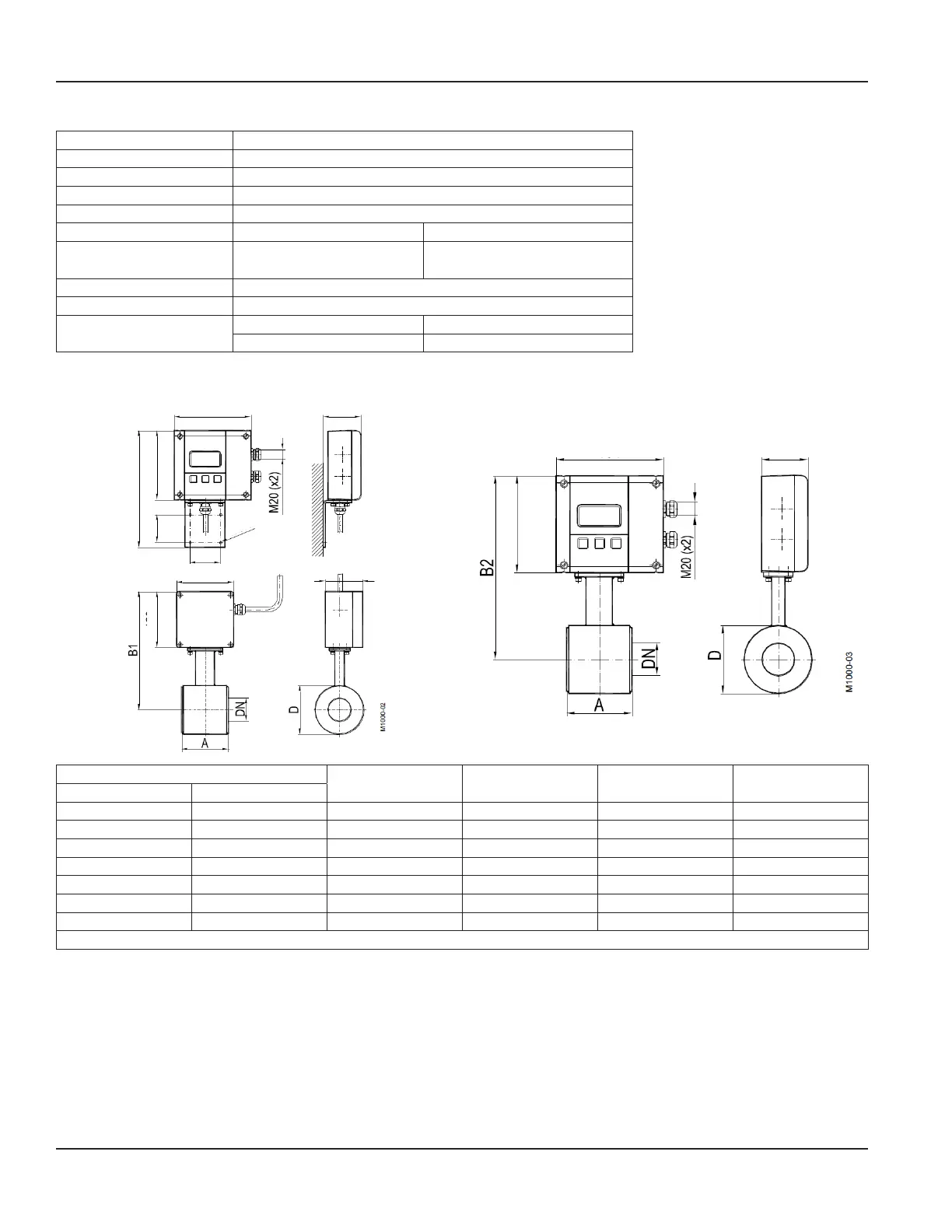

Process Connection Wafer Remote Version
in. (mm)
Process Connection Wafer Mounted Version
in. (mm)
6.47 (164)
3.15 (80)
3.15 (80)
2.56 (65)
4.80 (122)
0.21 (5.2)
9.80 (249)
5.83 (148)
2.36 (60)
4.72 (120)
6.47 (164)
2.78 (70.5)
5.83 (148)
Size
A
in. (mm)
B1
in. (mm)
B2
in. (mm)
D
in. (mm)
Inches DN
1 in. 25 3.94 (100) 9.37 (238) 10.47 (266) 2.91 (74)
1-1/4 in. 32 3.94 (100) 9.57 (243) 10.67 (271) 3.31 (84)
1-1/2 in. 40 3.94 (100) 9.76 (248) 10.87 (276) 3.70 (94)
2 in. 50 3.94 (100) 9.96 (253) 11.06 (281) 4.09 (104)
2-1/2 in. 65 5.91 (150) 10.47 (266) 11.57 (294) 5.08 (129)
3 in. 80 5.91 (150) 10.67 (271) 11.77 (299) 5.51 (140)
4 in. 100 5.91 (150) 10.98 (279) 12.09 (307) 6.14 (156)
Nominal Pressure 580 psi (40 bar)
