SPECIFICATIONS
OTE: N DN represents nominal diameter in mm.
Detector Type II Specications
Size 1/4…20 in. (DN 6…500)
Process Connections Flange: DIN, ANSI, JIS, AWWA etc.
Nominal Pressure Up to 1450 psi (100 bar) (PED)
Protection Class IP 67, IP 68 optional
Minimum Conductivity 5 μS/cm(20 μS/cm demineralized water)
Liners
Hard/soft rubber 1 in. (DN 25) and up 32…176° F (0…80° C)
PFA 1/4…3/8 in. (DN6…10) –40…302° F (–40…150° C)
PTFE 1/2…20 in. (DN 15…500) –40…302° F (–40…150° C)
Electrodes
Hastelloy C (Standard)
Tantalum
Platinum/Gold platinized
Platinum/Rhodium
Body Steel/stainless steel optional
Grounding Rings Stainless steel

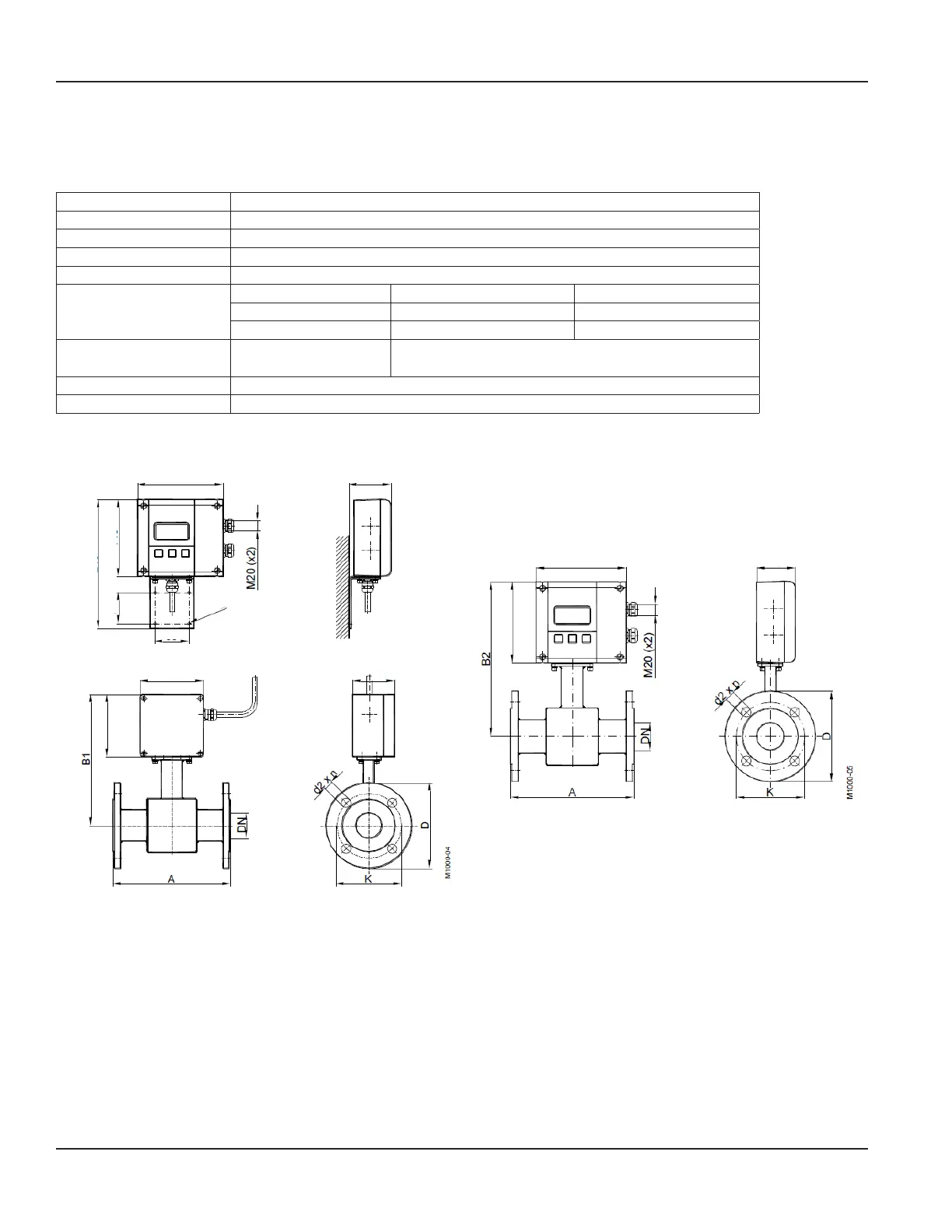

Process Connection Flange Remote Version
in. (mm)
Process Connection Flange Mounted Version
in. (mm)
6.47 (164) 3.15 (80)
3.15 (80)
2.56 (65)
4.80 (122)
0.21 (5.2)
9.80 (249)
5.83 (148)
2.36 (60)
4.72 (120)
6.47 (164)
2.78 (70.5)
5.83 (148)
