Detector Type Food Specications

Size 3/8…4 in. (DN 10…100)

Process Connections Tri-Clamp®, DIN 11851, ISO2852, BS4825 and customer specified.

Nominal Pressure

Tri-Clamp connection 145 psi (10 bar)

DIN 11851 connection 230 psi (16 bar)

Protection Class IP 67, IP 68 optional

Minimum Conductivity 5 μS/cm(20 μS/cm demineralized water)

Liners PTFE –40…302° F (–40…150° C)

Electrodes

Hastelloy C (Standard) Platinum/Gold Platinized

Tantalum Platinum/Rhodium

Body Stainless steel

Overall Length

Tri-Clamp connection

3/8…2 in. (DN 10…50) 5.71 in. (145 mm)

2-1/2…4 in. (DN 65…100) 7.87 in. (200 mm)

DIN 11851 connection

3/8…3/4 in. (DN 10…20) 6.69 in. (170 mm)

1…2 in. (DN 25…50) 8.86 in. (225 mm)

2-1/2…4 in. (DN 65…100) 11.02 in. (280 mm)

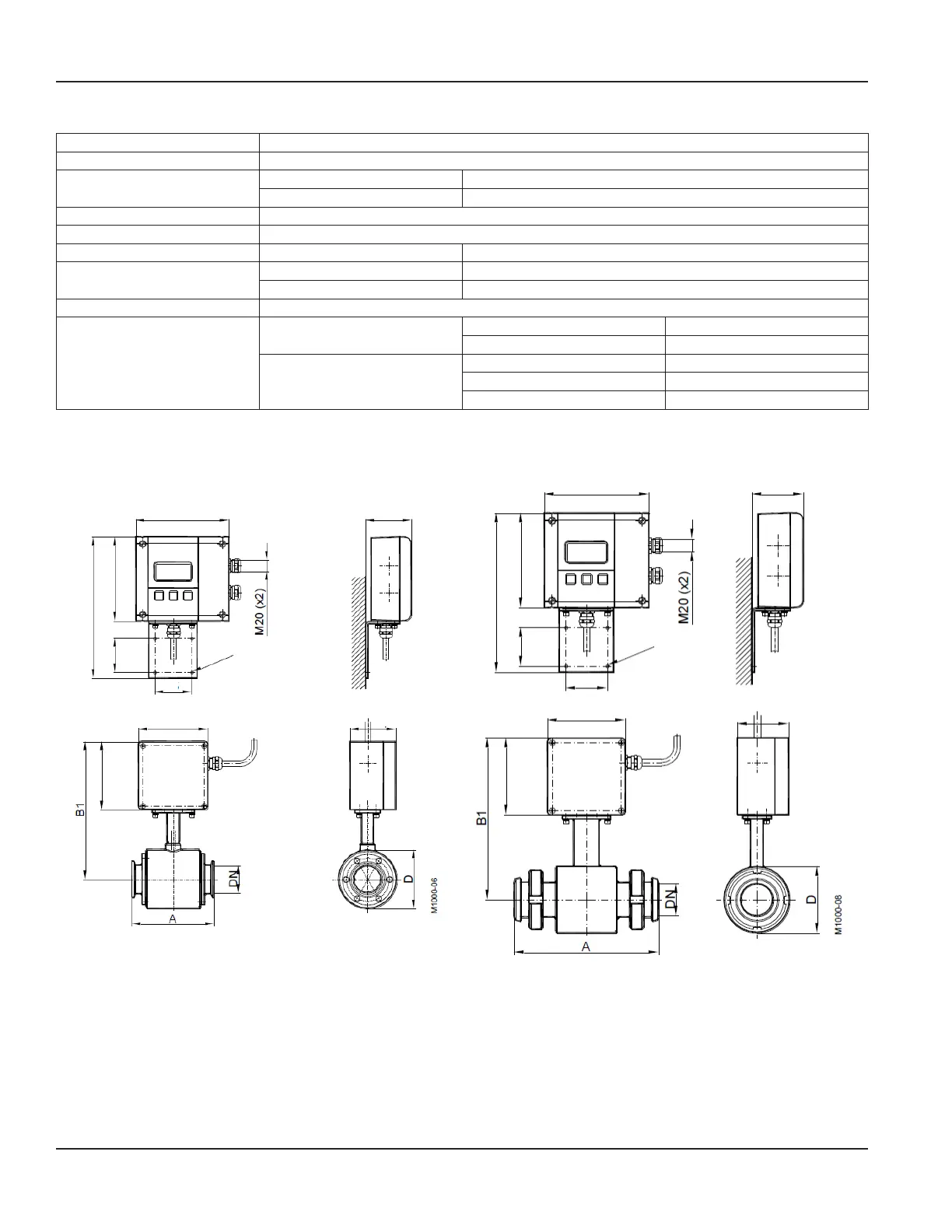

Process Connection Tri-Clamp Remote Version

in. (mm)

Process Connection DIN 11851 Remote Version

in. (mm)

6.47 (164)

3.15 (80)

2.56 (65)

4.80 (122)

0.21 (5.2)

9.80 (249)

5.83 (148)

2.36 (60)

4.72 (120)
