REPLACING METER ELECTRONICS
WARNING
DISCONNECT AUXILIARY POWER BEFORE OPENING BODY COVER.

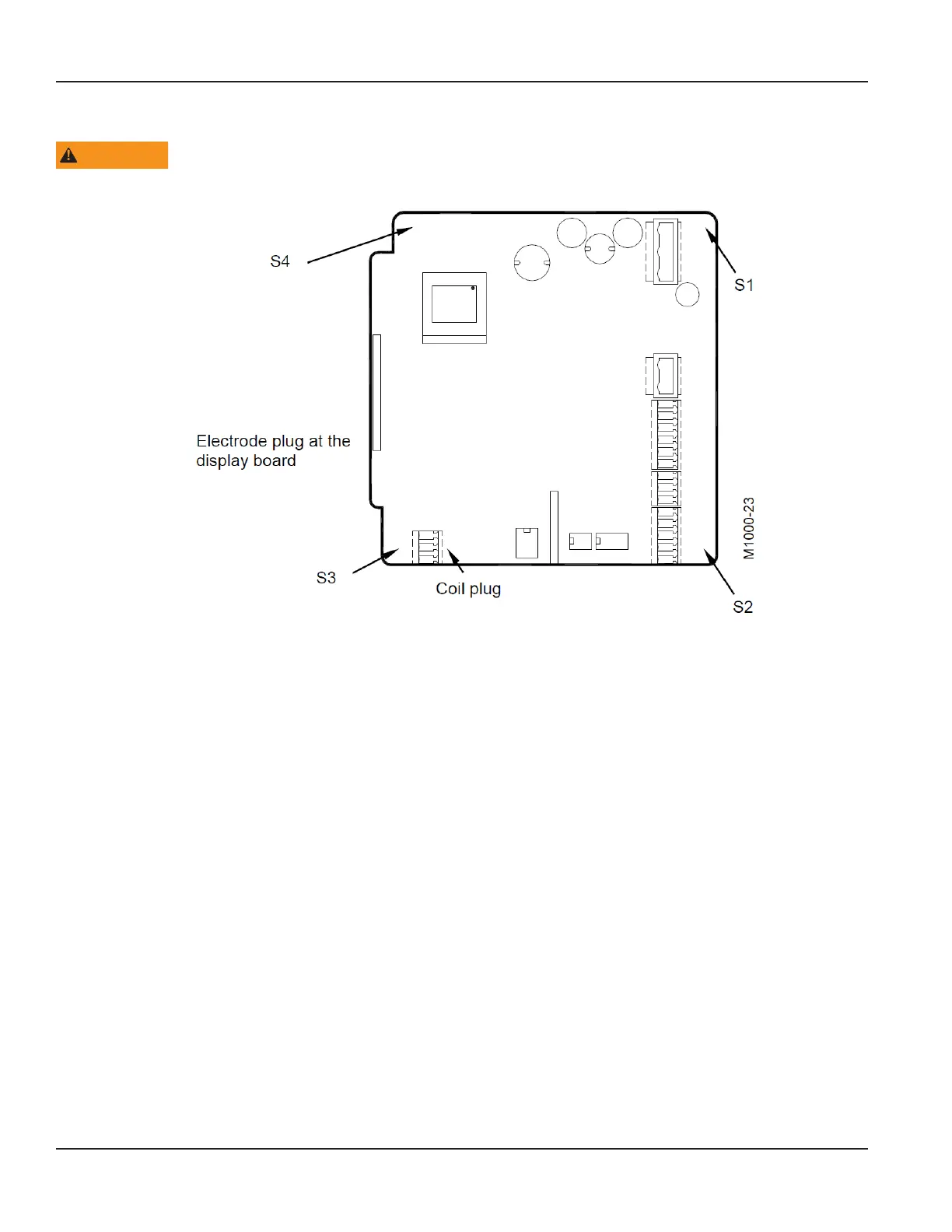

Figure 31: Screw locations
1. Pull out all plugs. Loosen screws S1…S4 and remove circuit board.
2. Insert new circuit board and fasten in place by replacing screws S1…S4. Insert plugs that were previously removed.
3. If necessary, congure new circuit board to work with the meter (detector, size).
ModMAG® M1000 Electromagnetic Flow Meter
Page 38 March 2020MAG-UM-00379-EN-07
