Error Limits
Measuring range 0.10…39.37 ft/s (0.03…12 m/s)
Pulse output 0.3% of reading ±0.08 in./s (2 mm/s)
Analog output Similar to pulse output ±0.01 mA
Reproducibility ±0.1%
1.00 %
0.80 %
0.60 %
0.40 %
0.20 %
0.00 %
0 2 4 6
10
12
Flow velocity [m/s]

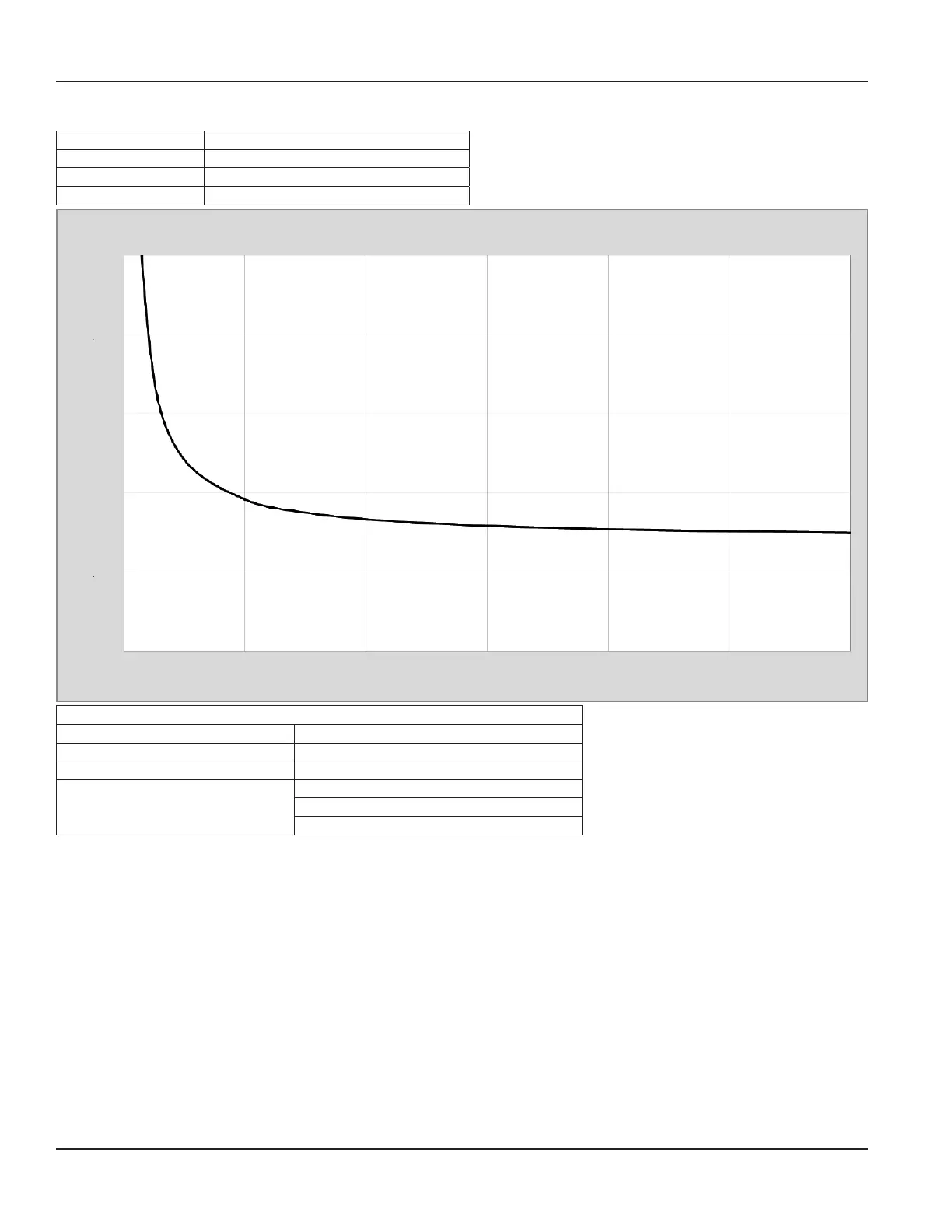

M1000 Measuring Error
Measuring Error of mv
8
±0.3% of mv ±2 mm/s
Reference conditions
Ambient and fluid temperature 68° F (20° C)
Electric conductivity >300 S/cm
Warm-up period 60 min
Mounting conditions
>3/8 in. (10 DN) inlet pipe
>1/4 in. (5 DN) outlet pipe
Detector properly grounded and centered
ModMAG® M1000 Electromagnetic Flow Meter
Page 46 March 2020MAG-UM-00379-EN-07
