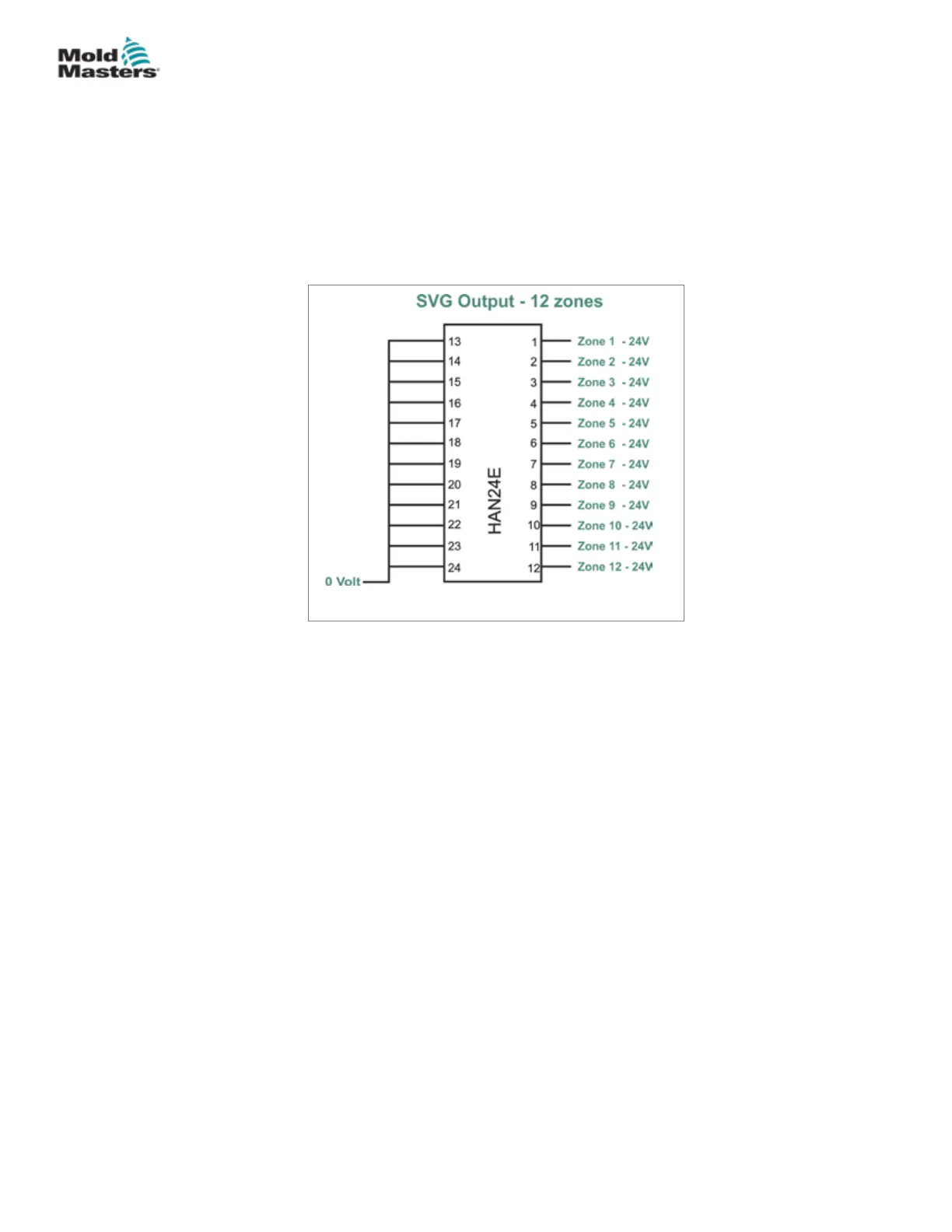

14.10 External Wiring Connections

14.10.1 Outputs

There is one HAN24E female connector for every 12 zones.

For each pair the higher numbered pin is at ground the lowered numbered

side will energize at 24V DC when the controller calls for that valve to open.

14.10.2 Output Rating

Each output is rated at 5A 24V DC.

14-34

SEQUENCE VALVE GATE OPTION

M2+ Controller User Manual
