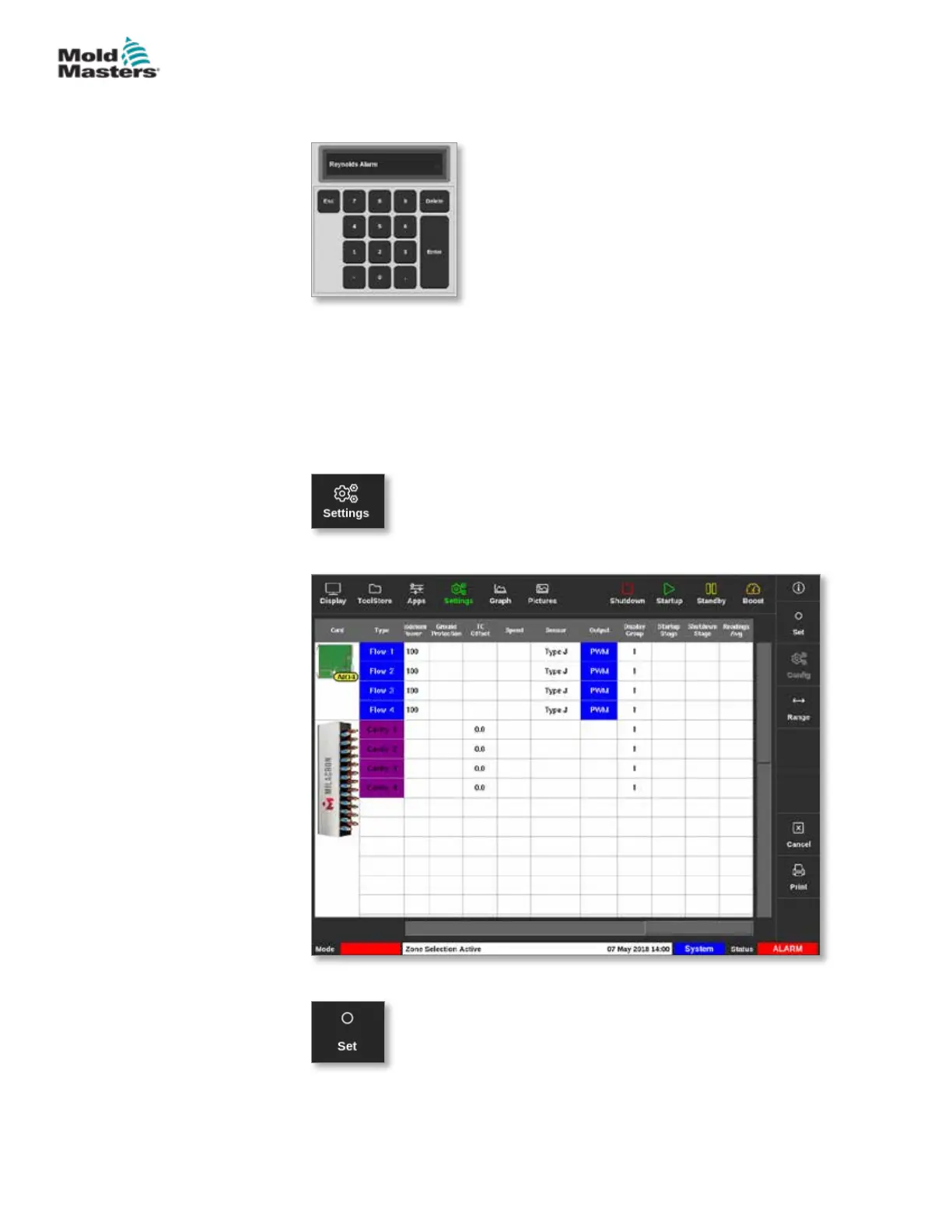

8. Choose [Reynolds Alarm]:
9. Enter the Reynolds number alarm value.
11.8 Flow Control Option
11.8.1 Congure Flow Zone Output
Flow zone output must be set properly for closed loop operation.
1. Choose [Settings]:
2. Choose ow zones and choose the column [Output]:
3. Choose [Set]:
Set the Reynolds Number Alarm Parameters - continued
11-14
