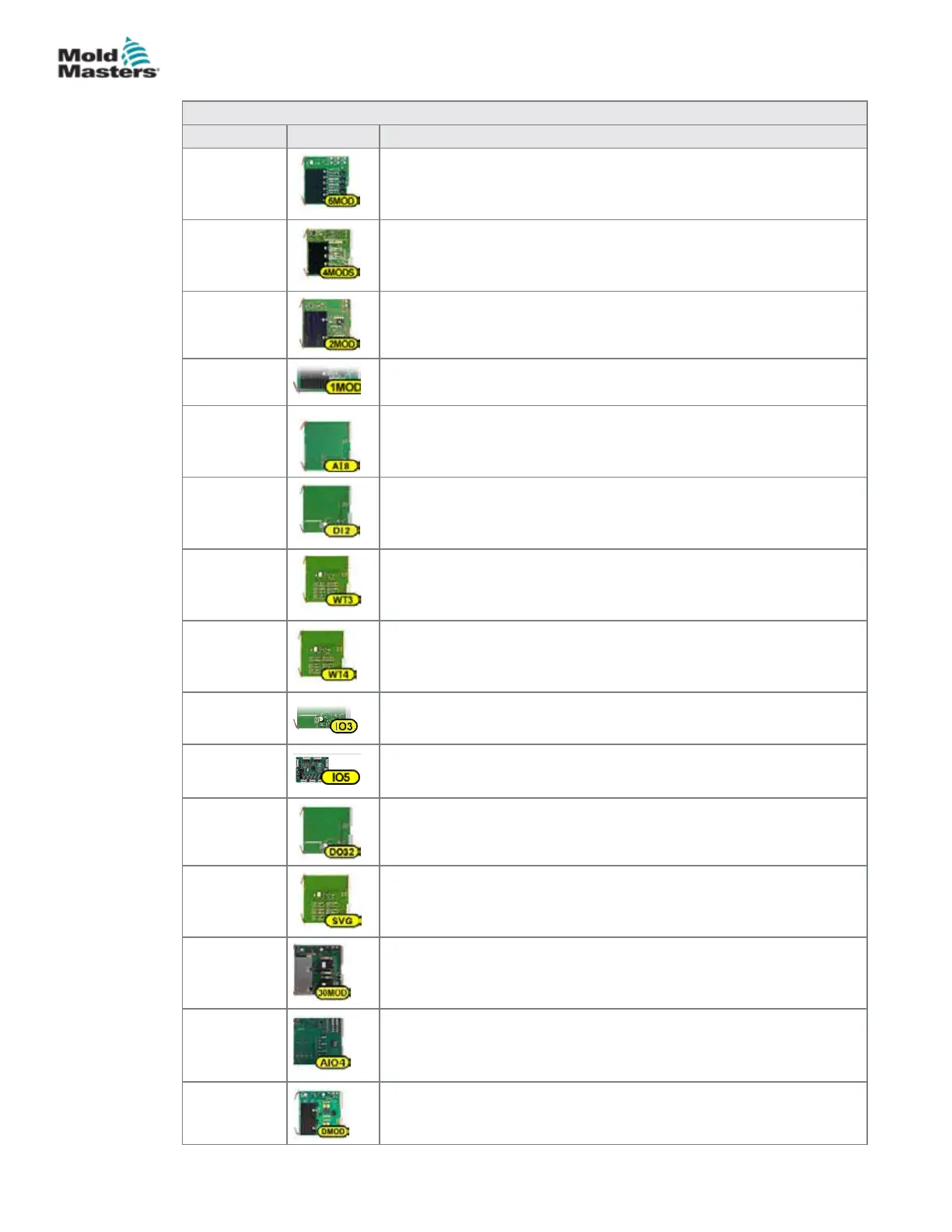

5.2.1 Cards That May Be Detected
Table 5-1 M2 Plus Controller Cards
Card Symbol Description
M2Z6MOD
6 zone card rated at 5 Amp rating for probes with current sensing and
ground fault monitoring
M2QMOD
4 zone card rated at 15 Amp rating with current sensing and ground fault
monitoring
20A-MOD
2 zone card rated at 20 Amp rating for manifolds with current sensing
only
1Z-3Ph-30A
1 zone 3-phase card rated for 480 VAC, 30 Amps with current sensing
HRC-AI8
8 channel 4-20mA analogue input card typically used with analogue ow
sensors to monitor coolant ow rates
HRC-D12
16 channel digital input card typically used to accept external signals
HRC-WT3
12 channel RTD card used for temperature monitoring using resistive
temperature devices
HRC-WT4
12 channel TC card used for temperature monitoring using
thermocouple sensors
HRC-IO3 or
TMK-IO4
4 channel digital Input / Output card for remote signalling
HRC-IO5
4 channel digital Input / Output card for remote signalling and remote
Tool Selection input
DO32
32 channel digital output Card used to signal external equipment
M2-SVG12
12 channel sequential valve gate card that can open and close valve
gates at discrete preset point
30 Amp Card
2 Zone 30 Amp dual slot card that supports 30 Amps at 100% duty cycle
HRC-AI04
4 channel Analog output card (PWM, 0-10V, 4-20mA)
20A-MOD
2 zone 20 Amp card with current sensing and ground fault monitoring
5-4
