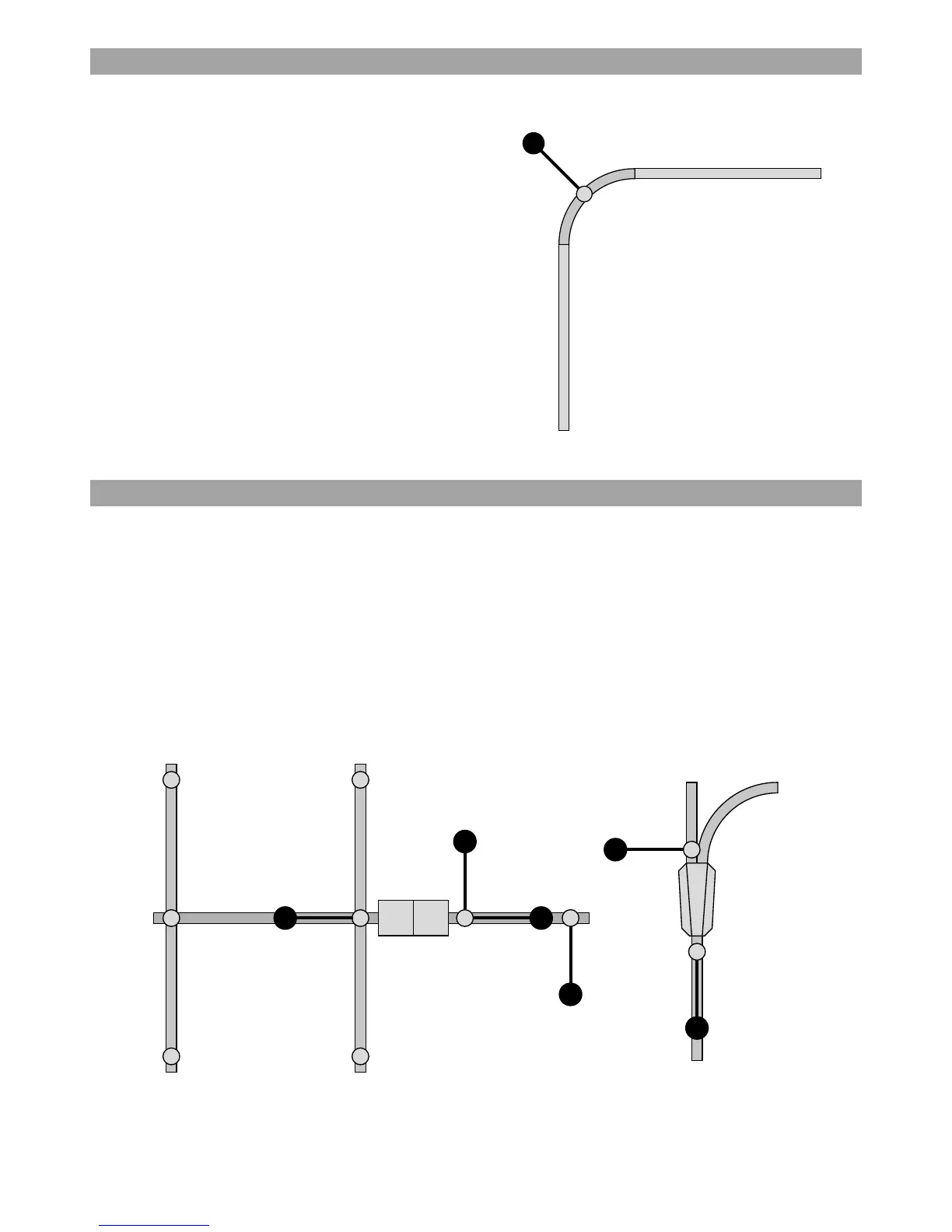

Length of bracket < 800 mm ( < 32 inch.):
No need of side supports.
Length of bracket > 800 mm ( > 32 inch.):
One side support should be mounted to the
bracket in the middle of the curve perpendicular to
the radius.
Rules for Side support for the joining rails, see
above.
Length of bracket < 400 mm (< 16 inch.):
No need of side supports.
Length of bracket > 400 mm (> 16 inch.):
All switch functions need minimum two side sup-
ports perpendicular to each other mounted on the
closest bracket.
Traverse Switch Side rail switch
Rail Curve 90°
Rail Switches
Rail Curves – includes all angles 30°to 90°
