Side support should be mounted to all rods,
positioned perpendicular to the rail in a Straight
rail system and to both primary rails in a Traverse
system.
Side support should be mounted to the first and
last rods positioned parallel to the rail in a Straight
rail system. Traverse Systems need one Side sup-
port parallel to each Primary rail end.
Straight rail and Traverse systems:
All threaded rod systems should have bracing
independent of length of rod. i.e. 100-2000mm

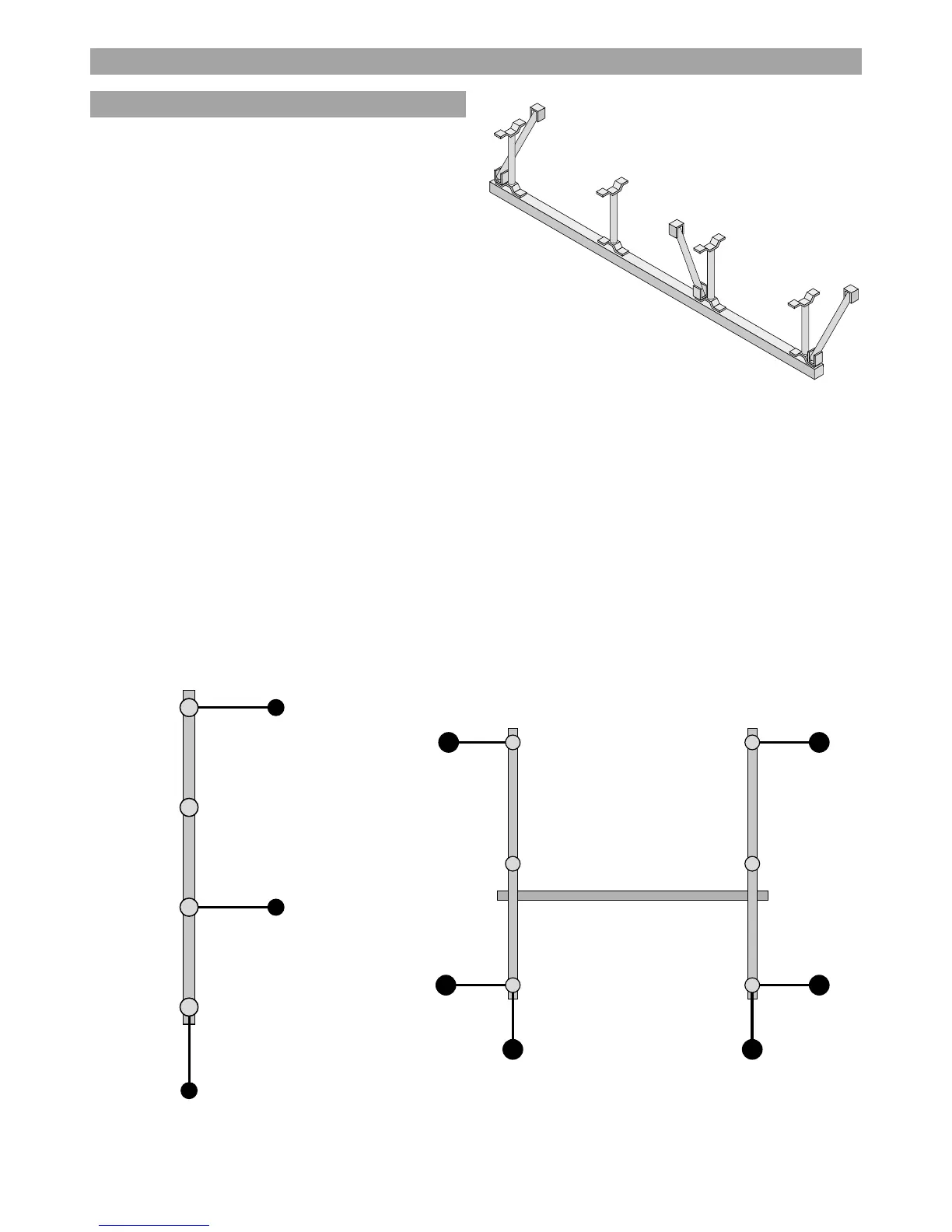

Straight Rail System
Traverse System
Threaded rod installation
