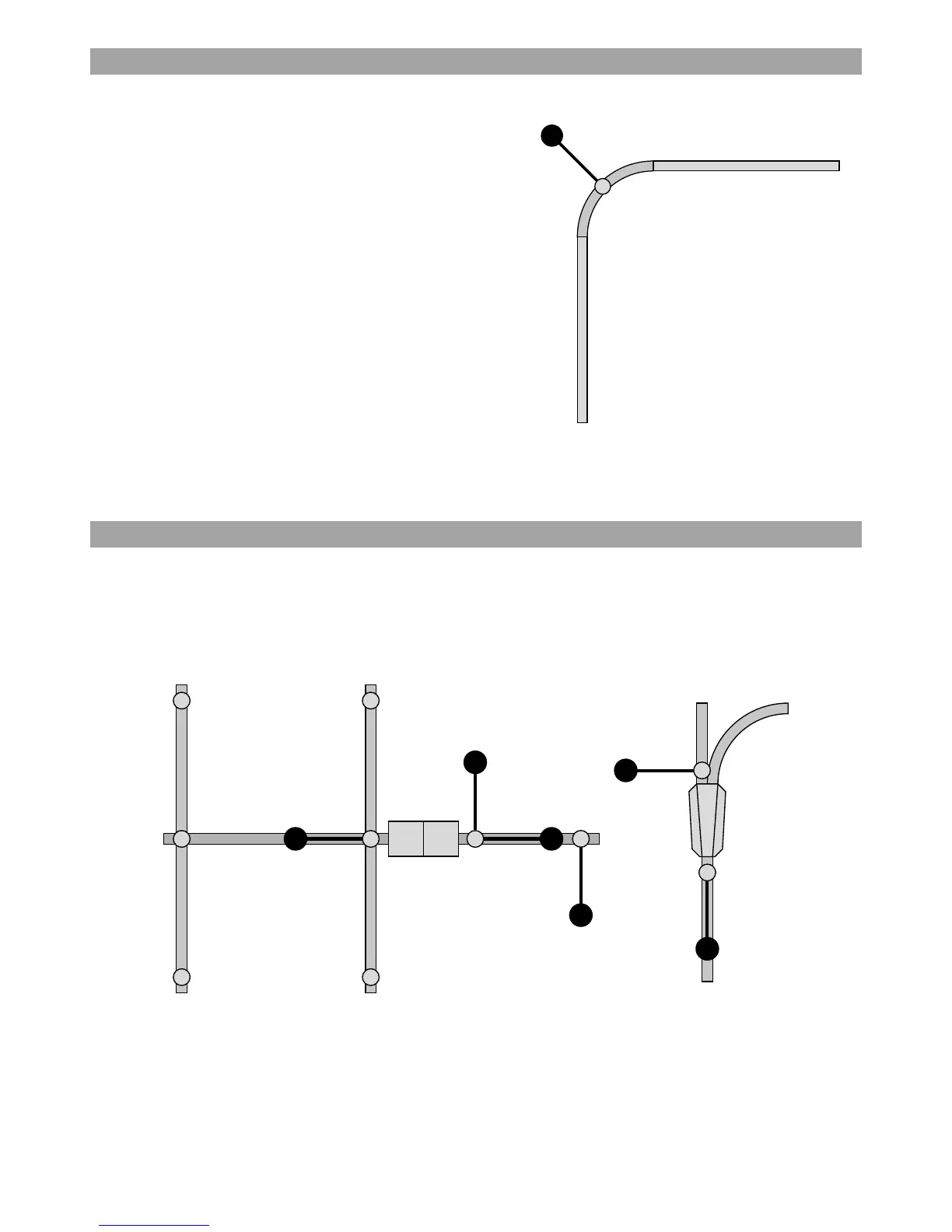

Length of bracket < 800 mm ( < 32 inch.):
No need of side supports.
Length of bracket > 800 mm ( > 32 inch.)
One side support should be mounted to the rod in
the middle of the curve perpendicular to
the radius.
Rules for Side support for the joining rails, see
above.
Regardless of the lengths of Threaded rods, all
switches need minimum two side supports per-
pendicular to each other mounted on the closest
rod.
Traverse Switch Side rail switch
Rail Curve 90°
Rail Curves – includes all angles 30° to 90°
Rail Switches
