Money Controls SR5 - Table 7: Accept Output DC Characteristics; Figure 6: Accept Outputs (2)

SR5 Technical Manual TSP010.doc Issue 3.0 - October 2001
CONFIDENTIAL
Not to be disclosed without prior written permission from Money Controls
Page 16 of 50
Table 7: Accept output DC characteristics
Characteristic Value Conditions
V out active min. Com A minus 1V Positive Com A
V out active max. Com A plus 1V Negative Com A
I max (sink or source) 50mA Positive or Negative Com A
I Leakage
10µA
Off

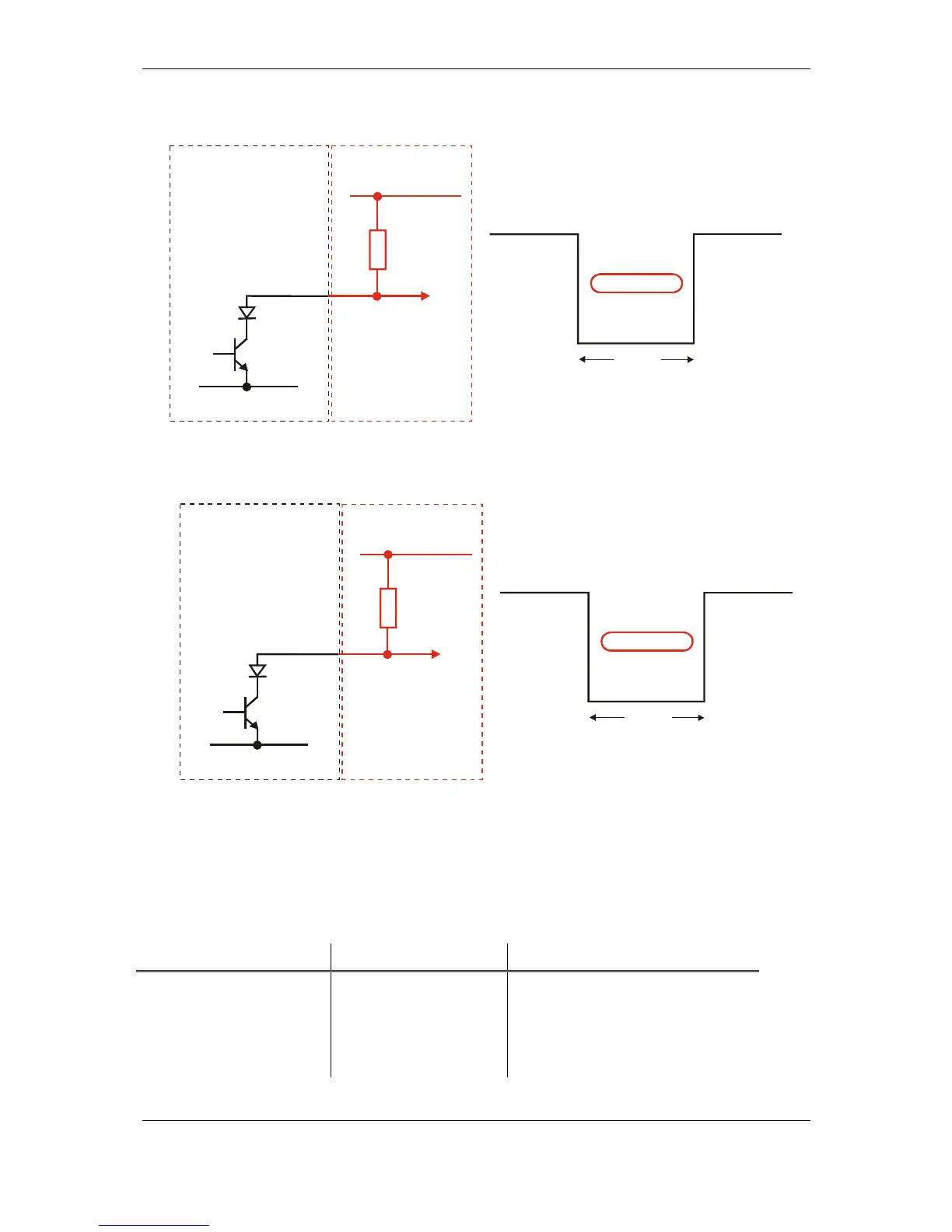

Figure 6: Accept Outputs (2)
80ms
ComA = 0V
+5V to +24V
50mA MAX
O/P
Coin Accept
O/P
MAX 24V
0V
+5V to +24V
SR5
Host machine
COMA = 0V
80ms
ComA = -5V to -24V
0V
50mA MAX
O/P
Coin Accept
O/P
MAX 24V
-5V to -24V
0V
SR5
Host machine
COMA = -5V to -24V
