23) Mechanical Specification
♦ Position
The SR5 should be mounted within +2 degrees of the vertical in any plane. It is
intended for use in stationary environments.
♦ Coin/Token Sizes
The accepted range of coin sizes are shown below:
This Graph is only intended as a guide. If a coin is required that is close to the
limits shown, please check with Money Controls Technical Services department
first.

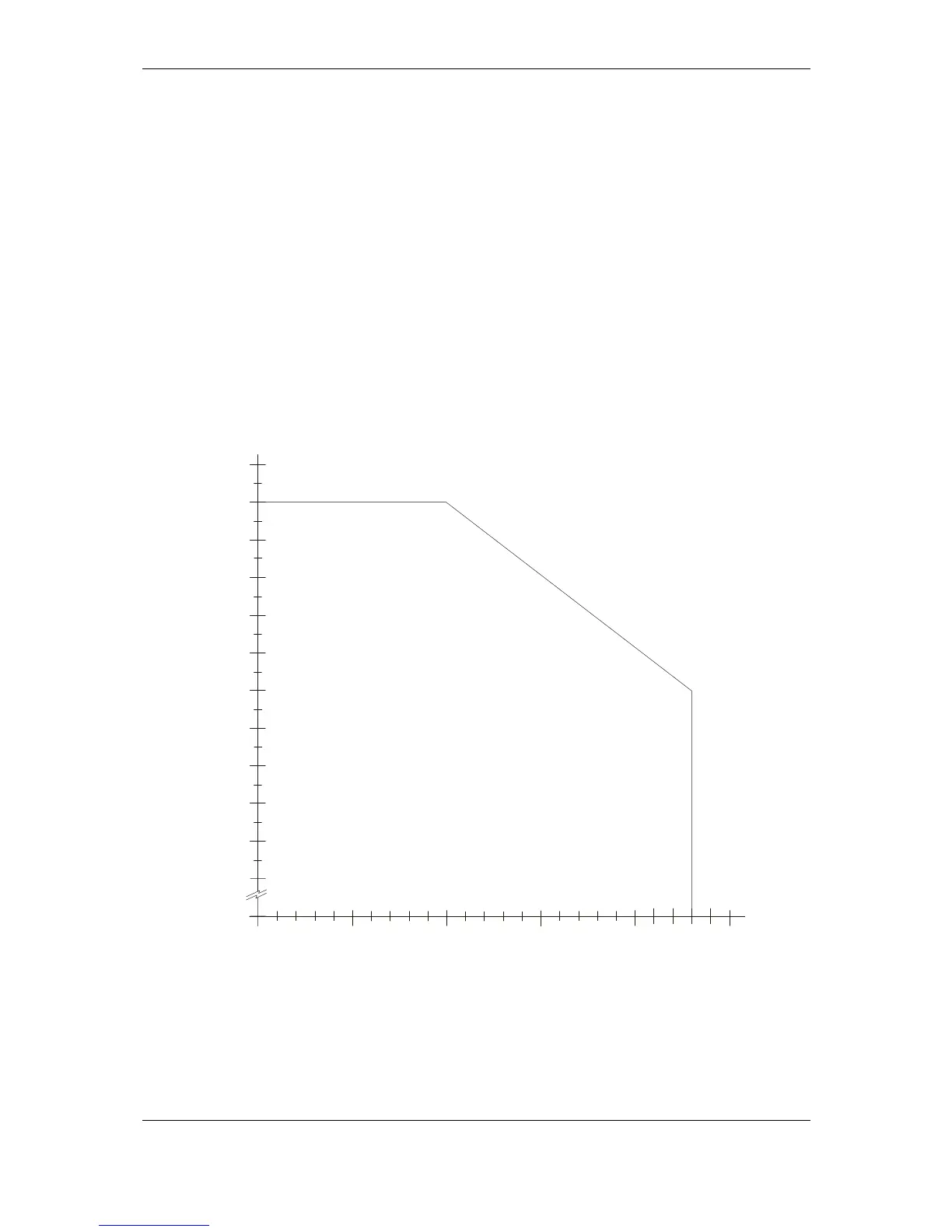

Figure 22: SR5 Accepted Coin Dimensions Graph
26
25
24
23
22
33
32
31
30
29
28
27
1.0 1.5 2.0 2.5 3.0 3.5
15
DIAMETER
THICKNESS
