Money Controls SR5 - 8-Way Sorter Override

SR5 Technical Manual TSP010.doc Issue 3.0 - October 2001
CONFIDENTIAL
Not to be disclosed without prior written permission from Money Controls
Page 22 of 50
♦ 8-Way Override

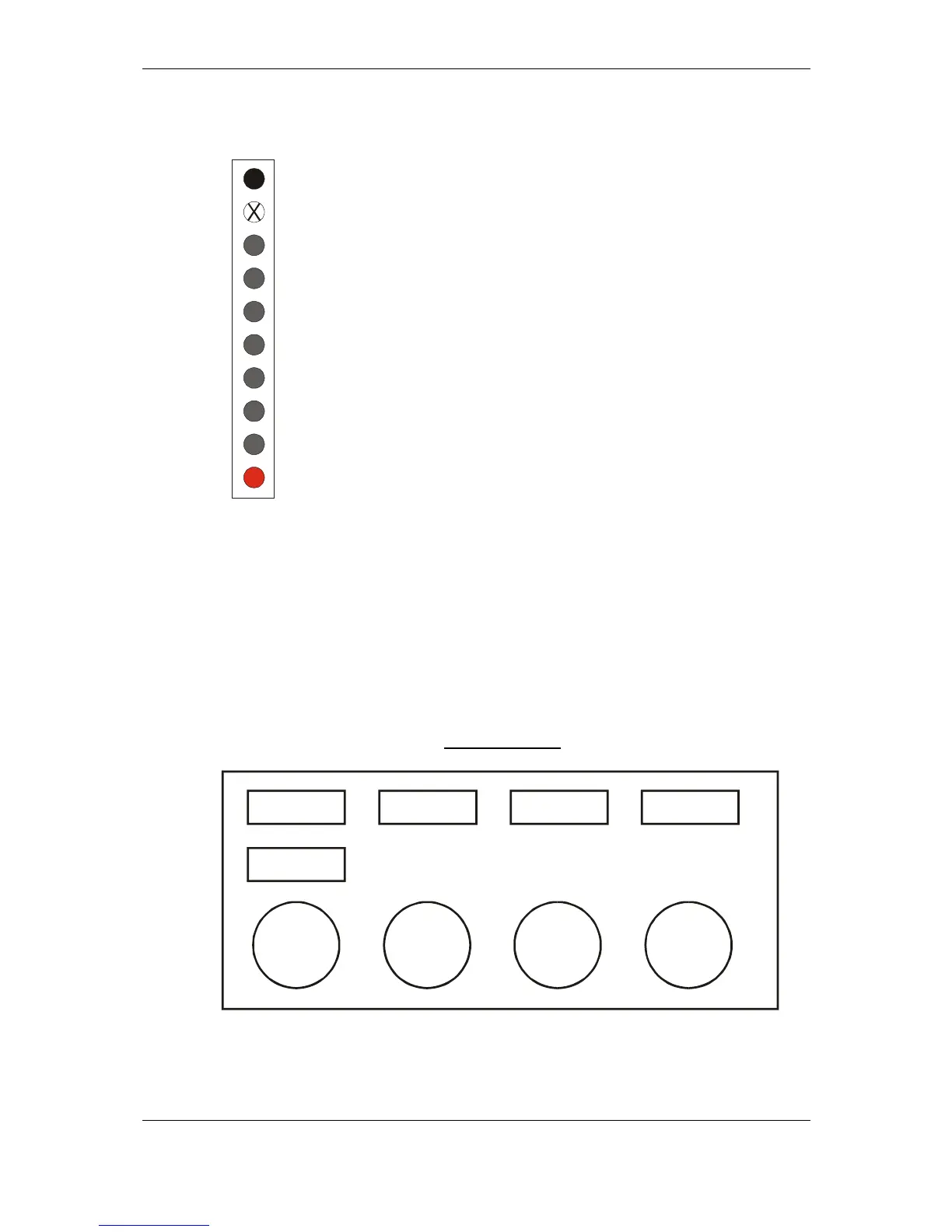

Figure 10: Sorter Overrides 8-way
In order to use 8-way sorting, the paths MUST be programmed in EEPROM.
Of the 8 possible routes for an accepted coin, only routes 1 to 7 have a sorter
override input.
Taking the relevant input Low indicates to the acceptor that the route is
overridden. The coin will then travel down the next programmed route or be
accepted through the DEFAULT path.
View from above
0V
Key
Override 7
Override 6
Override 5
Override 4
Override 3
Override 2
Override 1
V Supply
1
2
3
4
5
6
7
8
9
10
1/D
7/c
8/d 6/b 5/a
4/A3/B2/C
Reject
DEFAULT
