18) Rotary Switch Options.
There are a number of options which can be selected via the hexadecimal
rotary switch.
One function of the rotary switch is to select and program tokens and also carry
out basic changes to the SR5 (as discussed below):
The other function is the “MechTool” access which allows more in depth
changes to be made (see “Appendix SR5 MechTool”).

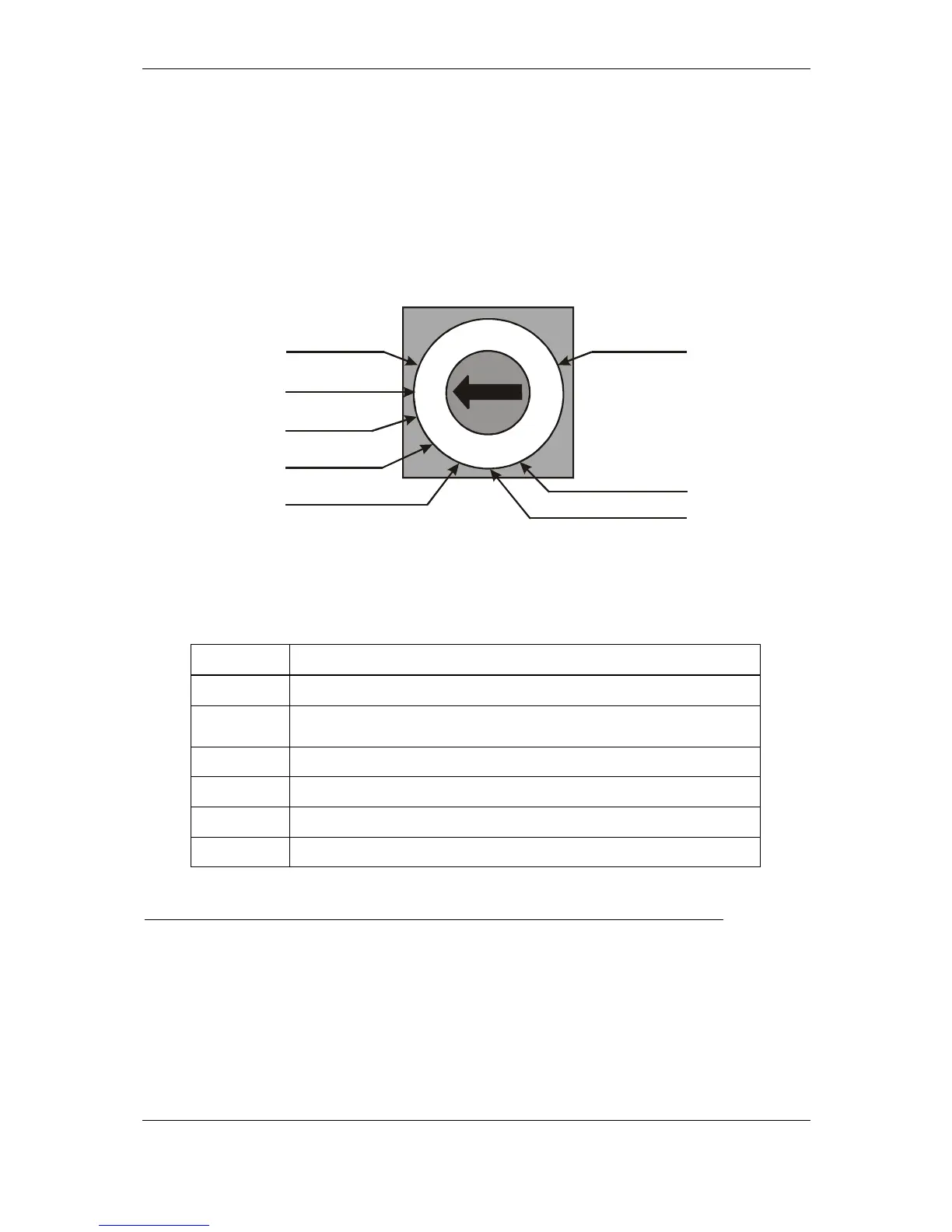

Figure 16: Rotary switch
♦ Token Group Selection
Position Function
0 No token accepted.
1 to B
Selects the required pre-programmed token group,
(if available).
C Selects the ‘taught’ token (see F)
D Alarm and Rundown settings. (see page 32)
E Routing plug / EEPROM. (see page 33)
F
Teach and Run a new token. (see page 31)
NB: NEVER leave the validator with the rotary switch in positions D,E or F.
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
Token group 7Token group 1
No tokens
Sorter mode
Teach mode
Program options
Token group 11
Accept taught token
