SR5 Technical Manual TSP010.doc Issue 3.0 - October 2001
CONFIDENTIAL
Not to be disclosed without prior written permission from Money Controls
Page 49 of 50
6
3
1
1. Quick Release latch
(Front Entry)
2. M4.0 x 16 pozi pan hd
screw
3. Front entry gate piece with
ball stabiliser
4. Gate snubber
5. 4.2 x 3/8” pozi csk screw
6. Quick release latch spring
(Front Entry)
7. Front Entry piece
8. M4.0 full nut
9. 4.2 x 5/16” pozi pan hd
10. PCB back cover
11. Accept gate
12. Accept gate spring
13. Cotton catch
14. Top Entry chute
15. Top Entry gate piece
16. Top Entry reject lever
17. Top Entry reject lever pivot
screw and spring
8
7
2
14
16
17
10
15
4
13
5
11
12
9

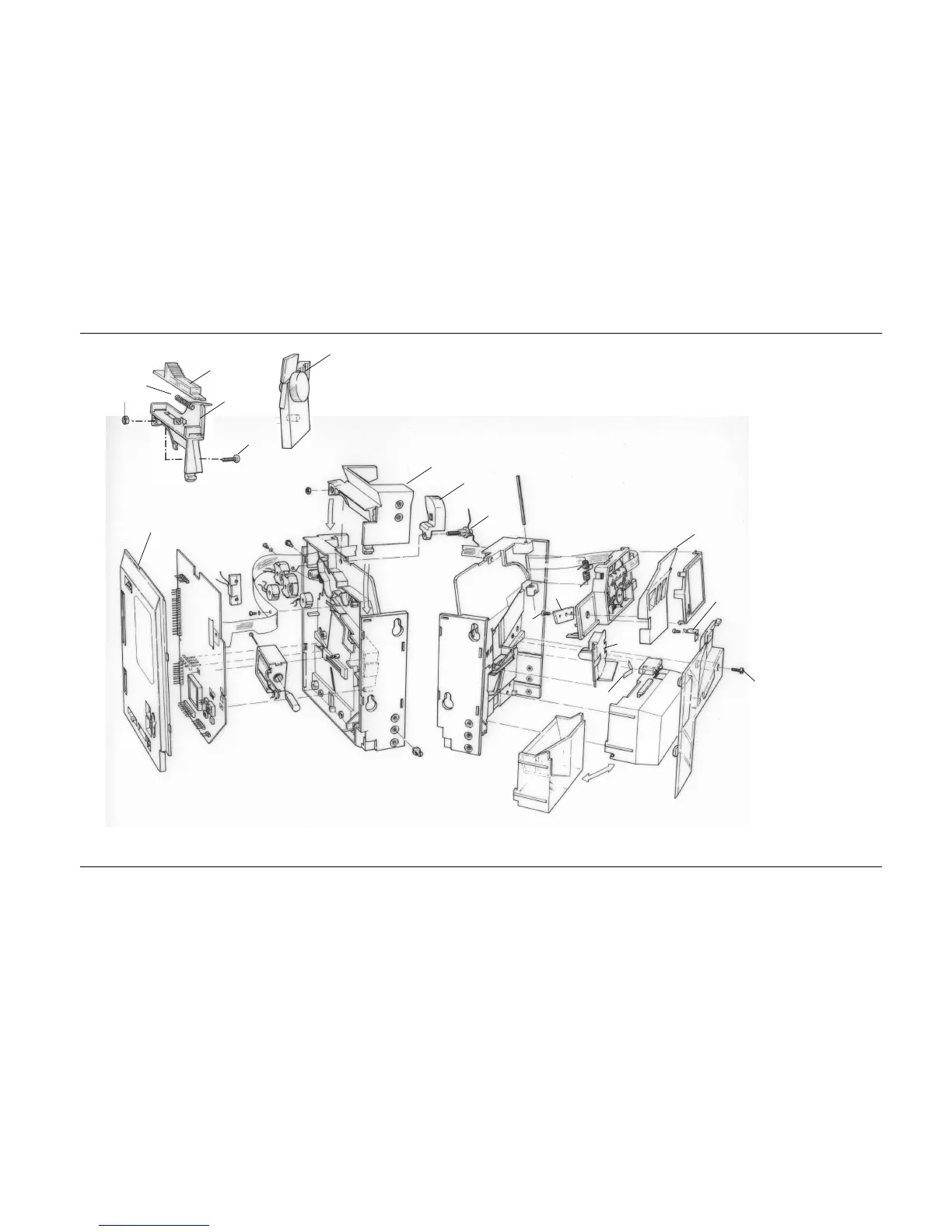

Figure 26: Top Entry / Front Entry Exploded View
