SR5 Technical Manual TSP010.doc Issue 3.0 - October 2001
CONFIDENTIAL
Not to be disclosed without prior written permission from Money Controls
Page 23 of 50
13) Sorting Modes
♦ Routing Plug (4 way sorting only)
The routing connector is an 18-way 0.1” pitch DIL header.
Shown below are the coin positions and the sorter paths.
NOTE: The default path is A and coin 8 ALWAYS goes to the default.
NB: For coins 9 to 16 the paths are the same as coins 1 to 8.

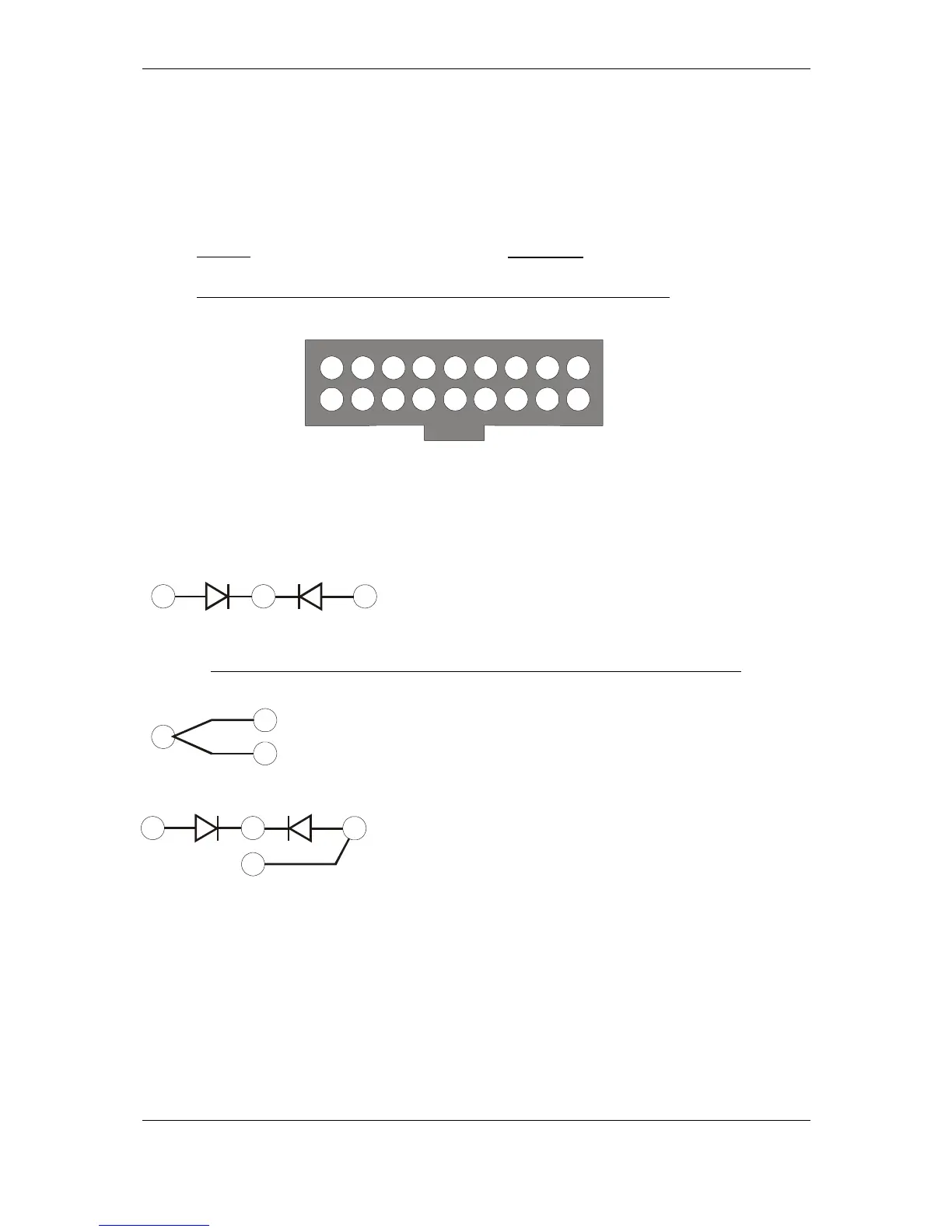

Figure 11: Routing Plug Connections
♦ Using the routing plug
NB: The sequence of sorting using the routing plug is D – C – B – A.
♦ EEPROM mode (4-way / 8-way sorting)
This mode allows any coin to be sorted to a maximum of 4 paths + the relevant
default path.
e.g. 4-way could be coin 2 to path C, then D, B, default A. See
Figure 7.
e.g. 8-way could be coin 6 to path 1, then 4, 3, 7, default 8. See Figure 8
In this example both coins 1 and 2 are diverted to path D.
(Any number of coins can be connected like this as long as
there is a protection diode -1N4148 - inserted between the
coin position and the path as shown - Cathode to path
connection.
In this example coin 5 will divert to path C then to path B (see above note).
If path B, override to path C is required, path C must first be overridden -
coins will sort down path B. When path B is full, the override can be
removed from C - coins will sort to path C.
Here, coins 1 and 2 will sort to path D.
If path D is then overridden, coin 1 will sort to DEFAULT
(A) and coin 2 will sort to path C.
If path C is then overridden coin 2 will also sort to the
DEFAULT (A).
1 2D
5
B
C
C
1 2D
1
2
17
18
12
345
67BCD
LOOKING AT THE PIN HEADER
0V
0V
0V
