♦ Circuit 3 – cctalk Direct Interface

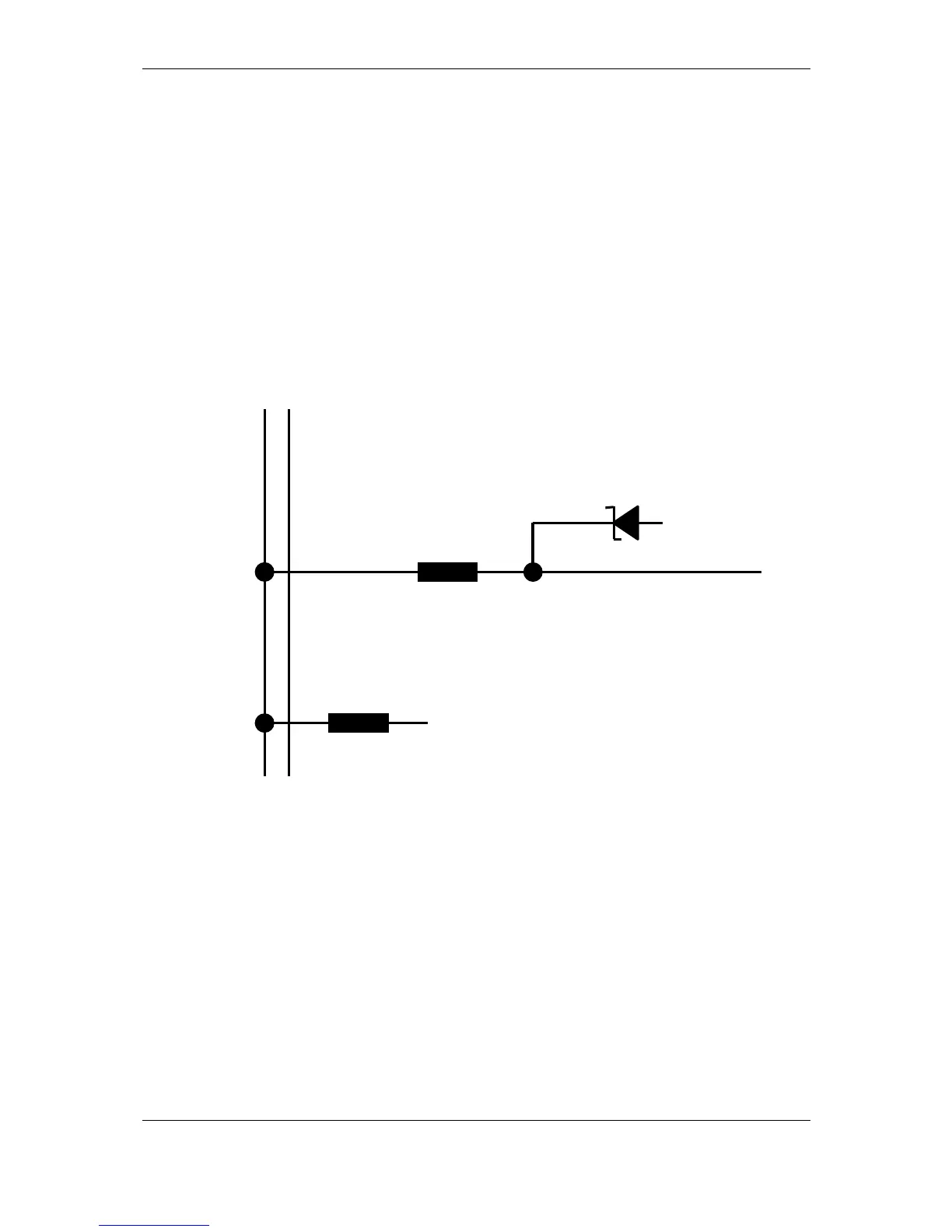

Figure 19: Circuit 3, cctalk Direct Interface
A very low cost solution is to interface a single pin on a microcontroller directly
onto the cctalk data line. The pin can be switched between active-low for
transmitting and high-impedance tri-state for receiving.
2-wire Serial Bus
Data Com
+5V
Network Load at Host Controller
47R
10K
0V
Bi-directional drive
Voltage clamp
