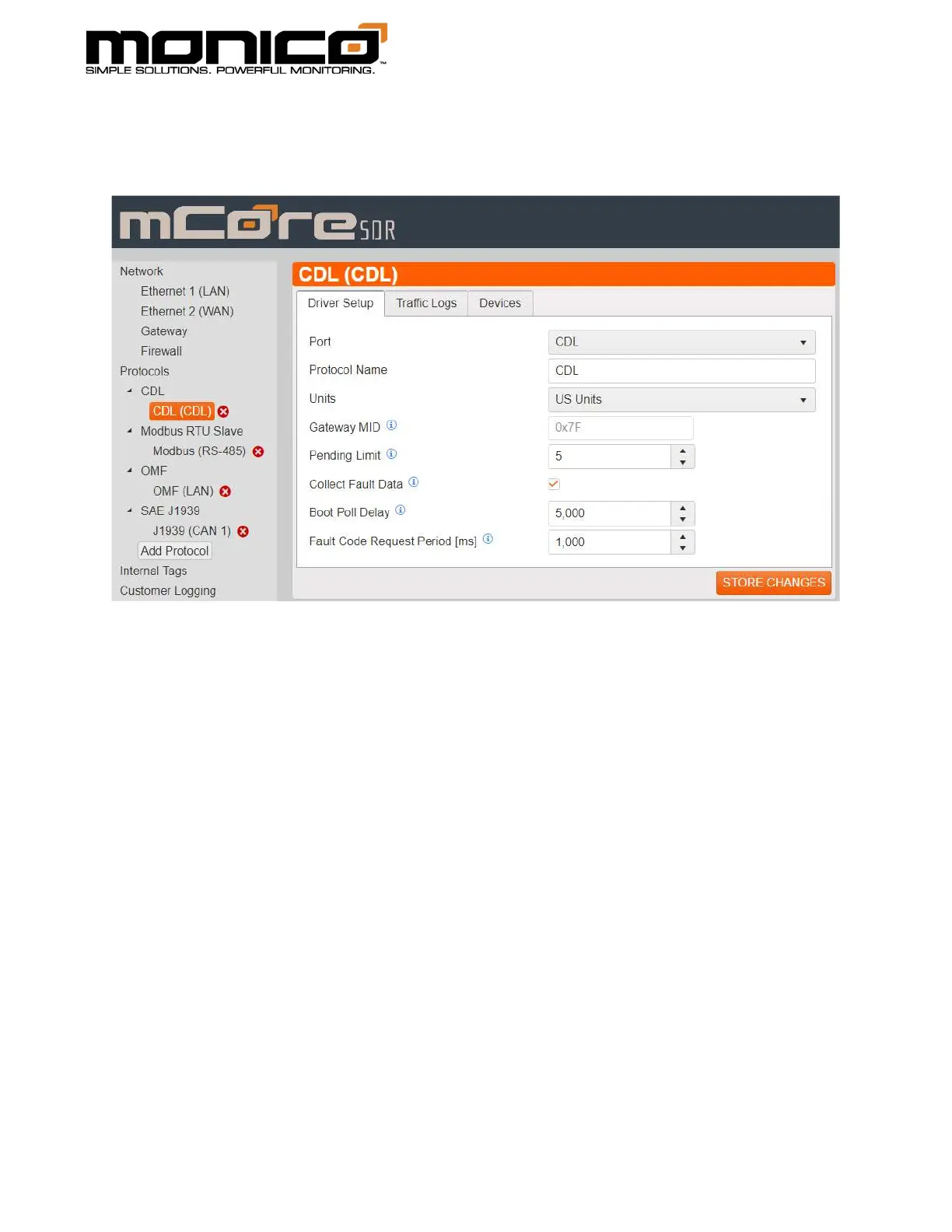

1. After adding the Protocol per the Add Protocol section, click the second level
of the protocol.
2. mCore automatically scales and converts the CDL data to the units of your
choice. Choose between US Units (psi, °F, etc.) or Metric (kPa, °C, etc.).
3. The Pending Limit is essentially a communications speed regulator. Some older
CDL ECMs need to be talked to slower to communicate well. The range is 1 – 8.
Default is set to a 5. If communications seem to drop out or become erratic,
try lowering the pending limit.
4. Collect Fault Data turns on the ability to receive fault information. This is set to
On as default.
5. Boot Poll Delay is the amount of time mCore will wait after being booted up
before it starts communicating over the CDL bus.
6. Fault Code Request Period is how frequent mCore checks for Faults.
