Page 34
CREASING / FOLDING
Replacing Blade Sets
8. Slide the blade assembly out of the creasing unit and lay it on a flat surface.
9. Slide the blade adjustment cams and the blade adjustment assemblies away from the
dowels located in the ends of the blades / anvils as shown in FIG 34.1 below.
11. Slide the new blade set into the slots of the creasing unit as shown in FIG. 34.2.
12. Rotate the blade adjustment cams until they are just tight, and then back off slightly.
Reset blade to ‘Top Dead Centre’ and make final adjustments.
10. Slide the blade adjustment assemblies and the blade adjustment cams onto the
dowels of the new blade set.
Socket HeadSocket Head
Blade Adjustment
Blade Adjustment
Assembly
Cam
Screw

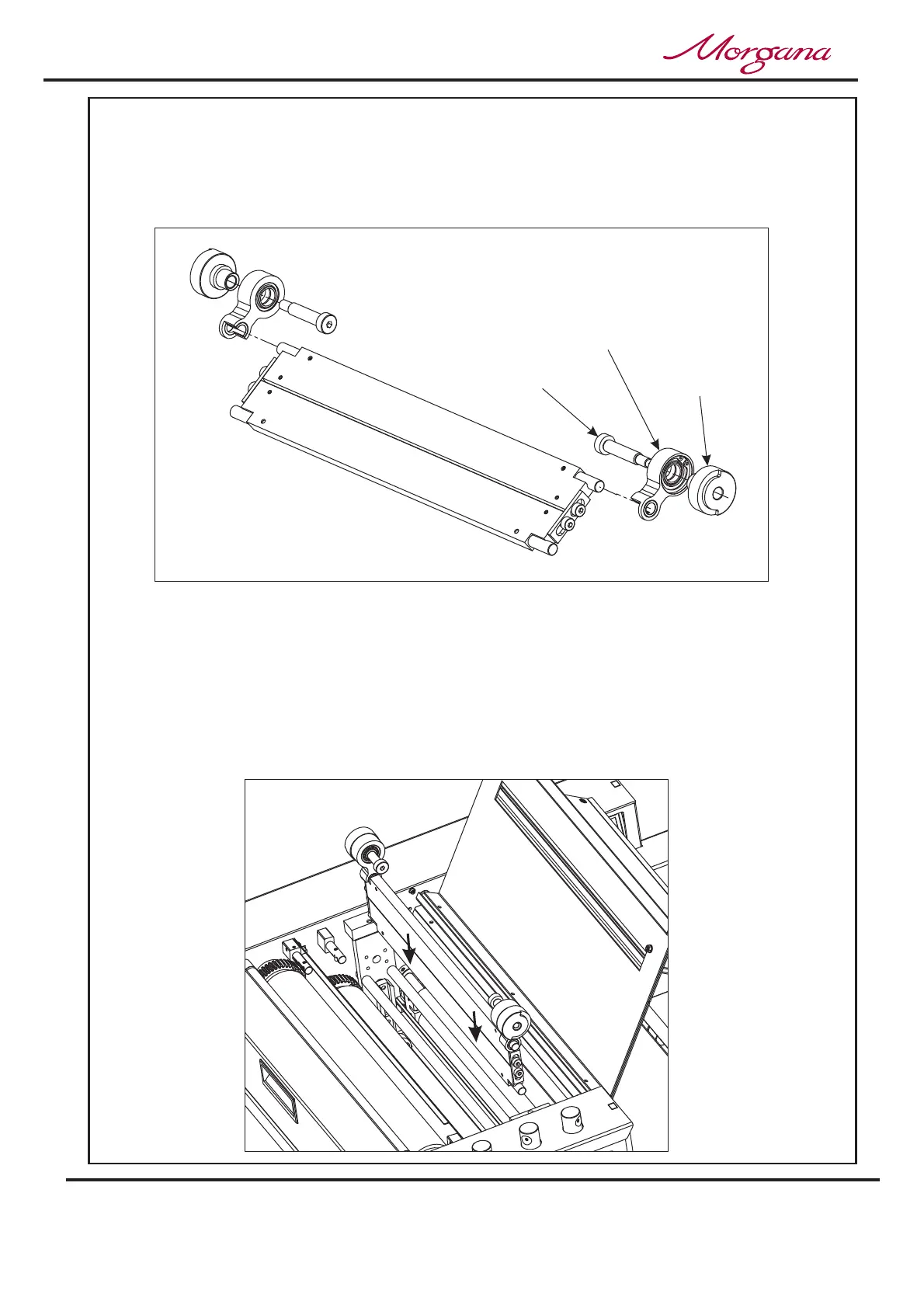

FIG 34.1
FIG 34.2
