MOTO GUZZI GRISO Use And Maintenance Book

use and maintenance Griso R
28

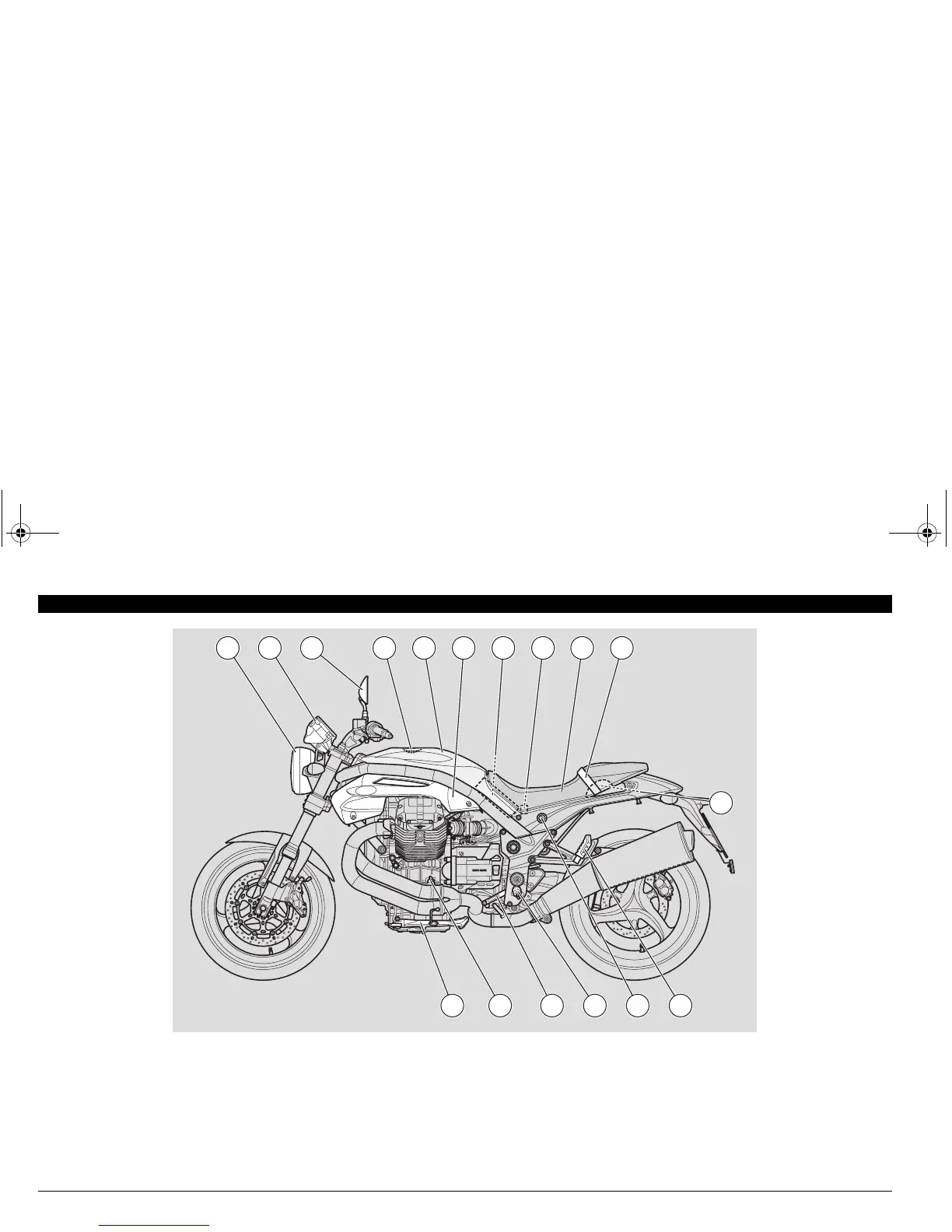

POSITION OF KEY COMPONENTS
KEY
1) Headlight
2) Instrument panel
3) Left rearview mirror
4) Fuel tank filler cap
5) Fuel tank
6) Left side body panel
7) Battery
8) Main fuse carrier (30A)
9) Passenger/rider seat
10) Passenger grab strap
11) Tool kit compartment
12) Left passenger footpeg
13) Seat lock
14) Rider left footrest
15) Gear shift lever
16) Engine oil dipstick
17) Side stand
1 2 3 4
17 16 15 14 13 12
5 6 1097 8
11
GUZum_griso1100#06_#USA.book Page 28 Tuesday, March 21, 2006 2:43 PM

MOTO GUZZI GRISO Specifications

General

Cooling System	Air-cooled
Final Drive	Shaft drive
Seat Height	800 mm
Engine Type	90° V-twin
Fuel System	Electronic fuel injection
Front Suspension	43mm upside-down fork
Front Brakes	Dual 320mm discs, 4-piston calipers
Frame	Tubular steel
