CHANGING THE HEADLIGHT
BULBS
Carefully read page 96 (BULBS).

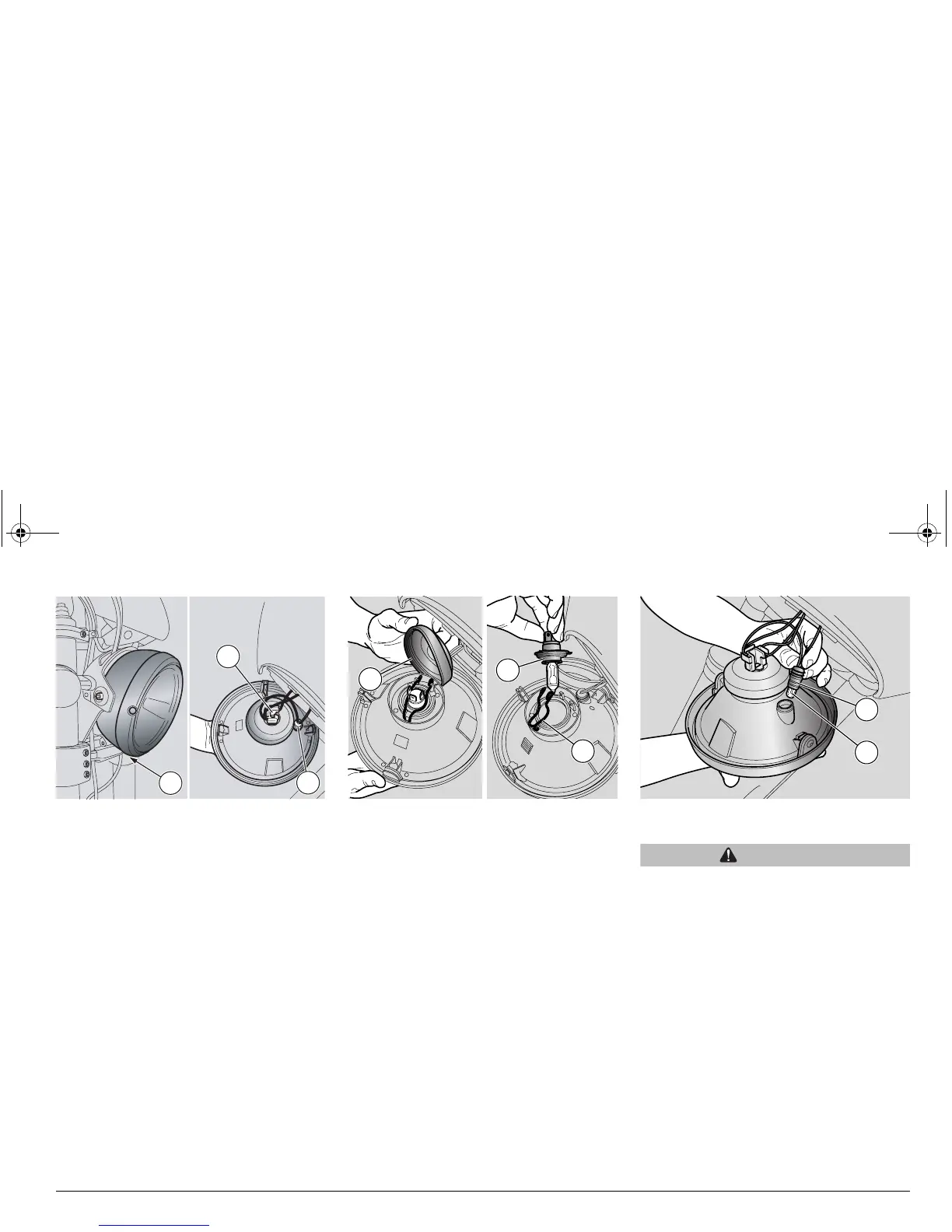

The headlight contains:
– one low/high beam bulb (1) (upper);
– one parking light bulb (2) (lower).
To change, proceed as follows:
u Place the vehicle on the stand, see page
50 (PUTTING THE VEHICLE ON THE
STAND).
u To remove the complete reflector from
headlight body, loosen the screw (3).
LOW/HIGH BEAM BULB
Do not pull on the wires to extract the
bulb connector.
u Grasp the bulb connector (4) and pull to
disconnect it from the bulb.
u Slip off the protection element (5) with
your fingers.
u Unhook the two ends of the retaining
spring (6) positioned on the bulb holder.
u Extract the bulb (1) from its seat.
NOTE Insert the bulb in the bulb holder,
making the relevant positioning seats
coincide.
u Fit a new bulb of equal rating.
PARKING LIGHT BULB
CAUTION
To extract the bulb holder, do not pull
the electric wires.
u Grasp the parking light (7) bulb holder
and pull to extract.
u Withdraw the bulb (2) and replace it with
one of the same type.
u Make sure the bulb is correctly located in
the bulb holder.
