use and maintenance Griso R
30

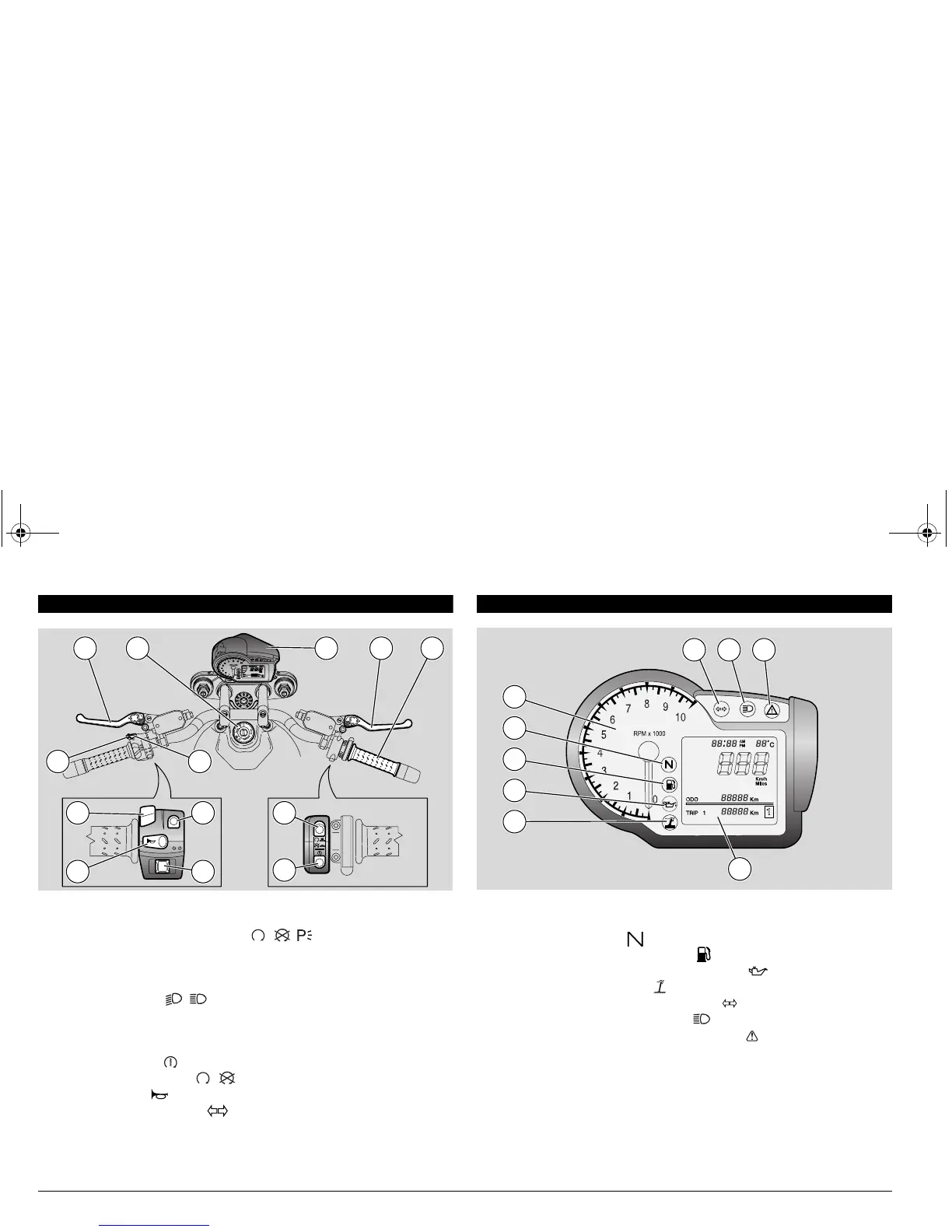

LOCATION OF INSTRUMENTS/CONTROLS
LOCATION OF INSTRUMENTS/CONTROLS - KEY
1) Clutch lever
2) Ignition switch/steering lock ( - - )
3) Instruments and indicators
4) Front brake lever
5) Throttle grip
6) Dimmer switch ( - )
7) Display functions switch
8) High beam flasher - passing button
9) SET pushbutton
10)Starter button ( )
11)Engine stop switch ( - )
12)Horn button ( )
13)Turn indicator switch ( )
1 2 3 4 5
9 8
7
12
6
13
11
10
INSTRUMENTS AND INDICATORS
LOCATION OF INSTRUMENTS/CONTROLS - KEY
1) Revolution counter
2) Green neutral light ( )
3) Orange low fuel warning light ( )
4) Red engine oil pressure warning light ( )
5) Yellow side stand light ( )
6) Green turn indicator warning light ( )
7) Blue high beam warning light ( )
8) Red alarms/immobilizer warning light ( )
9) Multifunction digital display.
9
1
2
3
4
5
6 7 8
GUZum_griso1100#06_#USA.book Page 30 Tuesday, March 21, 2006 2:43 PM

MOTO GUZZI GRISO Specifications

General

Cooling System	Air-cooled
Final Drive	Shaft drive
Seat Height	800 mm
Engine Type	90° V-twin
Fuel System	Electronic fuel injection
Front Suspension	43mm upside-down fork
Front Brakes	Dual 320mm discs, 4-piston calipers
Frame	Tubular steel
