7-28 Disassembly/Reassembly Procedures: Radio Reassembly
7.6.11 Reassemble the Vacuum Port Seal (42), Ventilation Label (43) and Bottom
Label (17)
1. Adhere and gently press the Vacuum Port Seal (42) on the chassis’ recess as shown in
Figure 7-42.

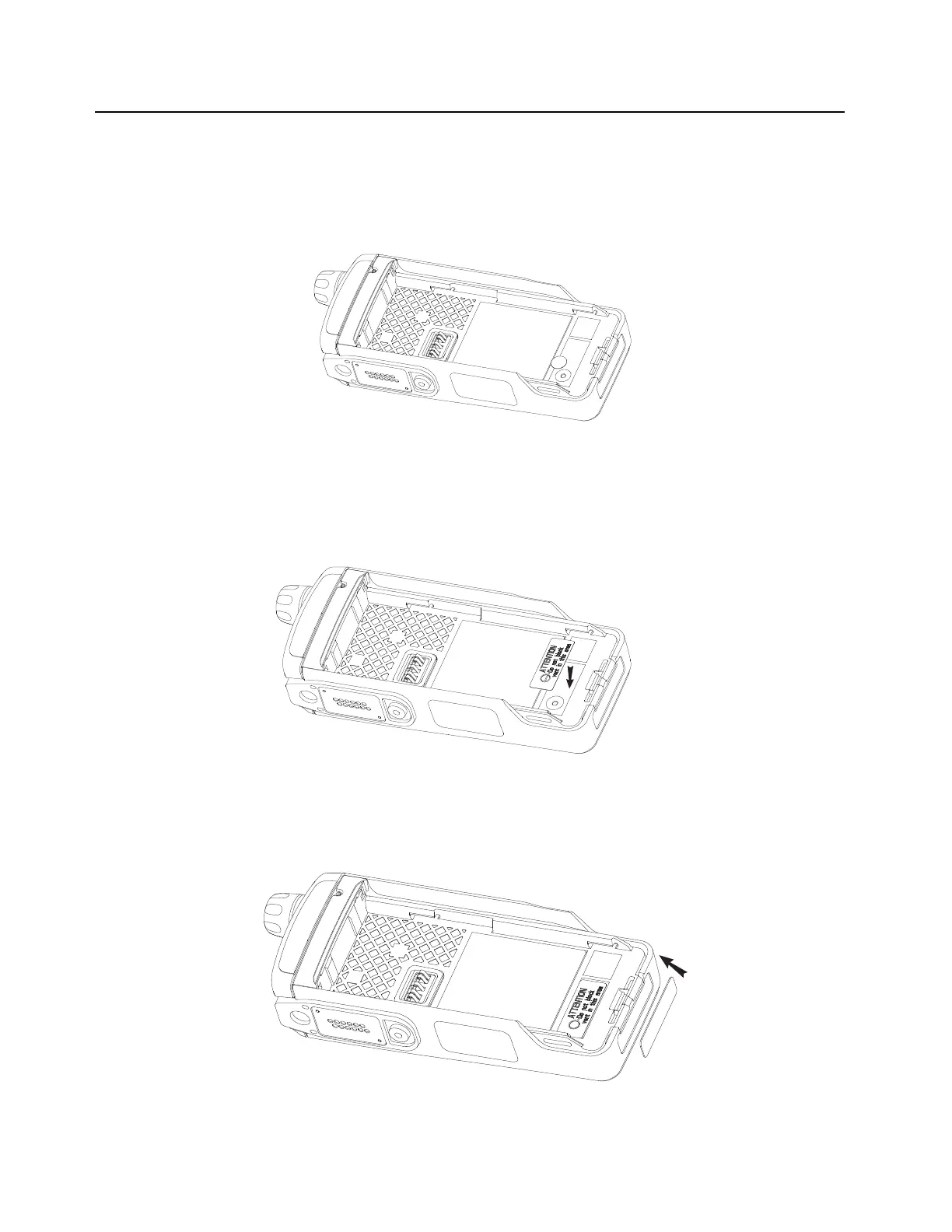

Figure 7-42. Assemble the Vacuum Port Seal
2. With the Vacuum Port Seal assembled, adhere the Ventilation Label (43) on the chassis’
recess as shown in Figure 7-43.
Figure 7-43. Assemble the Ventilation Label
3. Adhere the Bottom Label (17) on the recess at the bottom of the Front Housing as shown in
Figure 7-44.
Figure 7-44. Assemble the Bottom Label
