Removing the Antenna
Prerequisites: When removing the antenna, ensure that the radio is turned off.
Procedure:

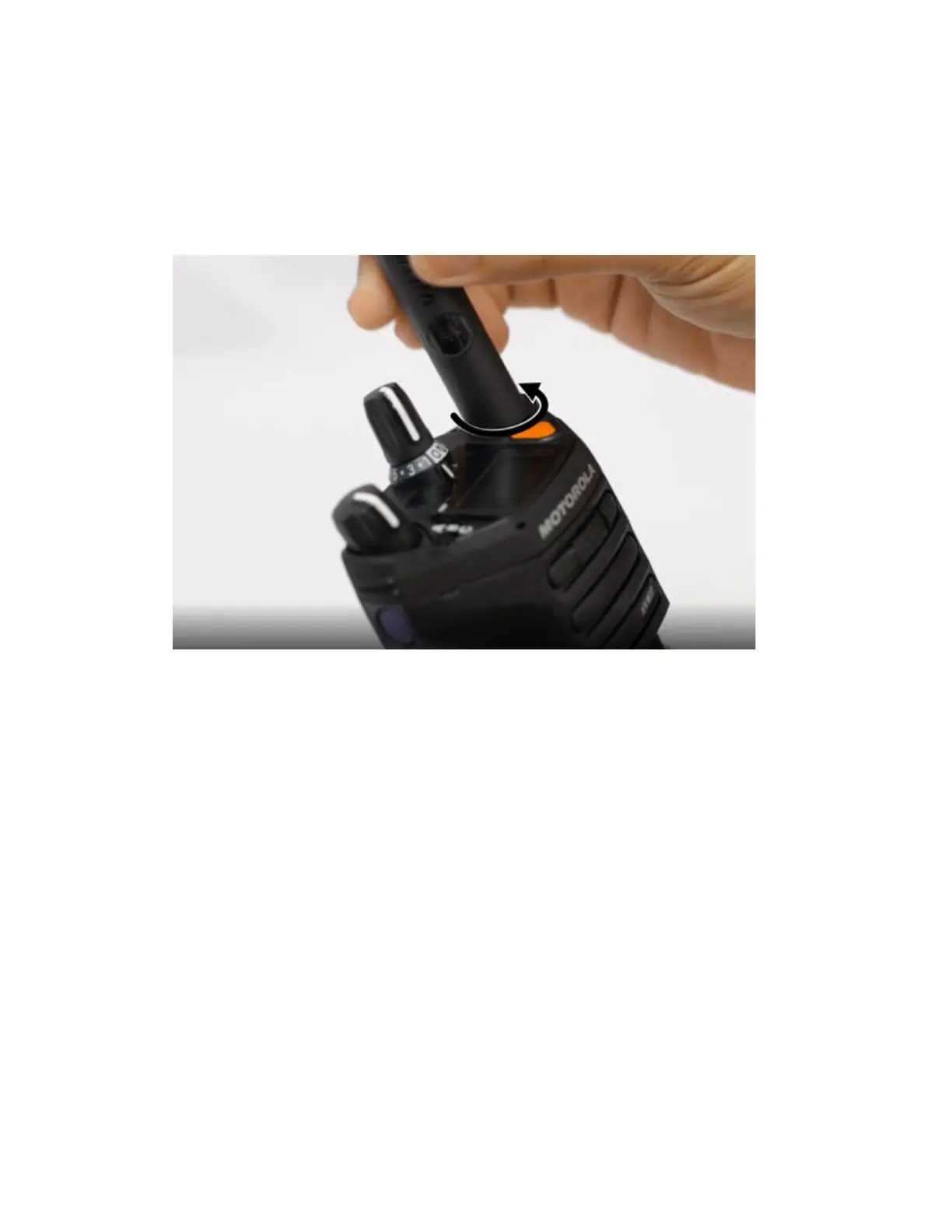

To remove the antenna, turn the antenna counterclockwise, then remove it from the receptacle.
4.3
Attaching and Removing the Accessory Connector Cover
To prevent damage to the accessory connector, shield it with the connector cover when not in use.
Attaching the Accessory Connector Cover
Procedure:
To attach the Accessory Connector Cover, perform the following actions:
a Insert the hooked end of the cover into the slot above the connector.
b Press the top of the cover down to seat it in the slot.
c Rotate the thumbscrew clockwise to tighten the cover.
MN005642A01-AN
Chapter 4 : Getting Started
26
