5.2.3
LED Indications
The LED indications represent the operational status of your radio. A qualified technician can
permanently disable the LED indication by preprogramming it.
Table 7: LED Indications
Indication Status
Solid red Radio is transmitting.
Double blinking red Radio is transmitting an emergency alarm or call.
Rapid blinking red Radio has failed the self-test upon powering up or encountered a fatal
error.
Solid yellow Channel is busy in conventional mode.
Blinking yellow Radio is receiving a secured transmission.
Solid green Radio is powering up.
Blinking green Radio is receiving an individual or telephone call.
5.2.4

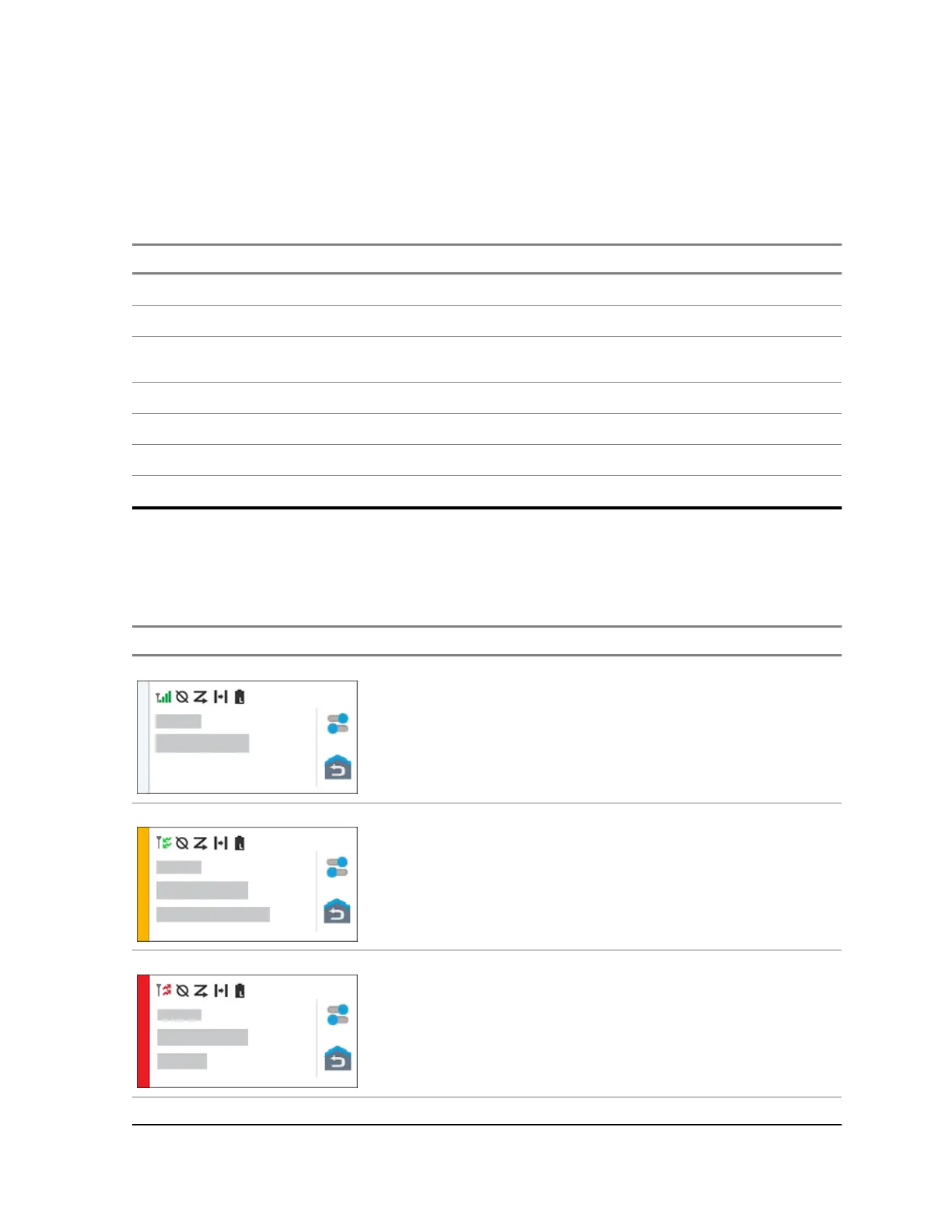

Transmit and Receive Indicator
The Transmit and Receive Indicator indicates the active call state of the radio.
Color Call State
Light Blue Open/Standby
Yellow Receiving and Unmuted
Red Voice Transmission
Gray Unprogrammed
MN005642A01-AN
Chapter 5 : Home Screen
39
