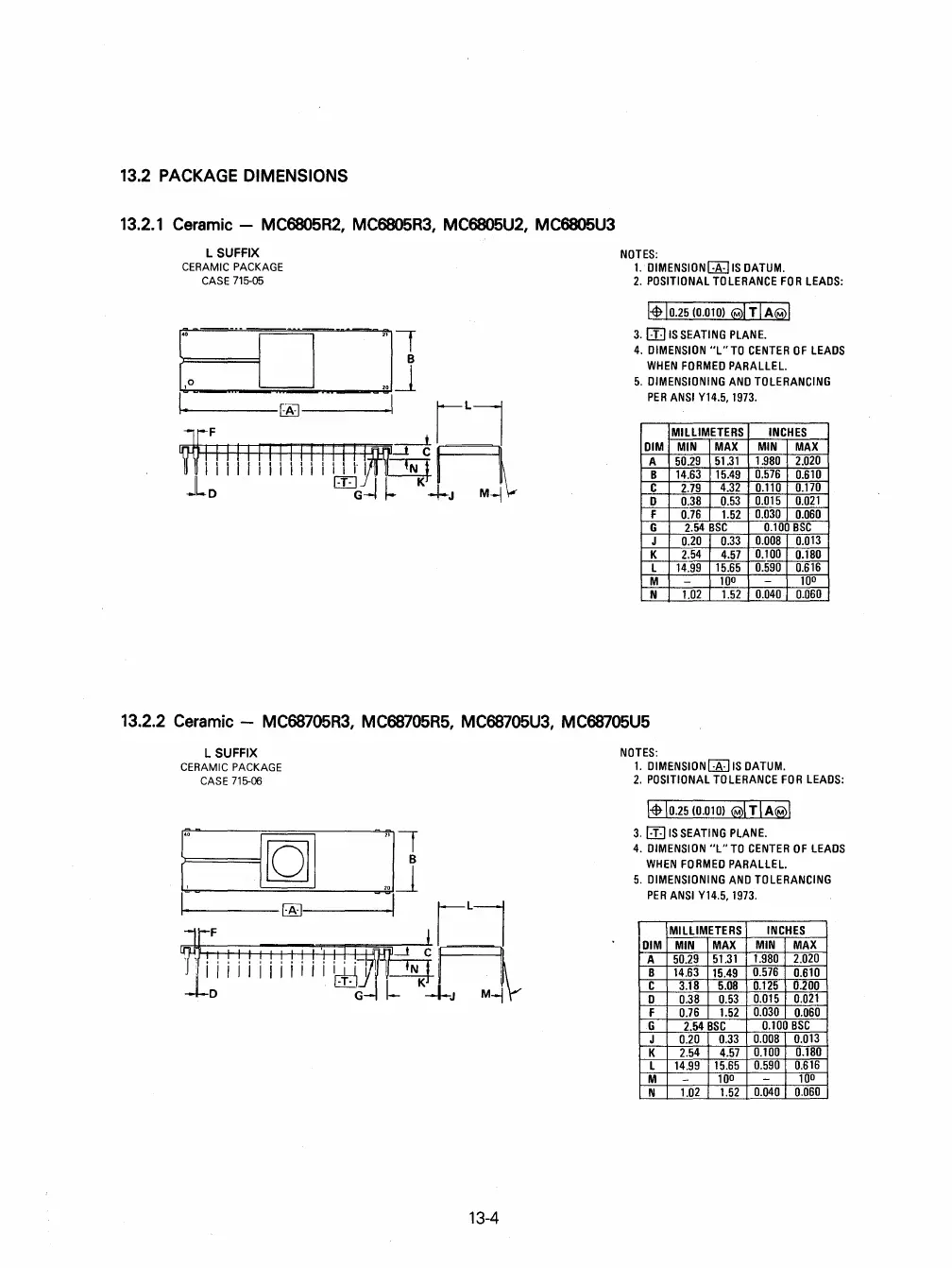

13.2 PACKAGE DIMENSIONS
13.2.1 Ceramic - MC6805R2, MC6805R3, MC6805U2, MC6805U3
L SUFFIX
CERAMIC PACKAGE
CASE 715-05
~I -------~------~
NOTES:
1. DIMENSIONWIS DATUM.
2. POSITIONAL TOLERANCE FOR LEADS:
\-$10.25 (0.010) el T 1 A(;:i)1
3. III IS SEATING PLANE.
4. DIMENSION "L"TO CENTER OF LEADS
WHEN FORMED PARALLEL.
5. DIMENSIONING AND TOLERANCING
PER ANSI Y14.5, 1973.
MILLIMETERS
INCHES
DIM MIN MAX MIN MAX
A
50.29
51.31
1.980
2.020
B
14.63 15.49
0.576
0.610
C 2.79
4.32 0.110 0.170
D
0.38 0.53
0.015 0.021
F
0.76 1.52
0.030
0.060
G
2.54 BSC
0.100 BSC
J 0.20 0.33
0.008 0.013
K 2.54
4.57
0.100
0.180
L 14.99
15.65
0.590 0.616
M
- 10
0
-
10
0
N 1.02
1.52 0.040 0.060
13.2.2 Ceramic - MC68705R3, MC68705R5, MC68705U3, MC68705U5
L SUFFIX
CERAMIC PACKAGE
CASE 715-06
It------[A]-----f
13-4
NOTES:
1. DIMENSIONW IS DATUM.
2. POSITIONAL TOLERANCE FOR LEADS:
\-$10.25 (0.010) e\ T \ Ael
3. III IS SEATING PLANE.
4. DIMENSION "LuTO CENTER OF LEADS
WHEN FORMED PARALLEL.
5. DIMENSIONING AND TOLERANCING
PER ANSI Y14.5, 1973.
MILLIMETERS INCHES
DIM MIN MAX
MIN MAX
A 50.29
51.31
1.980 2.020
B 14.63
15.49
0.576
0.610
C 3.18 5.08 0.125 0.200
0 0.38 0.53
0.015 0.021
F
0.76
1.52
0.030
0.060
G
2.54 BSC
0.100 BSC
J 0.20
0.33
0.008
0.013
K
2.54 4.57
0.100
0.180
L 14.99
15.65
0.590 0.616
M
-
10
0
-
10
0
N
1.02 1.52
0.040 0.060
