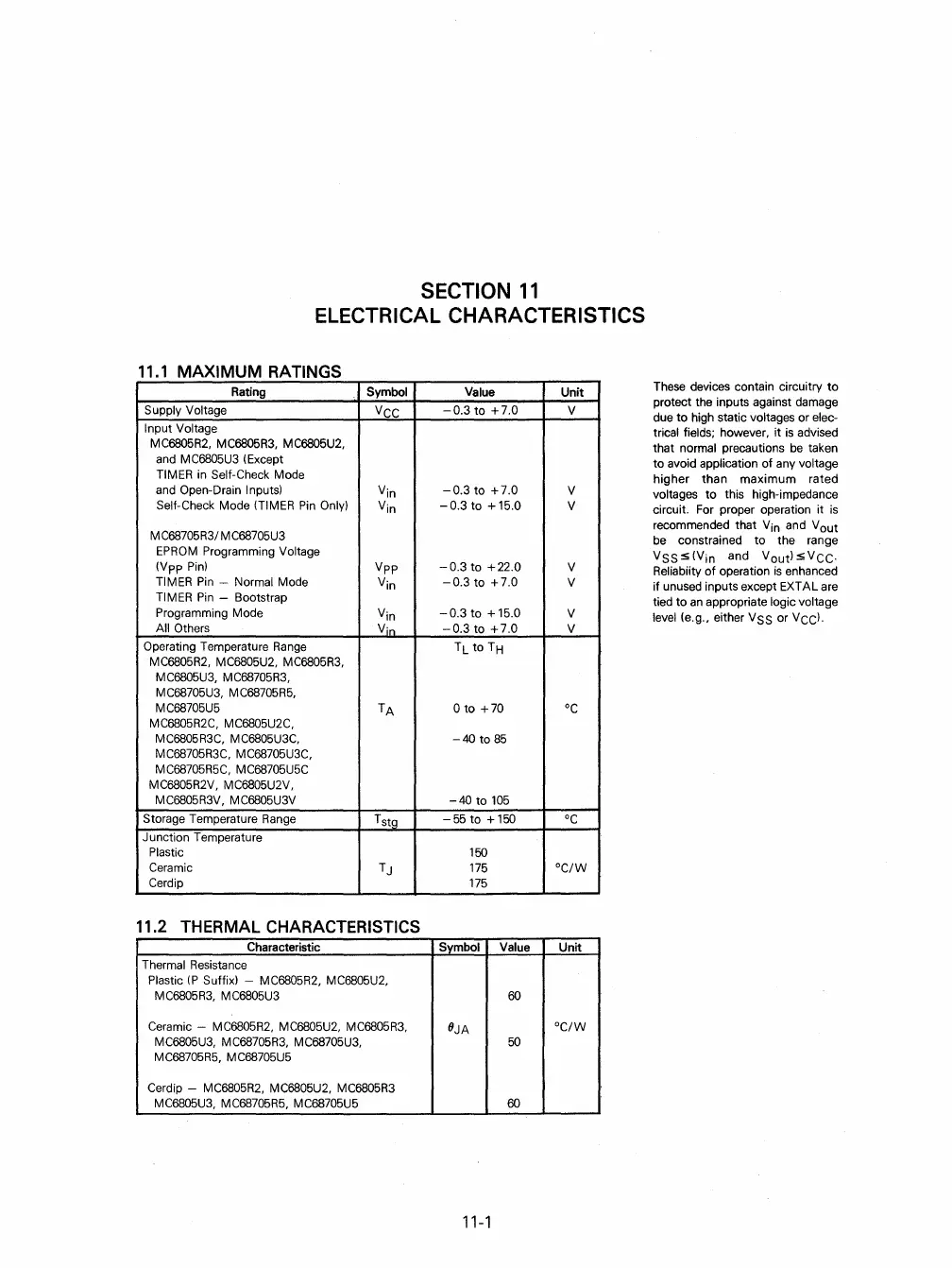

SECTION
11
ELECTRICAL CHARACTERISTICS
11
1 MAXIMUM RATINGS
Rating Symbol
Value
Unit
Supply Voltage
VCC
-0.3
to
+ 7.0
V
Input
Voltage
MC6805R2, MC6805R3, MC6805U2,
and MC6805U3 (Except
TIMER in Self-Check Mode
and Open-Drain Inputs)
Vin
-0.3
to
+ 7.0
V
Self-Check
Mode
(TIMER Pin Only)
Vin
-0.3
to
+15.0
V
M C68705R3/ M C68705U3
EPROM Programming Voltage
(Vpp
Pin)
Vpp
-0.3
to
+22.0
V
TIMER Pin - Normal Mode
Vin
-0.3
to
+ 7.0
V
TIMER Pin - Bootstrap
Programming
Mode
Vin
-0.3
to
+ 15.0
V
All Others
Vin
-0.3
to
+ 7.0 V
Operating Temperature Range
TL
to
TH
MC6805R2, MC6805U2, MC6805R3,
MC6805U3, MC68705R3,
MC68705U3, MC68705R5,
MC68705U5
TA
o
to
+ 70
°c
MC6805R2C, MC6805U2C,
MC6805R3C, MC6805U3C,
-40
to
85
MC68705R3C, MC68705U3C,
MC68705R5C, MC68705U5C
MC6805R2V, MC6805U2V,
MC6805R3V, MC6805U3V
-40
to
105
Storage Temperature Range
TstQ
-55
to
+ 150
°c
Junction
Temperature
Plastic
150
Ceramic
TJ
175
°C/W
Cerdip
175
11
2 THERMAL CHARACTERISTICS
Characteristic Symbol
Value
Unit
Thermal Resistance
Plastic
(P
Suffix) - MC6805R2, MC6805U2,
MC6805R3, MC6805U3
60
Ceramic - MC6805R2, MC6805U2, MC6805R3,
(JJA
°C/W
MC6805U3, MC68705R3, MC68705U3,
50
MC68705R5, MC68705U5
Cerdip - MC6805R2, MC6805U2, MC6805R3
MC6805U3, MC68705R5, MC68705U5
60
11-1
These devices contain circuitry
to
protect
the inputs against damage
due
to
high static voltages
or
elec-
trical fields; however,
it
is advised
that
normal precautions be taken
to
avoid application
of
any voltage
higher
than
maximum
rated
voltages
to
this high-impedance
circuit. For proper operation
it
is
recommended
that
Vin and
Vout
be constrained
to
the
range
VSSs(Vin
and
Vout)SVCC·
Reliabiity
of
operation
is
enhanced
if
unused inputs except EXT
AL
are
tied
to
an
appropriate logic voltage
level (e.g., either VSS
or
VCCl.
