Date ________________ Customer PO Number ________ _
CustomerCompany
__________________ _
Motorola Part Number
MC _____________ __
Address ________________________ __
SC ______________ _
City
_________________ State ______________ _
Zip
___ _
Country ____________________________________________ _
Phone __ ----- ___________________ __
Extension __________ _
Customer Part Number
_________________________________ _
MC6805R2/ U2/ R3/ U3 OPTION LIST
Select the options for your MCU from the following list. A manufacturing mask
will be generated from this information.
Internal Oscillator Input
o Crystal
o Resistor
Port A
Output Drive
o CMOS and TTL
o TTL Only
Low Voltage Inhibit
o Disable
o Enable
Port C Output Drive
o TTL
o Open-Drain
Timer
Clock Source
MC6805R2/U2 Only
o Internal (jJ2 clock
o TIMER input pin
Pattern Media (All other media requires prior factory approval)
o EPROMs (MCM2716 or MCM2532)
o Floppy Disk
Timer Prescaler
MC6805R2/U2 Only
o 20 (divide by 1)
o 21 (divide by 2)
o 22 (divide by 4)
o 23 (divide by 8)
o 24 (divide by 16)
o 2
5
(divide by 32)
o 26 (divide by 64)
o 27 (divide by 128)
o Other* ______________________________________________ _
Clock Frequency ____________________ _
Temperature Range ______________________ _
Marking
Information (12 Characters Maximum)
O°C to + 70°C (Standard)
-
40°C to + 85°C
-40°C to + 105°C
Title
______________________________________ __
Signature ________________________________ __

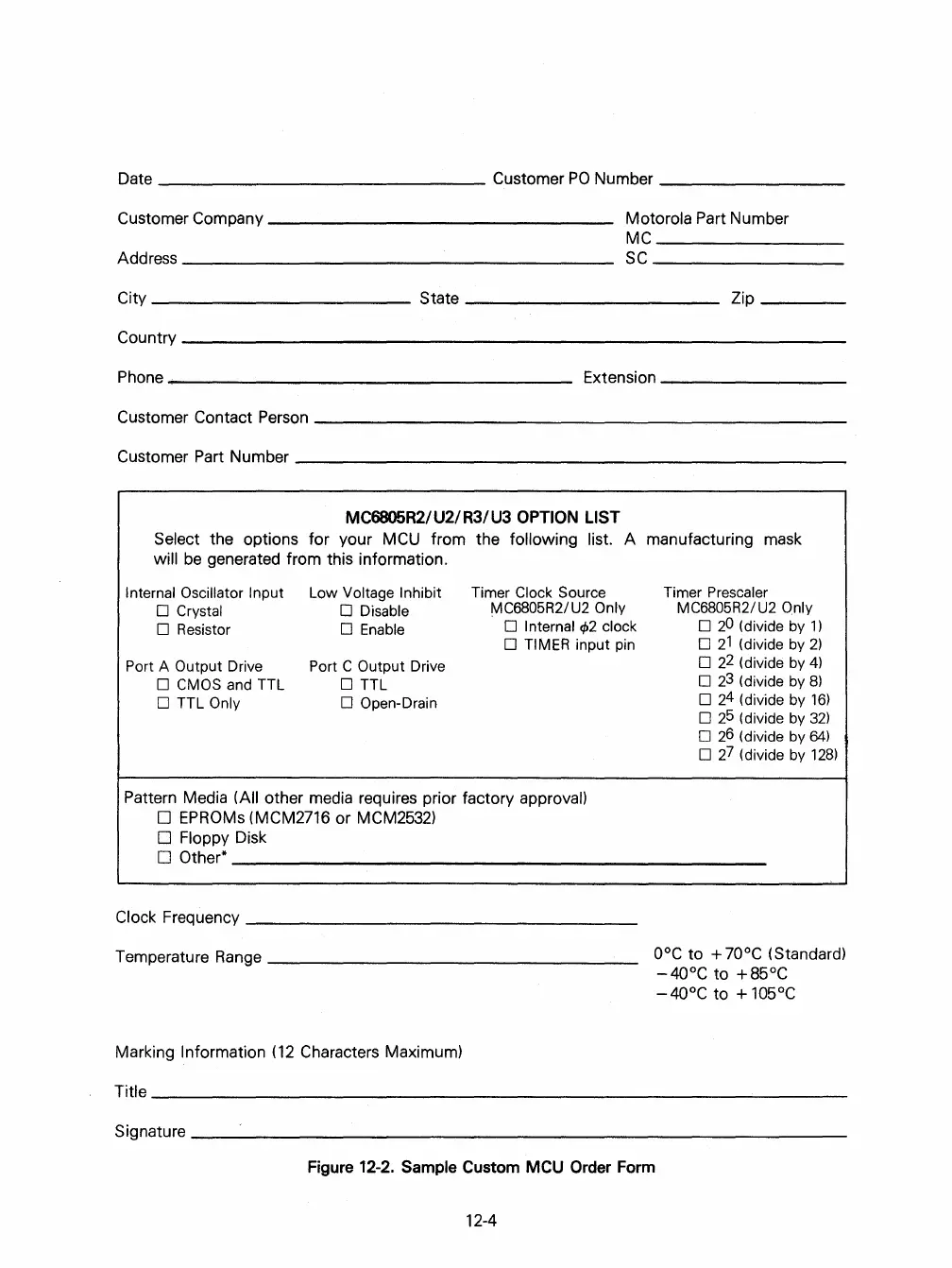

Figure 12-2. Sample Custom MCU Order Form
