Keypad
The mobile computer has a modular keypad. The modular keypad can be removed in the field as necessary.
Keypad removal is required to replace the MMC card.
Keypad Removal
1. Press the Power button to suspend the mobile computer.
2. Remove the two keypad screws. Slide the keypad down and lift up.

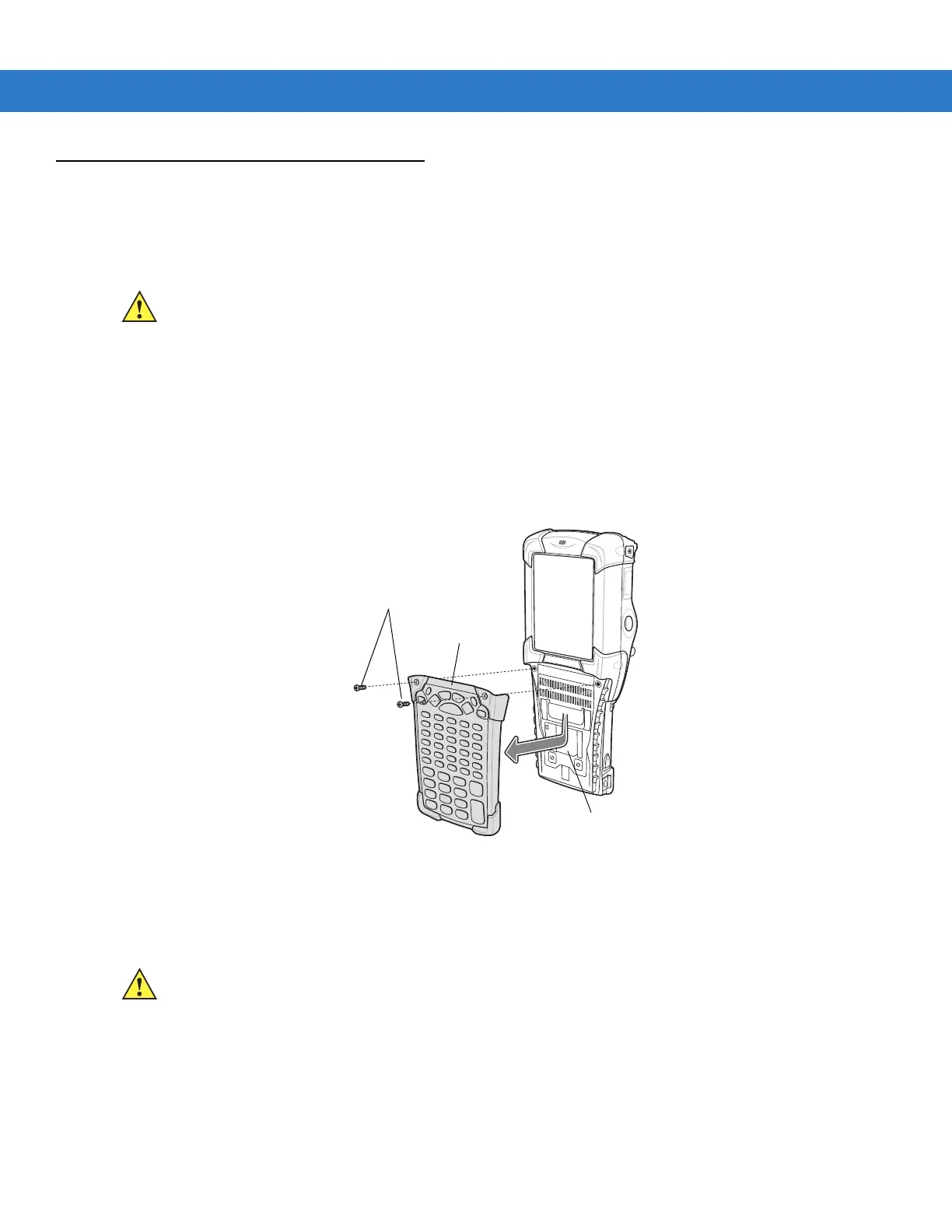

Figure 2-1
Removing the Keypad
3. Replace the keypad and re-attach using the two screws.
CAUTION Do not remove the keypad while the mobile computer is on and do not operate the mobile computer
with the keypad detached. Follow proper Electro-Static Discharge (ESD) precautions to avoid
damaging the MMC and SD card. Proper ESD precautions include, but are not limited to, working on
an ESD mat and ensuring that the operator is properly grounded.
MC909X keypads are not interchangeable with MC9090-G RFID keypad.
Multi Media Card Holder
Keypad
Screws
CAUTION Do not apply more than 4 in-lbs of torque when tightening the keypad screws.
