Program Tag
Tap File->Program Tag, RFID- Program Tag window appears.

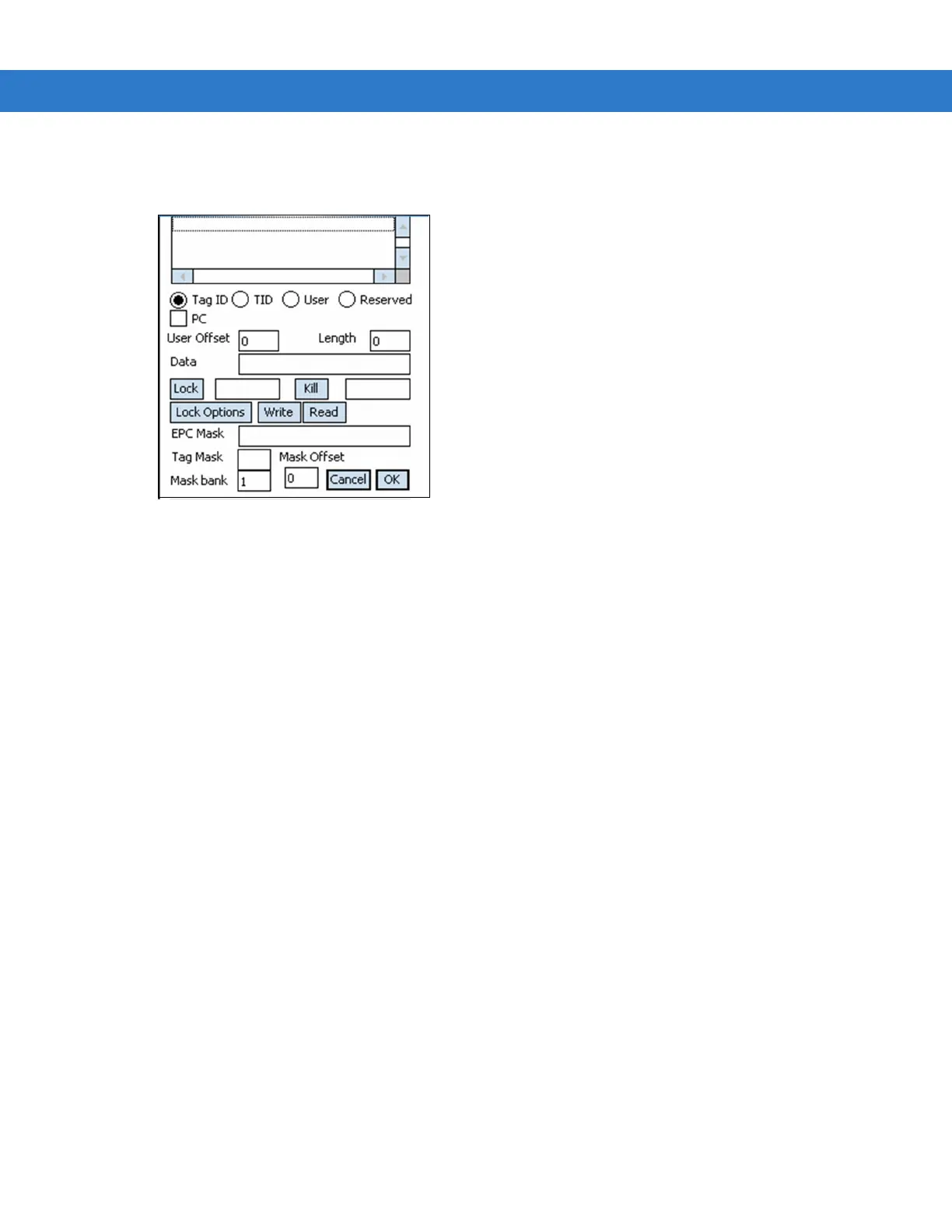

Figure 4-6
Program Tag Window
Reader Program Tag Settings:
•
Reserved: Reserved memory bank access operation
•
EPC: EPC memory bank access operation
•
TID: TID memory bank access operation
•
PC: Select the check box to display the PC field data along with Tag ID
•
User: User memory bank access operation
•
User Offset:
A16-bit word address at which to start reading/writing. Does not hold good for EPC read as EPC read always
returns contents of the complete memory bank.
•
Length: Number of 16-bit words to read.
•
Data: Tag Write data is provided.
•
Lock:
Tap
Lock
to send the lock command to the tag. If a valid (non zeros) access password is stored in the tag,
then the access password is required to lock the tag.
•
Kill:
Tap
Kill
to permanently kill the tag. To kill a tag, a valid kill code has to be stored in the tag and kill code is
required to kill the tag
•
Read:
Tap
R
ead
to send the read command to the tag. If the tag is locked with valid (non zeros) access password
stored in the tag, then password access is required to read the reserved memory bank. Other memory banks
can be read without supplying access password.
•
Write button:
Tap Write to send the write command to the tag. If the tag is locked with valid (non zeros) access password,
then password access is required to write to the tag.
•
