Motorola MX101 - Digital Scanner Signal Descriptions

9 - 4 MX101 PRODUCT REFERENCE GUIDE
Digital Scanner Signal Descriptions

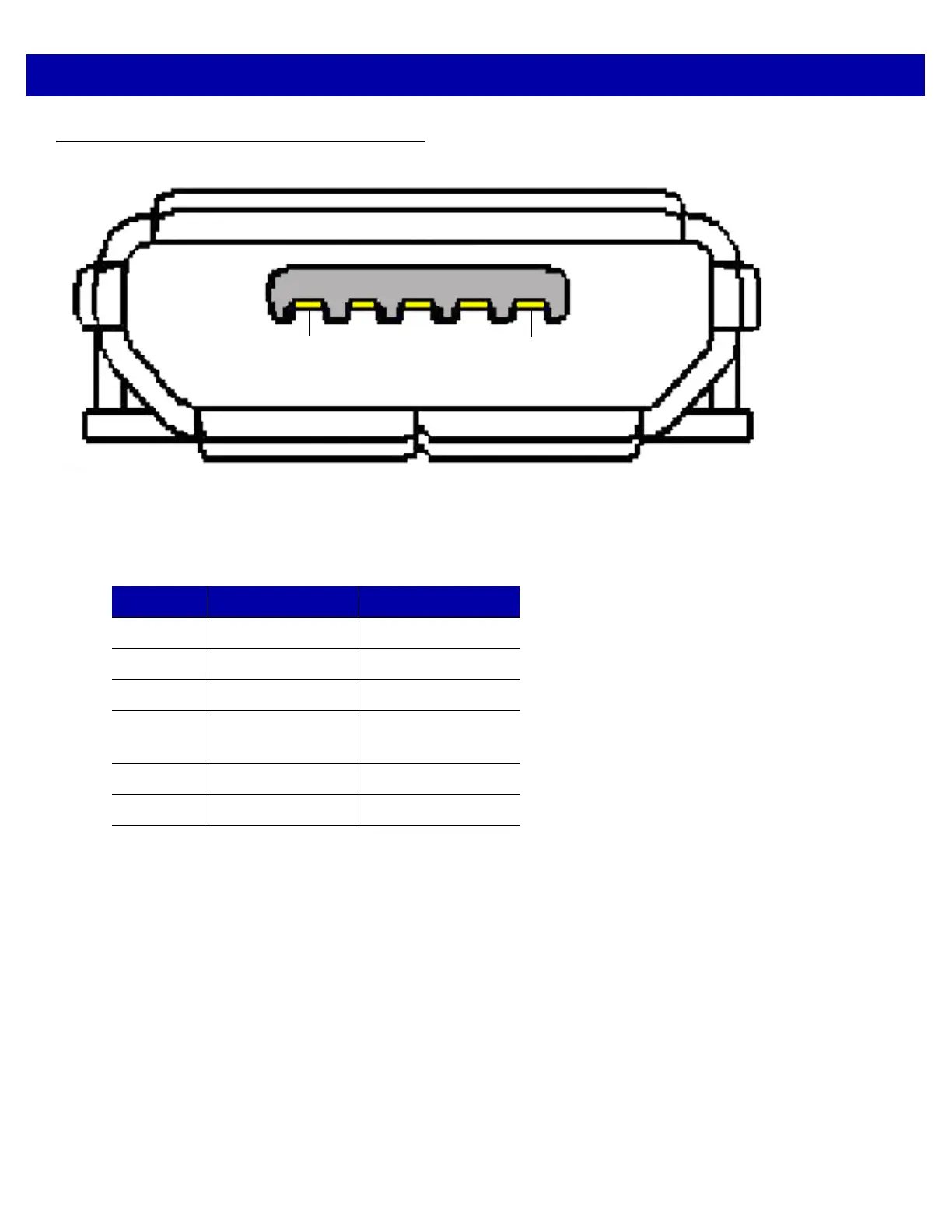

Figure 9-1 Digital Scanner Cable Pinouts
The signal descriptions in Table 9-2 apply to the connector on the MX101 digital scanner.
Micro-B
1
5
Table 9-2 USB Connector Pin-outs
Pin Signal Function
1 5VDC USB 5V
2 D- USB Data-
3 D+ USB Data+
4 DOWNLOAD Active High
Download PIN
5 GND Circuit GND
SHELL GND_CHAS Chassis GND
