Moxa Managed Ethernet Switch (UI_2.0_FW_5.x) User Manual
Port Mirroring
The Port Mirroring f unction can be used to monitor data being transmitted through a specif ic port. This is
done by setting up other port(s) (the mirror port) to receive the same data being transmitted f rom, or both
to and from, the port under observation. Using a mirror port allows the network administrator to sniff the
observed port to keep tabs on network activity.

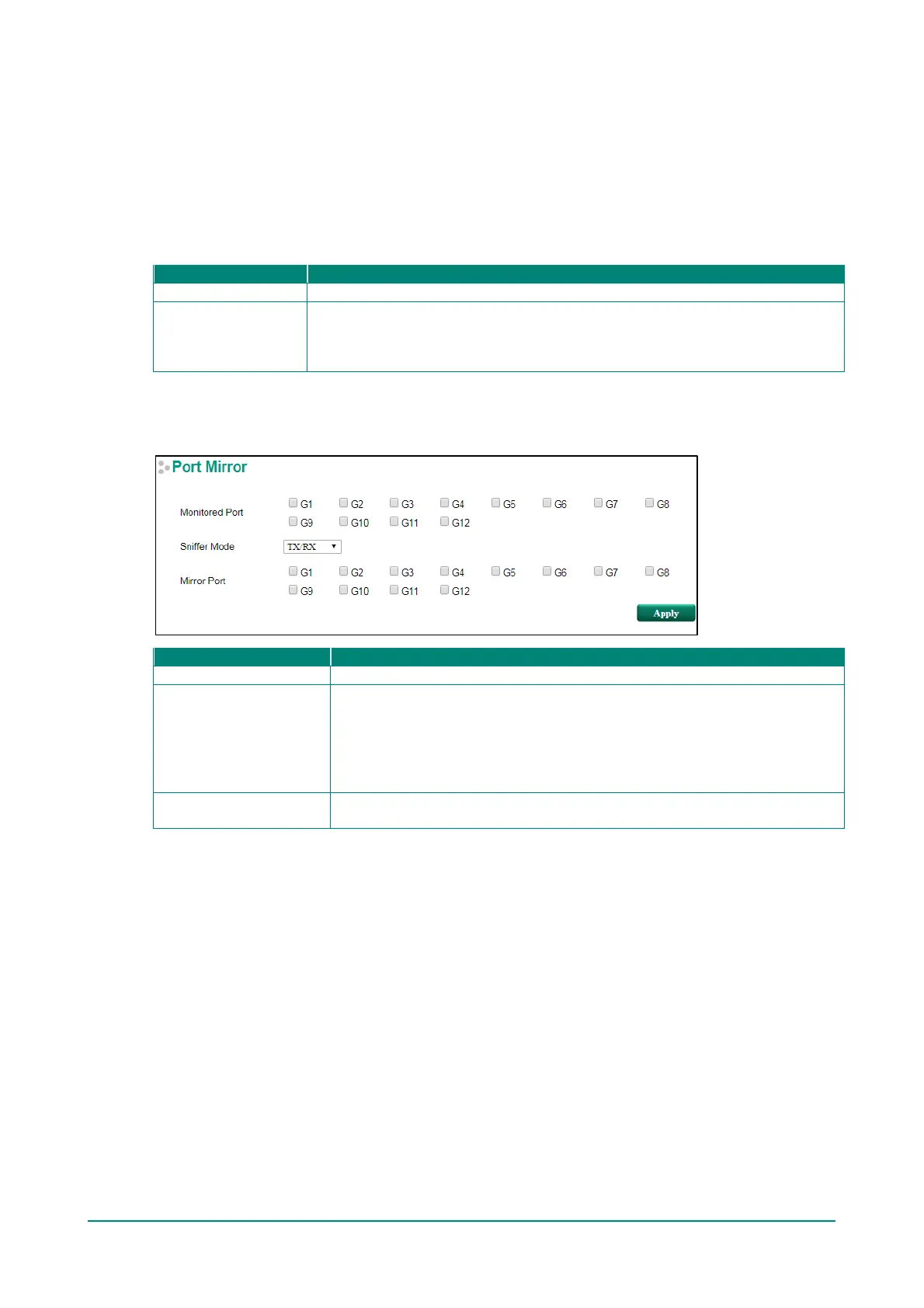

Port Mirror Settings
There are two types of port mirror f unction, depending on the series you are using.
EDS-G508E, EDS-G512E-4GSFP, EDS-G516E-4GSFP, EDS-G512E-8PoE
Type 2
EDS-510E, EDS-518E, EDS-528E, EDS-P506E-4PoE, IKS-6726A, IKS-6728A, IKS-
6728A-8PoE, IKS-G6524A, IKS-G6824A, ICS-G7526A, ICS-G7826A, ICS-G7528A,
ICS-G7828A, ICS-G7748A, ICS-G7848A, ICS-G7750A, ICS-G7850A, ICS-G7752A,
ICS-G7852A, PT-G7728, PT-G7828
Type 1
For type 1, the mirror port can be set to more than one port (many-to-many).
Select which ports will be monitored
Sniff er Mode
Select one of the f ollowing options:
• RX: Select
this option to monitor only those data packets coming into Moxa’s
switch.
• TX: Select this option to monitor only those data packets being sent out
through Moxa’s switch.
• TX/RX: Select this option to monitor data packets both coming in, and being
sent out through, Moxa’s switch.
Mirror Port
Select the number of the port(s) that will be used to monitor the activity of the
monitored port.
