Moxa Managed Ethernet Switch (UI_2.0_FW_5.x) User Manual
Configuring a Virtual LAN
To conf igure 802.1Q VLAN and port-based VLANs on the Moxa switch, use the VLAN Settings page to
conf igure the ports f or either an 802.1Q VLAN or Port-based VLAN.
VLAN Mode
Sets VLAN mode to 802.1Q VLAN
802.1Q VLAN
Sets VLAN mode to Port-based VLAN

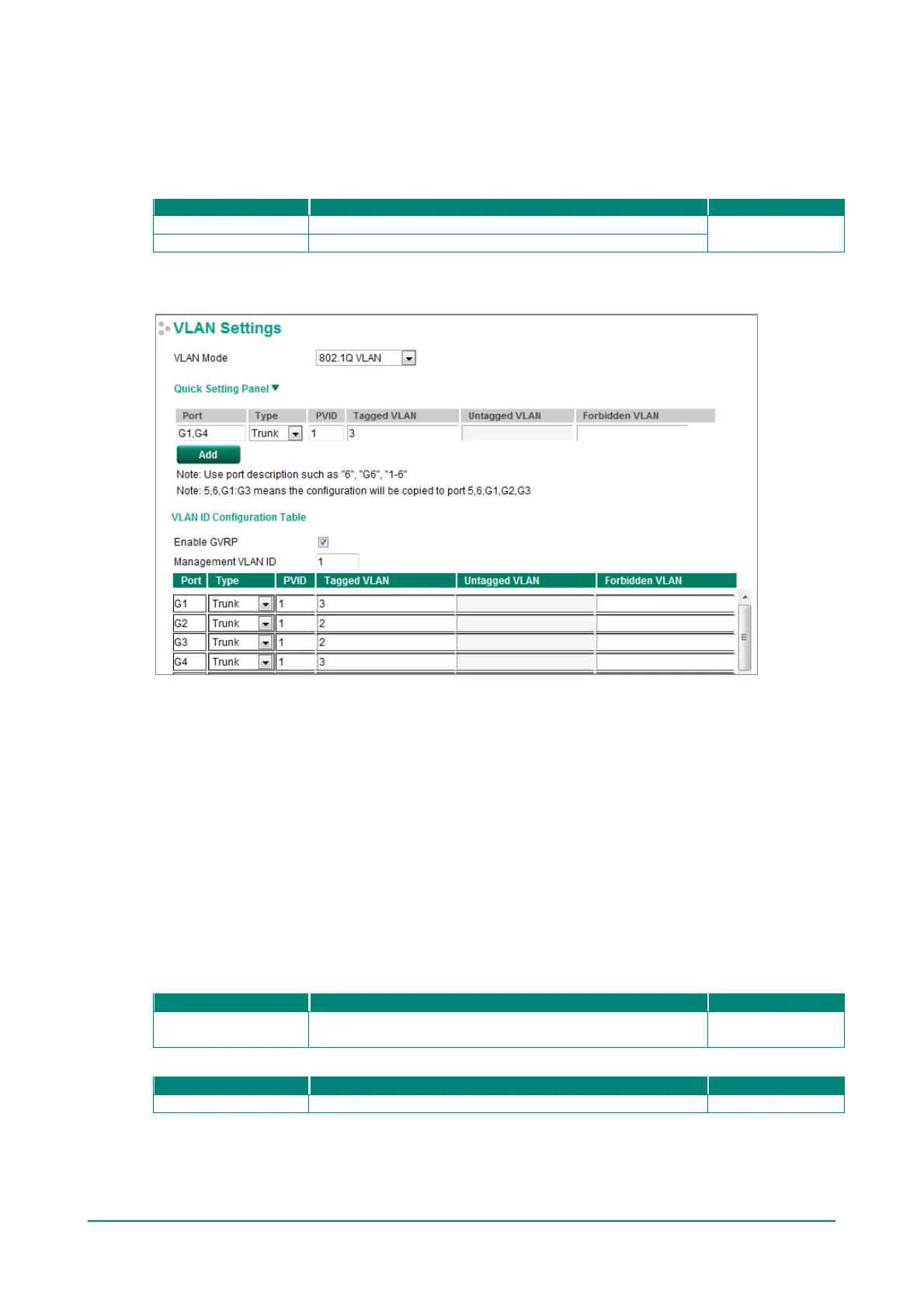

VLAN Settings: 802.1Q
When VLAN Mode is set to 802.1Q VLAN, the conf iguration options will be divided into the Quick Setting
Panel and VLAN ID Configuration Table. The Quick Setting Panel is generally used to conf igure VLAN
settings f or groups of ports, with the settings pushed down to the VLAN ID Conf iguration Panel when the
user clicks the Add button. The VLAN ID Conf iguration Table can be used to conf igure the settings f or
individual ports.
Quick Setting Panel
The EDS E series provides a Quick Setting Panel that administrators can use to quickly conf igure VLAN
settings for single ports or groups of ports. To configure a group of ports, type the port names in the Port
column, separated commas (,) f or individual port names, or colons (:) to indicate a range of ports. For
example, typing “G1,G3” applies the settings to ports G1 and G3, whereas typing “G1:G3” applies the
settings to ports G1, G2, and G3. Next, if necessary configure Type, PVID, Tagged VLAN, Untagged
VLAN, and Forbidden VLAN, and then click the Add button to move the settings down to the table at the
bottom of the window.
VLAN ID Configuration Table
Enable GVRP
Checked/Unchecked
Check the checkbox to enable the GVRP f unction. Remove the
checkmark to disable the GVRP f unction.
Disabled
Management VLAN ID
Assigns the VLAN ID to this Moxa switch.
