MAC Address Table
The MAC address table shows the MAC address list passed through the Moxa switch. The Aging Time (15 to
3825 seconds) def ines the length of time that a MAC address entry can remain in the Moxa switch. When an
entry reaches its aging time, it “ages out” and is purged from the switch, effectively cancelling frame
forwarding to that specific port.

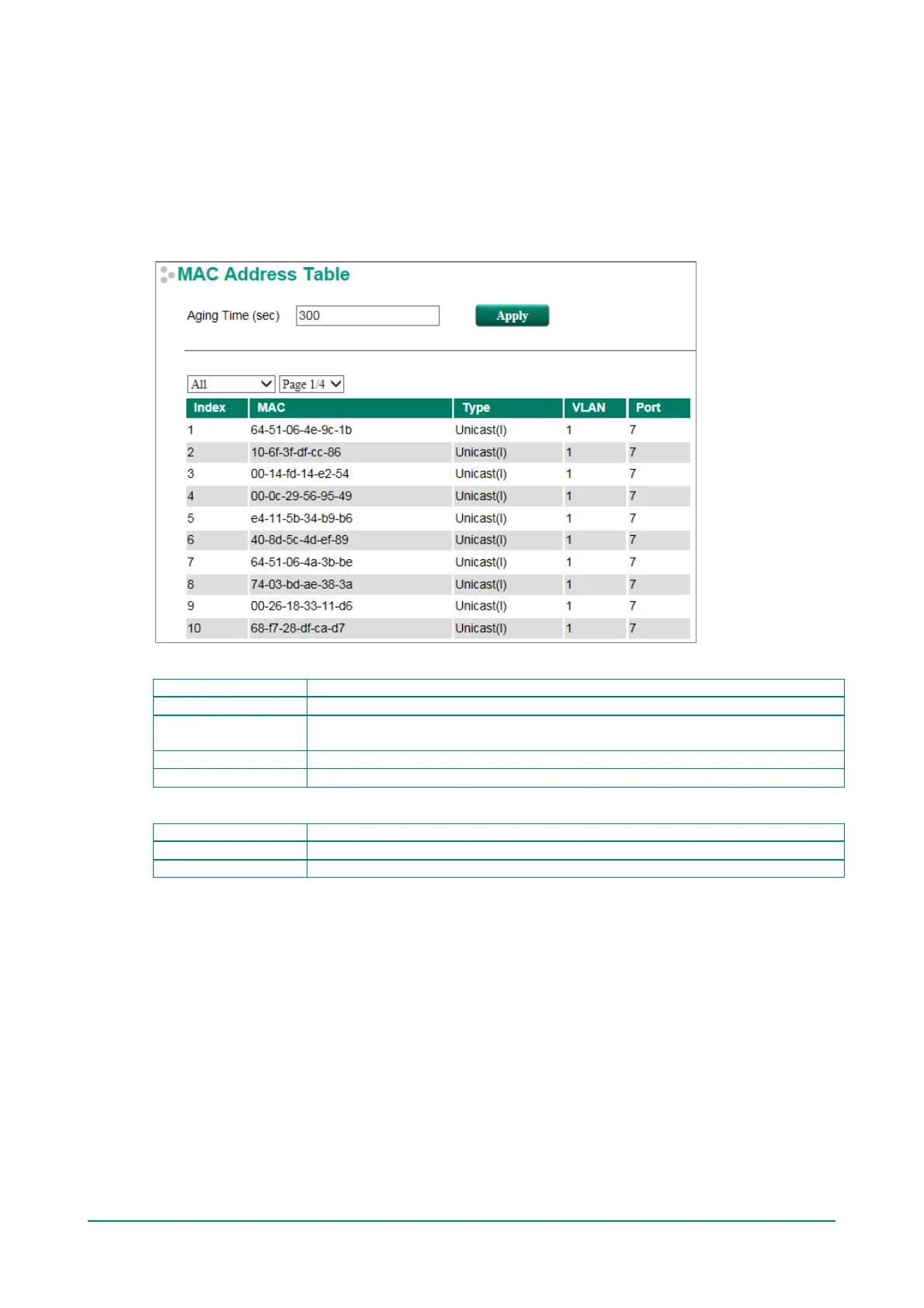

The MAC Address table can be conf igured to display the f ollowing Moxa switch MAC address groups, which
are selected from the drop-down list.
Drop Down List
ALL
Select this item to show all of the Moxa switch’s MAC addresses.
ALL Learned Select this item to show all of the Moxa switch’s Learned MAC addresses.
ALL Static
Select this item to show all of the Moxa switch’s Static, Static Lock, and Static
Multicast MAC addresses.
ALL Multicast
Select this item to show all of the Moxa switch’s Static Multicast MAC addresses.
Port x
Select this item to show all of the MAC address’s dedicated ports.
The table displays the f ollowing inf ormation:
MAC
This field shows the MAC address.
Type
This field shows the type of this MAC address.
Port
This field shows the port that this MAC address belongs to.
