VLAN Name Setting
Setting
Description
Factory Default
Name
The VLAN name can only include these characters, a-z/A-Z/0-
9/-/_/
Null

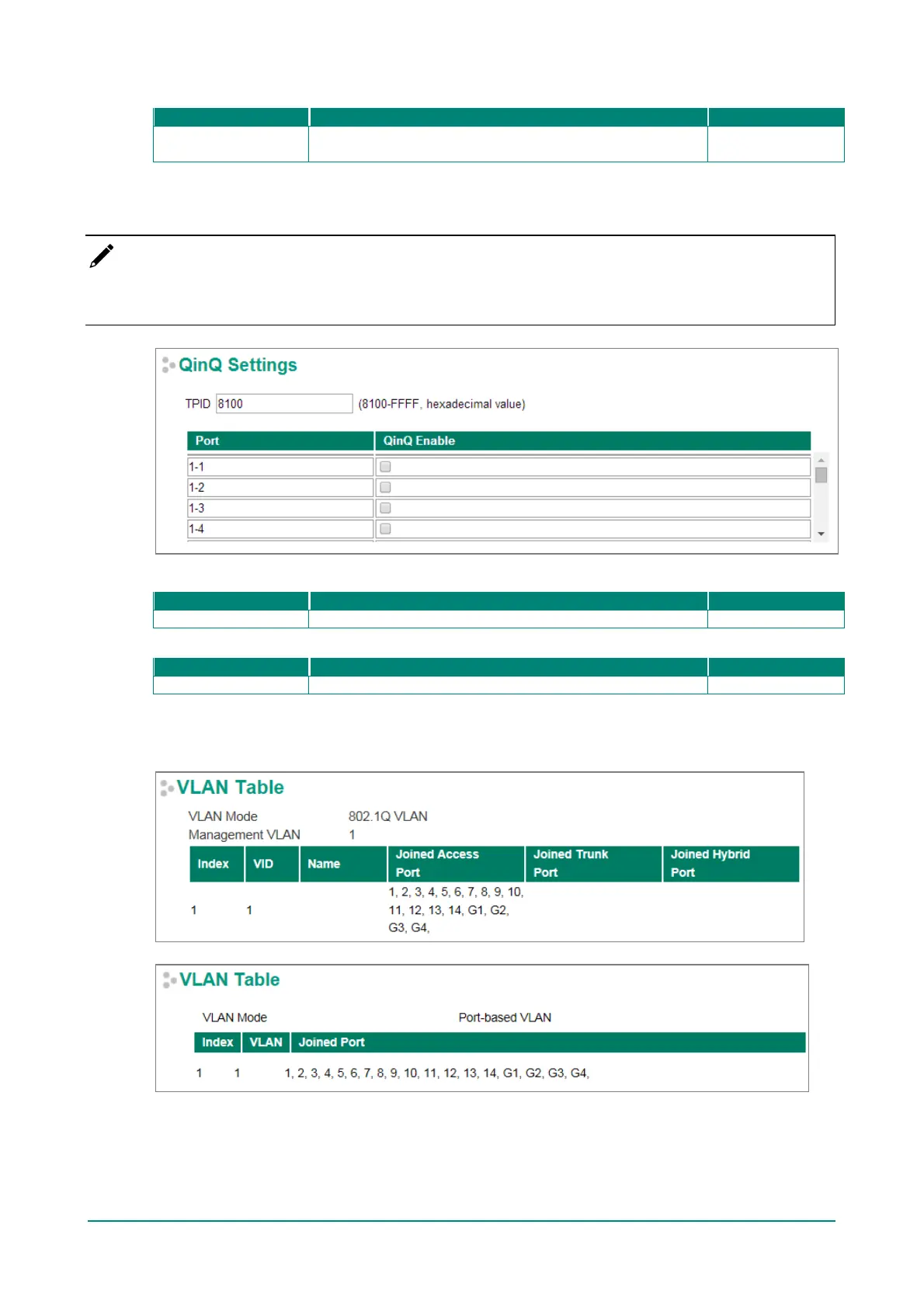

QinQ Settings
NOTE
Moxa’s layer 3 switches support the IEEE 802.1ad QinQ f unction, which allows users to tag double VLAN
headers into a single Ethernet f rame.
TPID
Setting
Description
Factory Default
8100 to FFFF
Assign the TPID of the second VLAN tag
8100
QinQ Enable
Setting
Description
Factory Default
Enable/Disable
Enable VLAN QinQ f unction
Disable
VLAN Table
Use the 802.1Q VLAN table to review the VLAN groups that were created, VLAN Name, Joined Access
Ports, Trunk Ports, and Hybrid Ports, and use the Port-based VLAN table to review the VLAN groups
and Joined Ports.
