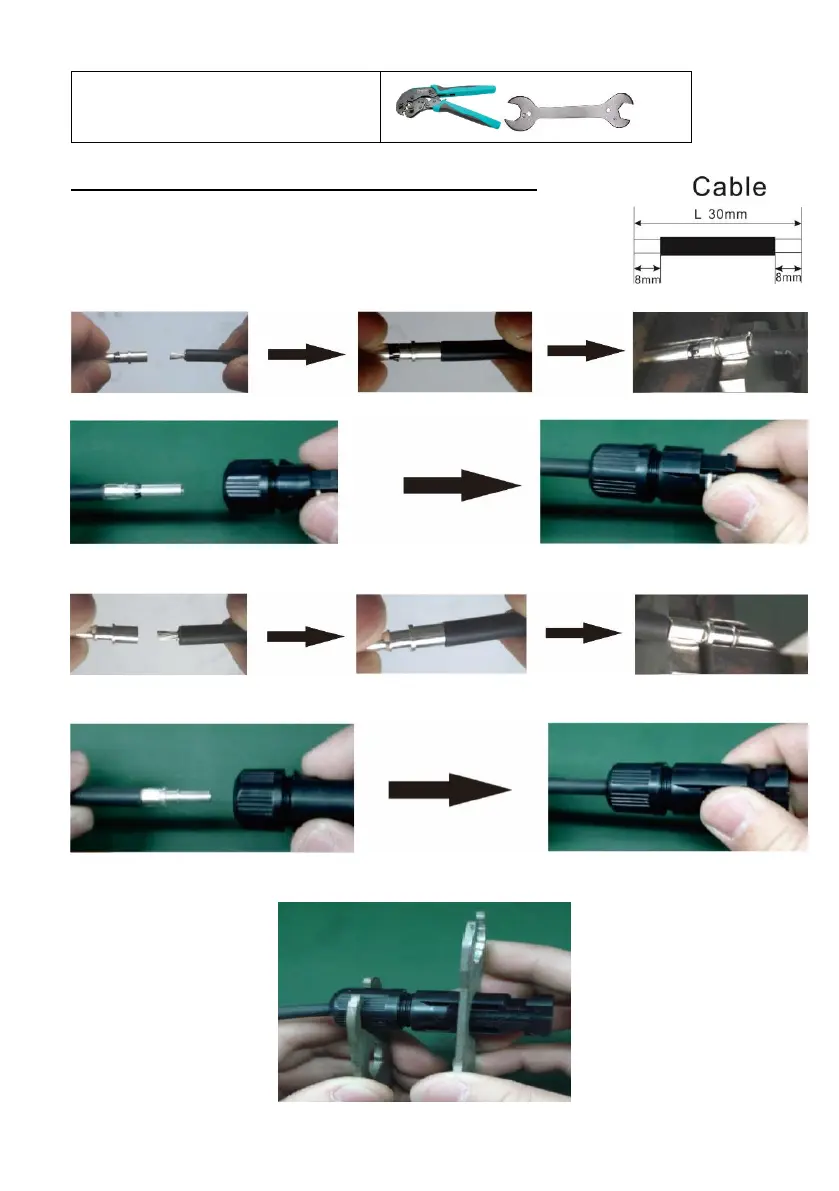

Cable preparation and connector assembly process:
Strip one cable 8 mm on both end sides and be careful NOT to
nick conductors.
Insert striped cable into female terminal and crimp female
terminal as shown below charts.
Insert assembled cable into female connector housing as shown below charts.
Insert striped cable into male terminal and crimp male terminal as shown below charts.
Insert assembled cable into male connector housing as shown below charts.
Then, use spanner to screw pressure dome tightly to female connector and male
connector as shown below.
