14
8. Load (AC Output) Connection
8-1. Preparation
CAUTION: To prevent further supply to the load via the inverter during any mode of
operation, an additional disconnection device should be placed on in the building wiring
installation.
WARNING! It's very important for system safety and efficient operation to use
appropriate cable for AC connection. To reduce risk of injury, please use the proper
recommended cable size as below.
208/220/230/240 VAC per phase
Conductor cross-section (mm
2
)
8-2. Connecting to the AC output

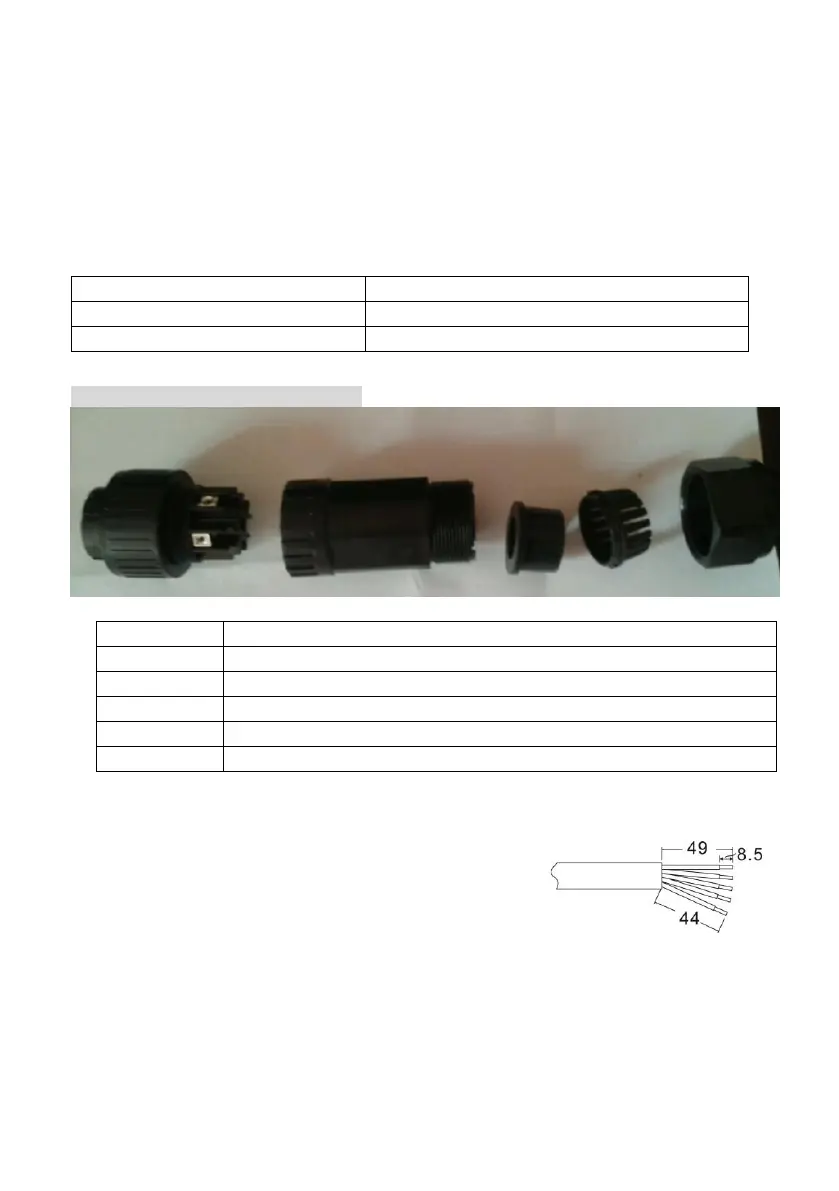

Overview of Load Connection Socket
Step 1: Remove insulation sleeve 8.5 mm for five conductors.
Step 2: Thread the five cables through pressure dome
(A), clip (B), sealing nut (C) and protective element (D)
in sequence.
Step 3: Thread five cables through socket element (E)
according to polarities indicated on it and tighten the
screws to fix wires after connection.
To Next Page
