L1→ LINE 1 (Black)
L2→ LINE 2 (Grey)
L→ LINE 3 (Brown)
→ Ground (Yellow-Green)
N→ Neutral (Blue)
The reference tightening torque is 1.0-1.5 N.m.

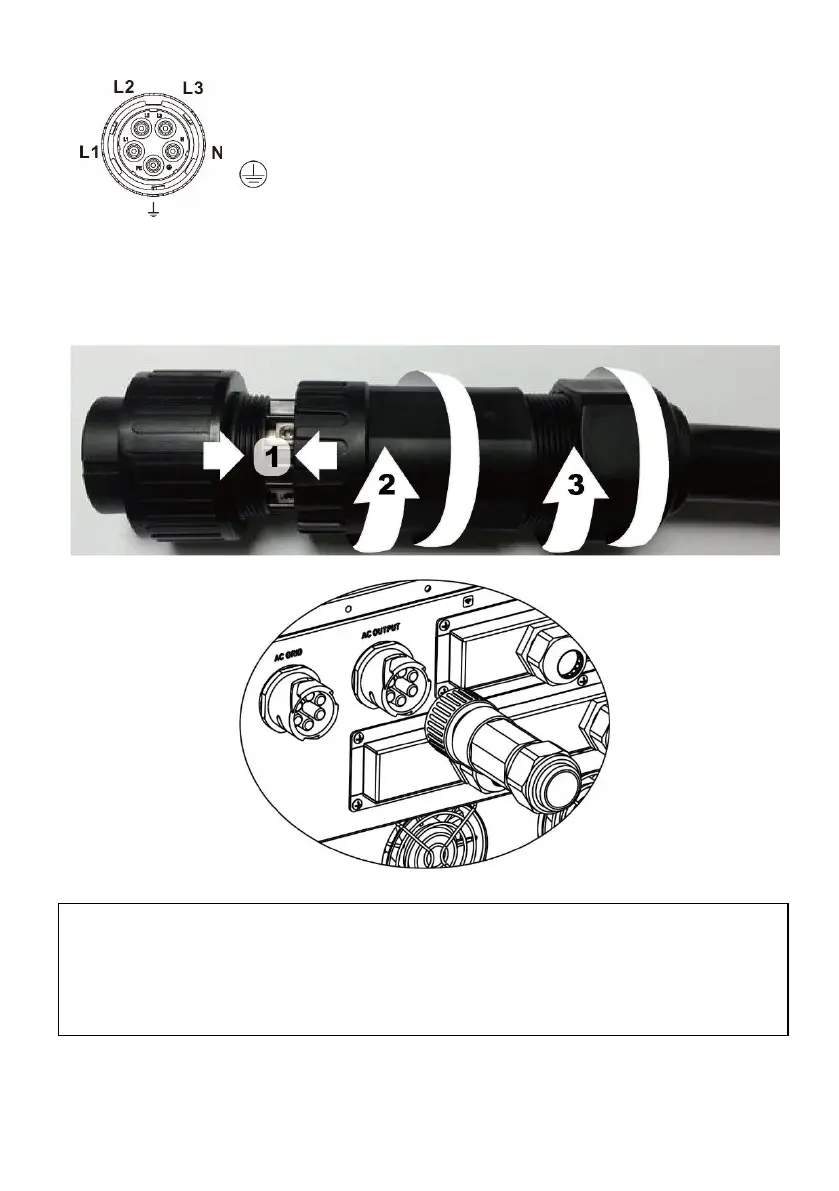

Step 4: Push protective dome (D) on to socket element (E) until both are locked tightly.
Then, twist protective element (D) and pressure dome (A) so that all cables are firmly
connected.
Step 5: Plug the socket into the terminal.
CAUTION: It’s only allowed to connect load to “AC Output Connector”. Do NOT connect
the utility to “AC Output Connector”.
CAUTION: Be sure to connect L terminal of load to L terminal of “AC Output Connector”
and N terminal of load to N terminal of “AC Output Connector”. The G terminal of “AC
Output Connector” is connected to grounding of the load. Do NOT mis-connect.

MPP Solar MPI 12KW WP Specifications

General

Brand	MPP Solar
Model	MPI 12KW WP
Category	Inverter
Language	English
