3. Unpacking & Overview
3-1. Packing List
Before installation, please inspect the unit. Be sure that nothing inside the package is
damaged. You should have received the following items inside of package:
Inverter unit PV connectors AC connector Fixing screws Parallel cables
Software CD Manual RS-232 cable Share current cable
3-2. Product Overview

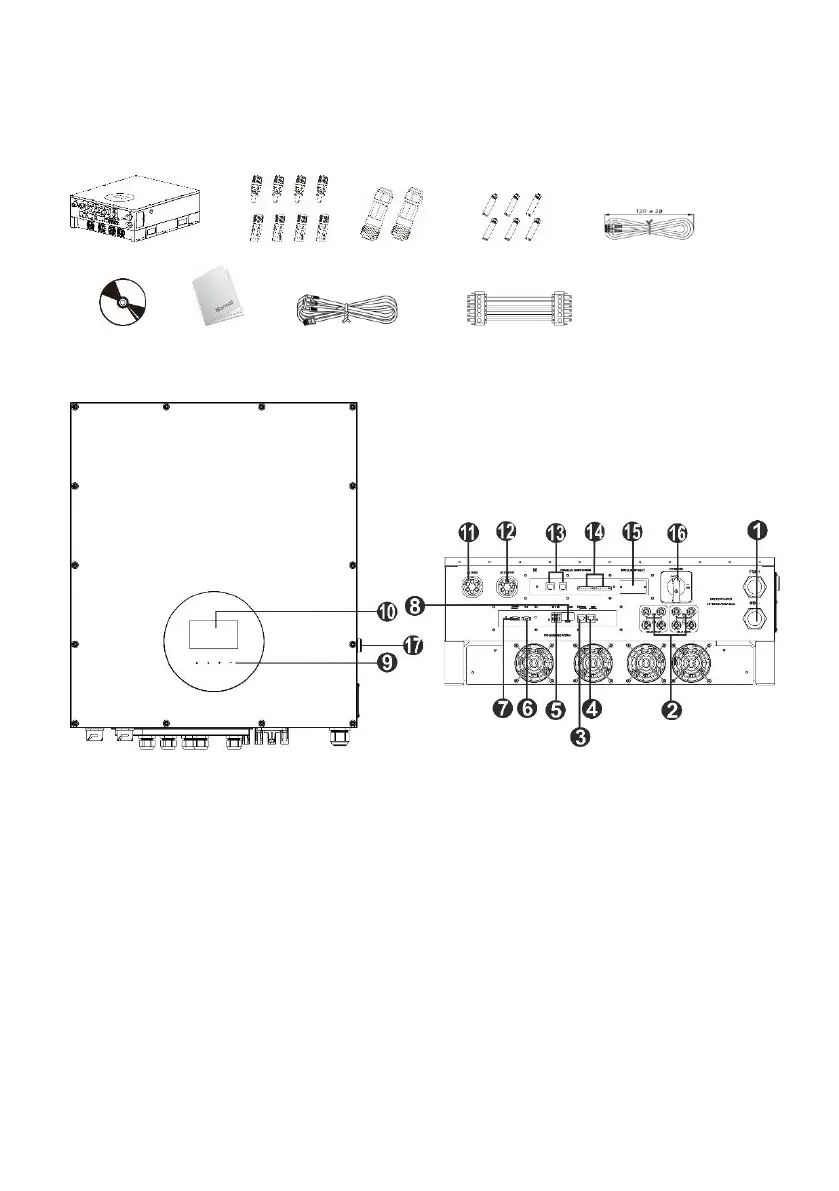

1) Battery connectors
2) PV connectors
3) RS-232 communication port
4) BMS
5) Dry contact
6) EPO
7) Battery thermal sensor
8) USB communication port
9) Touchable buttons
10) LCD display panel (Please check
section 14 for detailed LCD
operation)
11) AC Grid connectors
12) AC output connectors (Load
connection)
13) Parallel communication port
14) Current sharing port
15) Intelligent slot
16) DC switch
17) Cold start button
